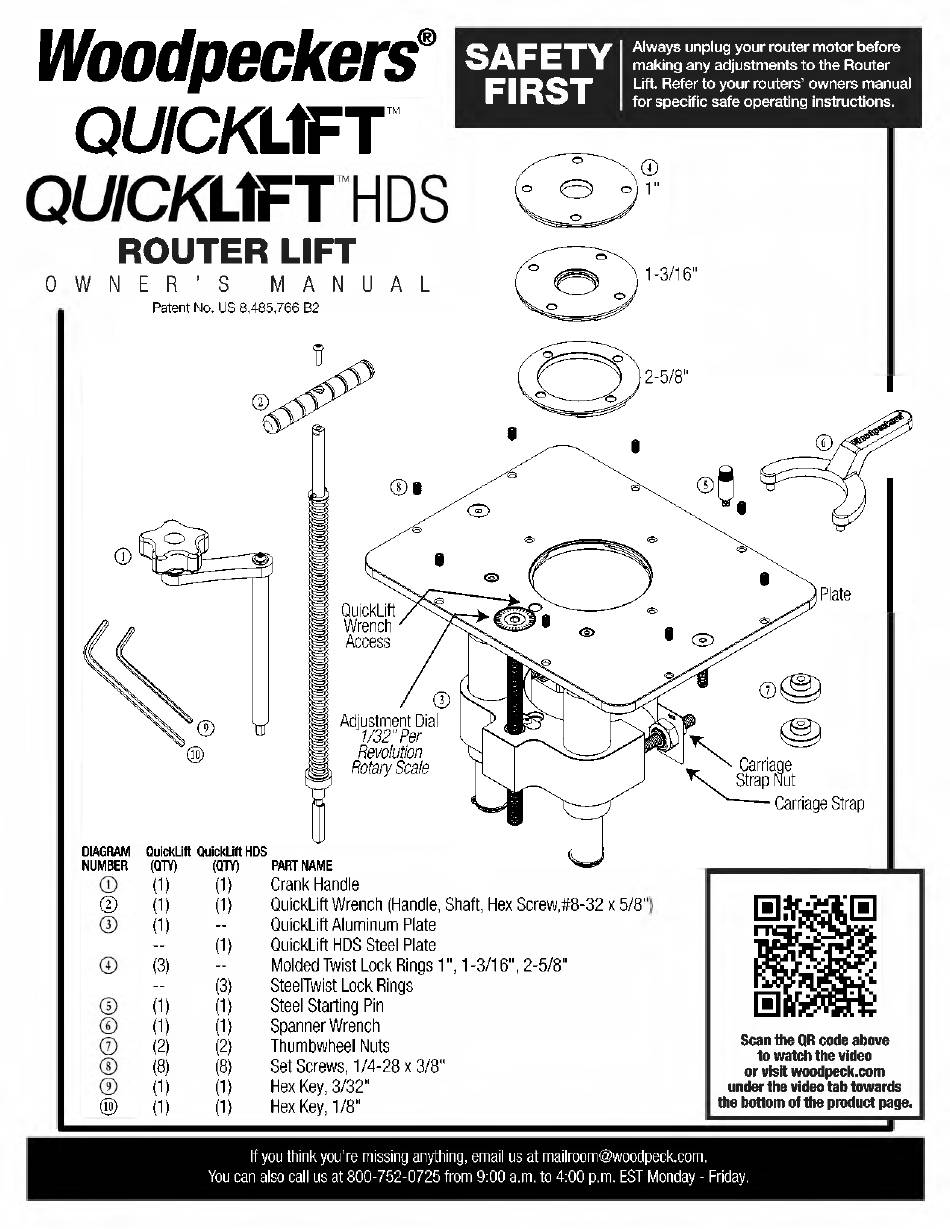

Woodpeckers QUICKLIFT Owner's Manual

lways unplug your router motor before
making any adjustments to the Router
Lift. Refer to your routers ' owners manual
for specific safe operating instructions.
Patent No. US 8,485,766 B2
can the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
DIAGRAM
NUMBER
QuickLift
(QTY)
QuickLift HD
(QTY)
PART NAME
(1) (1)
Crank Handle
(1) (1)
QuickLift Wrench (Handle, Shaft, Hex Screw, #8-32 x 5/8"
(1)
0
QuickLift luminum Plate
--
(1)
QuickLift HDS Steel Plate
(3)
0
Molded Twist Lock Rings 1 ", 1 -3/ 16 ", 2-5/8"
--
(3)
SteelTwist Lock Rings
(1) (1)
Steel Starting Pin
(1) (1)
Spanner Wrench
(2) (2)
Thumbwheel Nuts
(8) (8)
Set Screws, 1/4-28 x 3/8"
(1) (1)
Hex Key, 3/32"
(1) (1)
Hex Key, 1/8"
AFETY
FIR T
ROUTER LIFT
OWNER ' S M NU L
