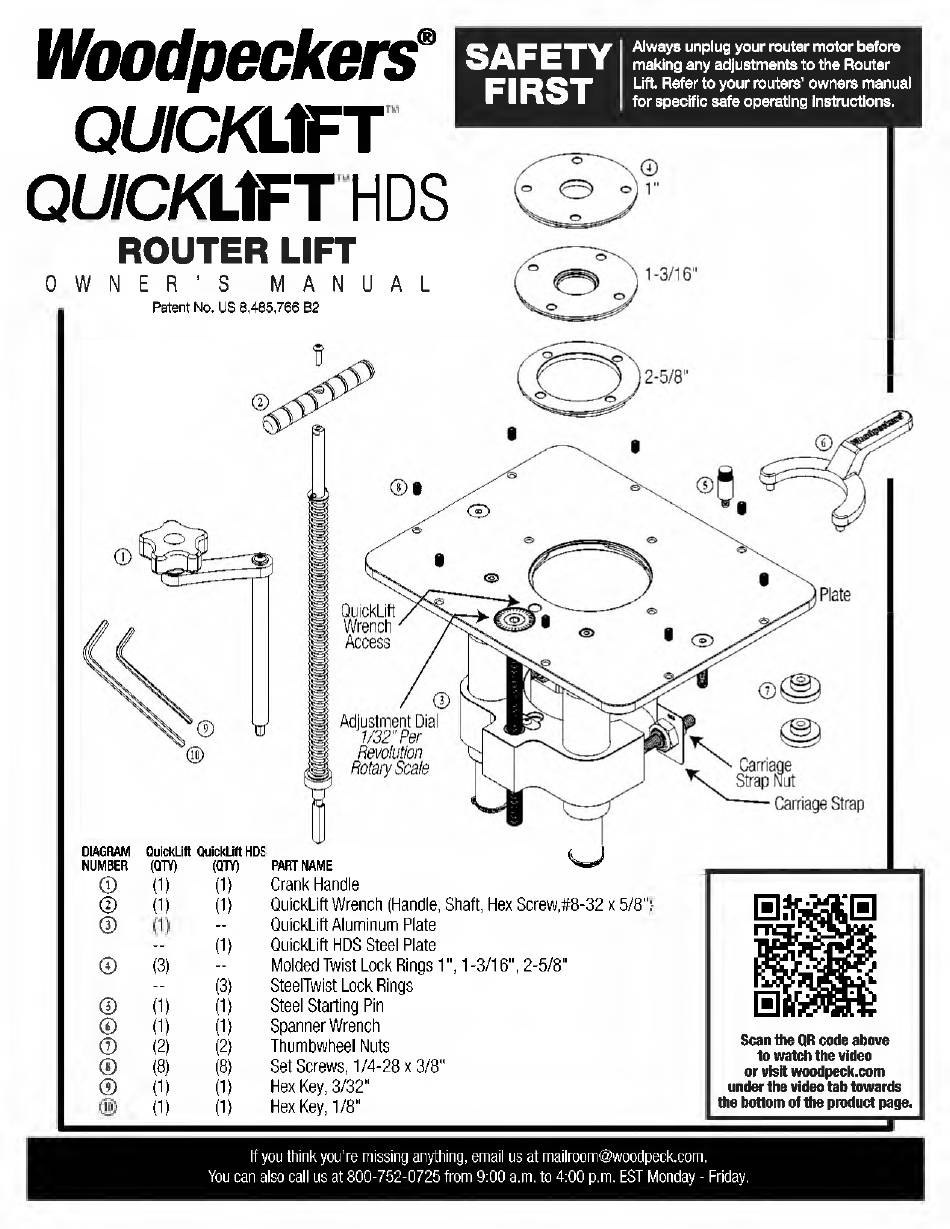

Woodpeckers QUICKLIFT Owner's Manual

oodpeckers
U I CKL I FT
UI CKL I FT - H DS
AFETY
FIR T
Always unplug your router motor before
making any adjustments to the Router
Lift Refer to your routers ' owners manual
for specific safe operating instructions.
ROUTER LIFT
WNER ' S MANUAL
Patent No. US
8,485,766
B2
DIAGRAM
NUMBER
QuickLift
(QTY)
QuickLift HD
(QTY)
PART NAME
1
(1)
(1)
Crank Handle
2
(1)
(1)
uickLift Wrench (Handle, Shaft, Hex Screw, #8-32 x 5/8" )
3
(1)
--
uickLift Aluminum Plate
--
(1)
uickLift HDS Steel Plate
4
(3)
--
Molded Twist Lock Rings 1", 1 -3/16", 2-5/8"
--
(3)
SteelTwist Lock Rings
5
(1) (1)
Steel Starting Pin
6
(1) (1)
Spanner Wrench
7
(2) (2)
Thumbwheel Nuts
8
(8) (8)
Set Screws, 1/4-28 x 3/8"
9
(1) (1)
Hex Key, 3/32"
10
(1)
(1)
Hex Key, 1/8"
can the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
