I LOCK IT PRO Operating Instructions Manual

Smart security for your bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Smart security for your bike
OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for I LOCK IT PRO

Summary of Contents for I LOCK IT PRO

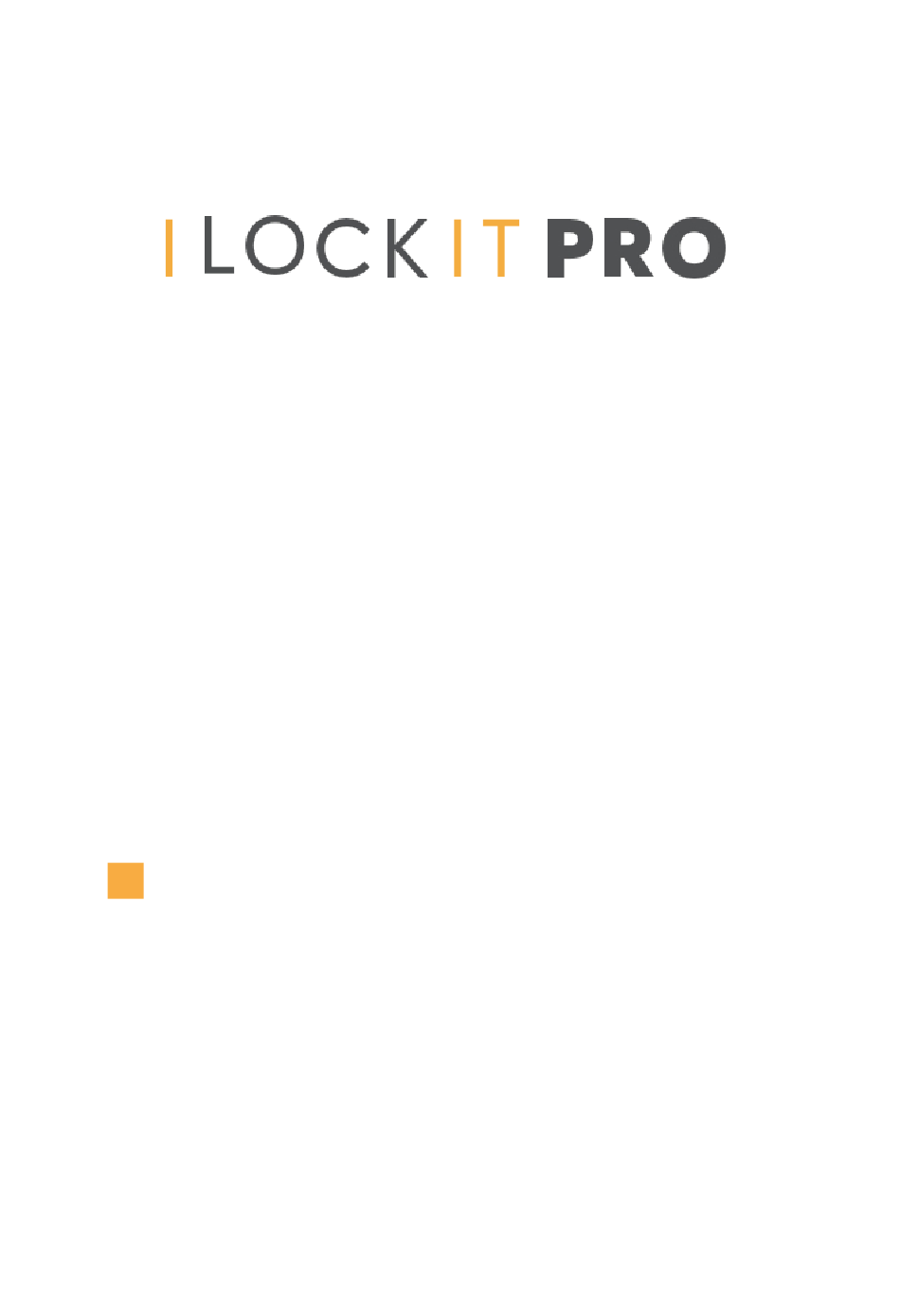

  • Page 1 Smart security for your bike OPERATING INSTRUCTIONS...

  • Page 2: Table Of Contents

    1.2. Technical data 1.3. Operating elements and connections 2. COMMISSIONING 2.1. Charging the battery 2.2. Setting up the I LOCK IT app 2.3. Mounting on the bike 3. OPERATION 3.1. Open I LOCK IT Pro 3.2. Close I LOCK IT Pro 3.3.
  • Page 3 4. ACCESSORIES 4.1. I LOCK IT key fob 4.2. I LOCK IT plug-in cable|plug-in chain 5. MAINTENANCE AND CARE 5.1. Cleaning 5.2. Battery life and low battery level 5.3. Restore factory settings 6. FURTHER INFORMATION 6.1. Optical signals 6.2. Acoustic signals...
  • Page 4 GENERAL NOTES AND INFORMATION FOR YOUR INFORMATION The information in this document is subject to change without notice and does not represent a commitment on the part of haveltec GmbH. No part of these operating instructions may be reproduced, transmitted in any form or by any means, electronic, mechanical, photocopying or recording, without the prior written permission of haveltec GmbH.
  • Page 5 CONTACT If you have any questions, suggestions or criticism, please contact our service department: haveltec GmbH Friedrich-Franz-Strasse 19 14770 Brandenburg Germany E-MAIL: www.ilockit.bike/kontakt www.ilockit.bike/hilfe WEB: GENERAL NOTES AND INFORMATION...
  • Page 6 BASIC SAFETY INFORMATION INTENDED USE I LOCK IT Pro serves as a bicycle lock for locking the rear wheel. I LOCK IT Pro is controlled via a Bluetooth connection to a smartphone that has the I LOCK IT app installed or to a I LOCK IT key fob.
  • Page 7 DEFINITION You will find the following signal terms in these instructions: This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury. This symbol indicates a hazard with a low level of risk which, if not avoided, may result in minor or moderate injury.
  • Page 8 • Never open the housing of the plug-in power supply. • The housing of I LOCK IT Pro must never be unscrewed or modified. • Unplug the mains adapter from the socket if there is a risk of thunderstorms.
  • Page 9 • Do not place any open sources of fire such as burning candles or similar on or directly next to I LOCK IT Pro. • If the housing is defective, stop using I LOCK IT Pro and keep it out of the reach of children.
  • Page 10 • Min. 0 °C ambient temperature • Max. 30 °C ambient temperature The use of I LOCK IT Pro can lead to accidents or malfunctions in certain locations. • Do not use I LOCK IT Pro in potentially explosive atmospheres.
  • Page 11 Do not bring I LOCK IT Pro close to your hearing or activate it. • I LOCK IT Pro may only be fitted to the rear wheel. • Mounting on motorcycles such as scooters, motorcycles or S-pedelecs (pedelecs with up to 45 km|h assistance) is not permitted.

  • Page 12: Overview

    1. OVERVIEW 1.1. SCOPE OF DELIVERY The following accessories are included with I LOCK IT Pro: • USB-C cable • Mounting screws with washers • Battery (already pre-installed in I LOCK IT Pro) • Operating instructions • Quickstart Guide 1.2. TECHNICAL DATA •...

  • Page 13: Operating Elements And Connections

    1.3. OPERATING ELEMENTS AND CONNECTIONS I LOCK IT Button Cover for USB-C Charging port Mounting openings Product label Port for extensions Locking bolt with integrated spoke evasion system OVERVIEW...

  • Page 14: Commissioning

    2. COMMISSIONING 2.1. CHARGING THE BATTERY Before using your I LOCK IT Pro for the first time, you should fully charge the battery. To do this, carry out the following steps: Open the USB-C cover on the right-hand side of I LOCK IT Pro.
  • Page 15 IV. As soon as I LOCK IT Pro is fully charged, you can remove the USB-C cable and close the USB-C cover again. If the battery reaches a low charge level, an acoustic warning tone is emitted each time the lock is opened.

  • Page 16: Setting Up The I Lock It App

    2.2. SETTING UP THE I LOCK IT APP Once fully charged, you can connect your I LOCK IT Pro to your smartphone. The following steps can only be carried out when setting up a smartphone for the first time. If another smartphone or a key fob is to be set up, please follow the steps in chapter 3.6.
  • Page 17 IT app. II. Then install and start the app on your smartphone. III. Register in the I LOCK IT app and activate your account. IV. Log in with your account. V. Follow the further instructions in the app to set up your I LOCK IT Pro.
  • Page 18 When you first set up I LOCK IT Pro with the I LOCK IT app, you define your personal color code. This is used to open I LOCK IT Pro if there is no Bluetooth connection to the smartphone or hand-held transmitter and should not be passed on to third parties.
  • Page 19 • You can manage several different I LOCK IT with the I LOCK IT app. • In the I LOCK IT app, you can select which I LOCK IT you want to connect to. Individual configurations can also be made.

  • Page 20: Mounting On The Bike

    2.3. MOUNTING ON THE BIKE I LOCK IT Pro is firmly attached to the seat stays of your bike. I LOCK IT Pro has four different openings for mounting. Through these openings I LOCK IT Pro must be mounted at the optimum height.
  • Page 21 Guide I LOCK IT Pro over your mudguard|tyre. II. Screw I LOCK IT Pro to the bike frame hand-tight using an Allen key (3 Nm). Use the supplied mounting screws for this. Our I LOCK IT channel at www.youtube.de provides a video on the subject of installation.
  • Page 22 ASSEMBLY FOR BICYCLES WITHOUT THREADED BUSHES If your bike does not have threaded bushes for mounting I LOCK IT Pro, then I LOCK IT Pro can be mounted easily and securely with the optionally available installation adapters. To do this, carry out the following steps: The installation adapters have flexible screw mounts that can be adjusted laterally.
  • Page 23 VI. Guide I LOCK IT Pro over your mudguard|tyre. VII. Screw I LOCK IT Pro to the threaded sockets of the installation adapter using an Allen key hand-tight (3 Nm). Use the mounting screws supplied with I LOCK IT Pro for this.

  • Page 24: Operation

    I LOCK IT Pro offers several options for opening: AUTOMATIC OPENING If automatic opening is activated in the settings, I LOCK IT Pro opens automatically as soon as you come close to it. The distance at which I LOCK IT opens can be configured in different levels via the app.
  • Page 25 OPEN AT THE TOUCH OF A BUTTON In addition to automatic opening, I LOCK IT Pro can be opened by briefly pressing the I LOCK IT Pro button. After successful opening, the button lights up green and your journey can begin.
  • Page 26 I LOCK IT Pro, then the color code entry starts. OPEN VIA SMARTPHONE Another option is to open your I LOCK IT Pro via the I LOCK IT app. To do this, press the "Open I LOCK IT" button on the app home screen or click directly on the lock graphic.
  • Page 27 III. Repeat the process for all 6 colors. After entering the correct color code, I LOCK IT Pro opens. If an incorrect code is entered, the LED flashes red and you can then start a new color code entry.

  • Page 28: Close I Lock It Pro

    CLOSE AT THE TOUCH OF A BUTTON I LOCK IT Pro can be closed by pressing a button. To do this, press the I LOCK IT Pro button twice in quick succession. The button then briefly lights up red.
  • Page 29 CLOSE VIA SMARTPHONE You can also close your I LOCK IT Pro using the I LOCK IT app. To do this, press the "Close I LOCK IT" button on the home screen or click directly on the lock graphic. Before the locking process, I LOCK IT Pro emits an acoustic signal to indicate that it is about to be locked.
  • Page 30 I LOCK IT Pro reliably secures your bike. In individual cases it can nevertheless occur that I LOCK IT Pro is blocked when locking and moves back again. In this case, the lock emits an acoustic signal (if the warning tones are activated) and you receive a message in the I LOCK IT app or via the key fob.

  • Page 31: Smart Alarm

    3.3. SMART ALARM If the theft alarm is activated in the I LOCK IT settings and your I LOCK IT Pro is locked, I LOCK IT Pro triggers an audible alarm as soon as your bike is lifted and moved.
  • Page 32 If you are within Bluetooth range of your I LOCK IT Pro, you can deactivate the audible alarm before the 30 seconds have elapsed by pressing the "All ok" button. You will only receive an alarm message on your smartphone or by e-mail if I LOCK IT Pro is not...

  • Page 33: Gps Tracking

    If a theft alarm is triggered on your bike, I LOCK IT automatically activates the GPS tracking function. You can now use the I LOCK IT app to track the current location of your I LOCK IT. As soon as your bike is not moved for a longer period of time, I LOCK IT deactivates the GPS functionality again to save energy.
  • Page 34 SIGNAL TONE FUNCTION With the signal tone function, you can trigger a short tone on your I LOCK IT via the I LOCK IT app. This helps you to find your I LOCK IT when you are nearby. - To be able to use the signal tone function, your I...
  • Page 35 In these situations, the proximity function can help you to locate your bike. As soon as your I LOCK IT Pro is within Bluetooth range, the proximity screen in the I LOCK IT app shows you whether you are currently approaching your bike or traveling in the opposite direction.

  • Page 36: Share Authorization

    To lend your bike equipped with I LOCK IT Pro to friends or family, you can create and share a color code in the I LOCK IT app. This color code allows you to open I LOCK IT Pro without having to install the I LOCK IT app on another smartphone.

  • Page 37: Pairing A New Smartphone|Key Fob

    I LOCK IT Pro. To connect another device to I LOCK IT Pro, it is necessary to set I LOCK IT Pro to set-up mode. Only in this mode can a new device establish a connection to I LOCK IT Pro.
  • Page 38 START SETUP MODE VIA THE I LOCK IT APP To set your I LOCK IT Pro to set-up mode via the I LOCK IT app, carry out the following steps: Open the I LOCK IT app on the smartphone you have already set up.
  • Page 39 START SETUP MODE VIA THE KEY FOB To set your I LOCK IT Pro to set-up mode via a connected key fob, carry out the following steps: Make sure that the key fob is connected to your I LOCK IT Pro.
  • Page 40 I LOCK IT Pro is active. The following steps do not work with a color code created for sharing. II. Wait until I LOCK IT Pro is open and the button lights up green. III. Press the I LOCK IT Pro button and keep it pressed until it lights up blue.
  • Page 41 III. As soon as the I LOCK IT Pro button lights up blue for 5 seconds and the app confirms successful pairing, the new smartphone is also connected to I LOCK IT. • You can manage various I LOCK IT with the I LOCK IT app.

  • Page 42: Acoustic Signals

    As soon as the key fob LED and the I LOCK IT Pro button light up blue for 5 seconds, a permanent connection has been established between the key fob and I LOCK IT Pro. The key fob must be in the factory settings for this.
  • Page 43 A short acoustic tone is emitted to inform the user that the lock is about to be closed. This sound can be activated and deactivated using the slide control in the I LOCK IT app. If this function is deactivated, there is no acoustic signal before locking.

  • Page 44: Accessories

    4. ACCESSORIES The following accessories can be purchased in addition to I LOCK IT Pro: • Key fob • Plug-in cable • Plug-in chain • Installation adapter • Smartphone holder If you are interested in other accessories, please visit our online store at www.ilockit.bike.

  • Page 45: I Lock It Key Fob

    4.1. I LOCK IT KEY FOB The key fob allows you to use your I LOCK IT Pro without a smartphone. You can use the key fob and the Smartphone in parallel, a simultaneous Bluetooth connection of both devices with I LOCK IT Pro is possible.
  • Page 46 III. Click on " Pair key fob". IV. Confirm the message. V. Your I LOCK IT Pro is now in set-up mode and the I LOCK IT button flashes blue. VI. Press the button on the key fob. VII. The key fob LED starts flashing blue.
  • Page 47 Briefly pressing the key fob button establishes a connection between the key fob and the configured I LOCK IT Pro (if within range). As soon as the connection is established, the key fob LED lights up blue for 5 seconds and an opening or locking process takes place immediately.
  • Page 48 MAINTENANCE BATTERY LEVEL AND BATTERY REPLACEMENT As soon as the battery level of your key fob reaches a critical level, the key fob LED starts flashing red. When this happens, the battery should be replaced to ensure continued reliable operation. Carry out the following steps to replace the key fob battery: Open the battery cover.
  • Page 49 RESTORE FACTORY SETTINGS If the key fob is reset to factory settings, the connection between I LOCK IT Pro and the key fob is deleted. The key fob can then be connected to a new I LOCK IT Pro. The following steps must be carried out to reset the key fob to the factory settings: Open the battery cover and remove the battery.

  • Page 50: I Lock It Plug-In Cable|Plug-In Chain

    I LOCK IT Pro and make sure that it is firmly seated. As soon as I LOCK IT Pro detects that an extension has been inserted, it automatically performs a locking process. Your extension and your bike are locked automatically.
  • Page 51 • It is possible to insert the cable|chain into an already locked I LOCK IT Pro. The extension is then locked automatically. ACCESSORIES...

  • Page 52: Maintenance And Care

    5. MAINTENANCE AND CARE 5.1. CLEANING I LOCK IT Pro is insensitive to splashing water and can be cleaned with a damp cloth or sponge. To ensure reliable operation, dirt should also be regularly removed from the locking bar. • Cleaning with a high-pressure cleaner is not permitted and can lead to damage to I LOCK IT Pro.
  • Page 53 • If I LOCK IT Pro runs out of power, it stops functioning and remains in its last state. • Opening|closing and the alarm function are not possible when the battery is exhausted. • By connecting a charger or a power bank, I LOCK IT Pro is immediately ready for use again and can be opened or closed.

  • Page 54: Restore Factory Settings

    5.3. RESTORE FACTORY SETTINGS To restore the factory settings of your I LOCK IT Pro, carry out the following steps: Open the I LOCK IT app and make sure that the connection to your I LOCK IT Pro is active.

  • Page 55: Further Information

    The I LOCK IT Pro button serves as a visual indicator that can display various statuses. The following signals are displayed. BLUE LED FLASHES • If the blue light flashes continuously, I LOCK IT Pro is in set- up mode: A new connection to your I LOCK IT Pro can be established.
  • Page 56 GREEN LED LIGHTS UP • During opening process: I LOCK IT Pro was opened successfully. • When pressed: Color code input starts with 1st color RED LED LIGHTS UP • During locking process: I LOCK IT Pro has been successfully locked.

  • Page 57: Acoustic Signals

    6.2. ACOUSTIC SIGNALS In addition to the visual signals, I LOCK IT Pro has several acoustic signals, which are explained below. 1 - TIMES SOUND • Announcement that I LOCK IT Pro is starting to close. 3 - TIMES SOUND •...
  • Page 58 3 - TIMES SHORT SOUND • The smart alarm was activated by movement and the pre-alarm was triggered. SUSTAINED ACOUSTIC SOUND • The theft alarm was triggered by movement. FURTHER INFORMATION...
  • Page 59 6.3. PROBLEM ASSISTANCE If you experience any problems with your I LOCK IT Pro, please contact our customer service team. We are available by phone or email and will be happy to help you. You can also find help for various situations on our website www.ilockit.bike/hilfe.
  • Page 60 www.ilockit.bike/kontakt E-MAIL: www.ilockit.bike/hilfe WEB:...
