Controller Client CTR-52
Installation & Set-up
1. Introduction
The 4-channel LED Controller CTR-52 by MBJ Imaging can be controlled either directly via ModBus TCP or via the easy-to-use CTR-
52 for Windows. These instructions help you to install the and then put the CTR-52 into operation.
For set-up via ModBus TCP please download the definitions and infos from the MBJ Imaging website here.
2. Installation & Set-up
2.1. Installing the client
a.
Download the latest CTR-52 installer from MBJ Imaging website. (Download here)
b.
The .zip-file includes:
1.
InstallerCTR52Client_X.X.X.X.msi and
2.
Functions_and_Examples.py
(Functions_and_Examples.py is only necessary if you want to implement a command routine with python.)
c.
If existing uninstall older version of the CTR-52 client.
d.
For an easy configuration please install the client by double-clicking on the "InstallerCTR52Client_X.X.X.X.msi".
e.
Program files will be saved to: C:\Program Files\MBJ Imaging\CTR-52
2.2. Starting the client
a. Find the CTR-52 client under your installed programs.

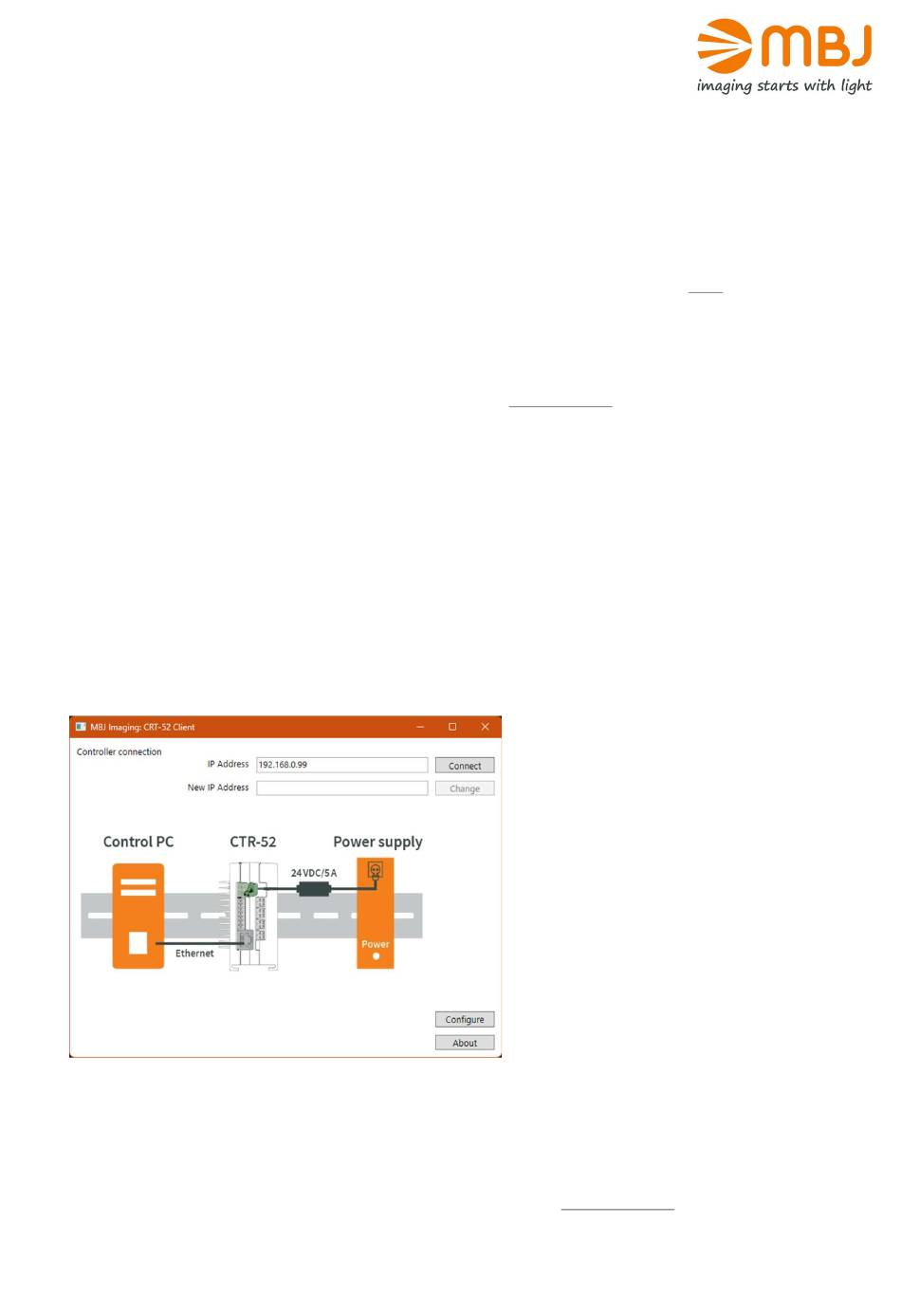

b. The initial window shows:
c. Set up the CTR-52 as shown in the graphic (connect to control pc and power supply).
Note: Any LED-Light you wish to control via the CTR-52 should be connected BEFORE connecting the controller to the power
supply. Only LEDs that are connected during the startup process are detected by the CTR-52.
d. The default IP Address of the CTR-52 is 192.168.0.99.
Note: If you choose to change the IP address for the CTR-52 be careful to remember the new address, otherwise you may not
be able to reconnect to the CTR-52. If that is the case reset the CTR-52, see: Trouble Shooting
MBJ Imaging GmbH | Jochim-Klindt-Straße 7 | 22926 Ahrensburg | Germany
Tel.: +49 4102 778 90 31 | www.mbj-imaging.com
Page 1 of 8

Advertisement

loading
Need help?

Need help?

Do you have a question about the CTR-52 and is the answer not in the manual?

Questions and answers

Related Manuals for mbj CTR-52

Summary of Contents for mbj CTR-52

  • Page 1 The default IP Address of the CTR-52 is 192.168.0.99. Note: If you choose to change the IP address for the CTR-52 be careful to remember the new address, otherwise you may not be able to reconnect to the CTR-52. If that is the case reset the CTR-52, see: Trouble Shooting MBJ Imaging GmbH | Jochim-Klindt-Straße 7 | 22926 Ahrensburg | Germany...
  • Page 2 Before connecting to the CTR-52 please make sure that your PC is in the same IP address range. Go to your network configuration of the hardware device which you want to connect the CTR-52 to and configure the IPv4 to an IP address within the right range.
  • Page 3 If the problem remains: Change ethernet-cable Reset the CTR-52, see: Trouble Shooting 4. Configuring the CTR-52 a. Click on “Configure”. MBJ Imaging GmbH | Jochim-Klindt-Straße 7 | 22926 Ahrensburg | Germany Tel.: +49 4102 778 90 31 | www.mbj-imaging.com Page 3 of 8...

  • Page 4: General Configuration

    By clicking on the register “General” you can set up the overall configuration and mode of the CTR-52. a. General | Detected: “Detected” shows on which channel the CTR-52 has detected an LED. In this case it detected two LED’s – on Channel 1 and 3.
  • Page 5 If clicking on this button you will receive the current status of all the trigger input channels. E.g.: You want to check, if the trigger you send via camera is active and processed by the CTR-52. If a trigger is received it is interpreted as a logical 1 –...
  • Page 6 Live voltage is the currently measured voltage drop over the LED. Last flash duration is the pulse length resulting from the last processed trigger. MBJ Imaging GmbH | Jochim-Klindt-Straße 7 | 22926 Ahrensburg | Germany Tel.: +49 4102 778 90 31 | www.mbj-imaging.com...

  • Page 7: Troubleshooting

    Click on “Factory reset CTR-52” 1.2. via Hardware A reset via hardware reset might be necessary if the CTR-52 cannot be controlled via so ware client – for example if the IP address is unknown (a er manual change of the CTR-52 IP address).

  • Page 8: Installation And Setup

    Controller Client CTR-52 Installation & Set-up Note: The CTR-52 can only be reset using the hardware reset button during startup. 6. History Version Date Changes 28.05.2024 Initial version. MBJ Imaging GmbH | Jochim-Klindt-Straße 7 | 22926 Ahrensburg | Germany Tel.: +49 4102 778 90 31 | www.mbj-imaging.com...
