Voyager DVR
Pillar drill
USER MANUAL
Model: 58003 (EU model)
500-15-902, ENG
Original user manual
All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the nova Voyager DVR and is the answer not in the manual?

Questions and answers

Summary of Contents for Teknatool nova Voyager DVR

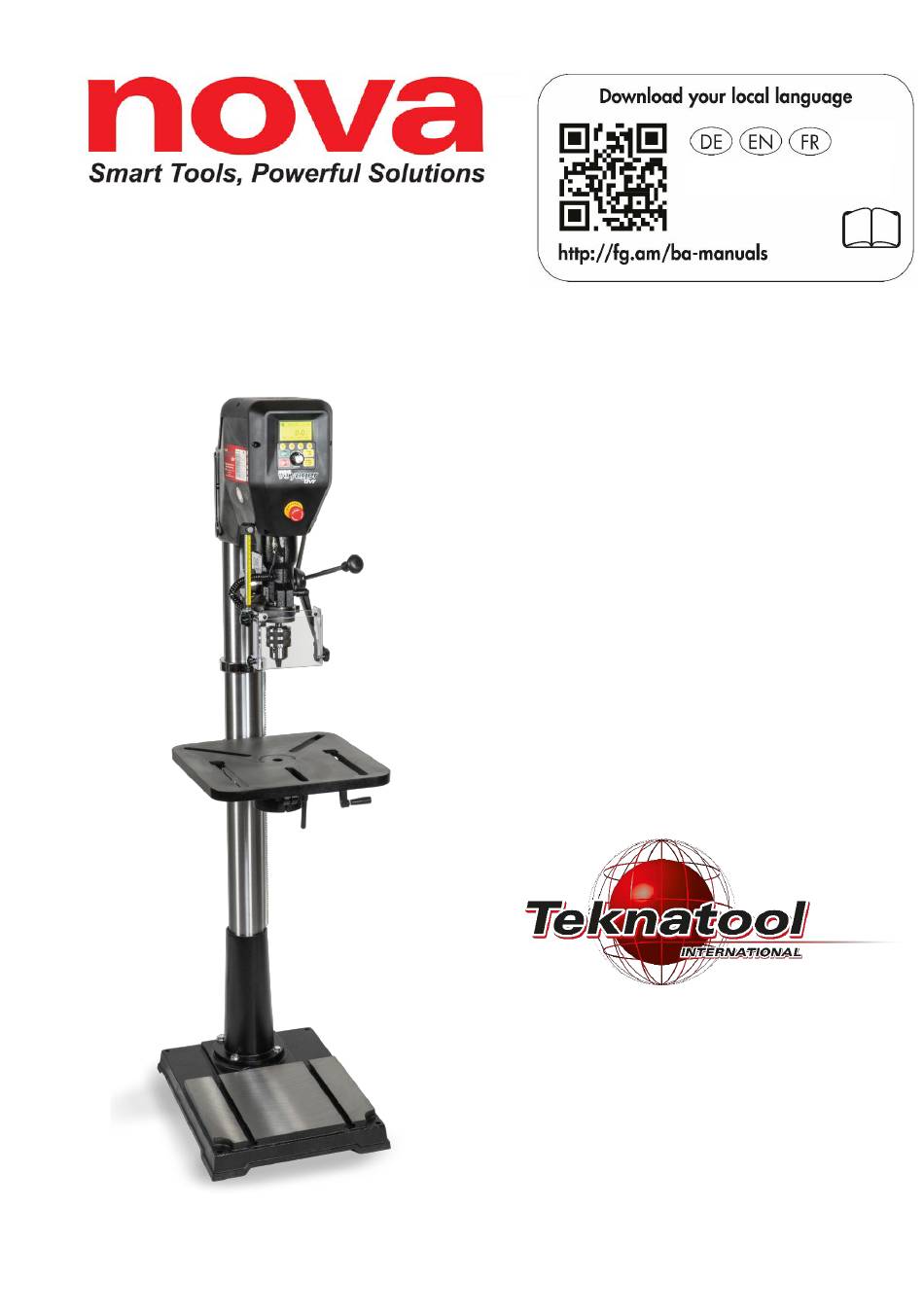

  • Page 1 Voyager DVR Pillar drill USER MANUAL Model: 58003 (EU model) 500-15-902, ENG Original user manual All rights reserved.
  • Page 2 CONTACT Worldwide (except USA) Teknatool International Ltd. Telephone: (+64) 9 477 5600 Email: service@teknatool.com Website: www.teknatool.com Europe Felder KG KR-Felder-Straße 1 6060 Hall in Tirol Austria Telephone: +43 (0) 5223 5850 0 E-Mail: info@felder-group.com Website: www.felder-group.com Original user manual...
  • Page 3: Table Of Contents

    12 | Noise emissions ................................. 9 13 | Pictograms, signs and labels ............................10 14 | Features of the NOVA Voyager DVR ........................... 11 15 | Transport package content ............................12 16 | Assembling and adjustment of the pillar drill ......................13 17 | Connection to the power supply ..........................
  • Page 4: Symbol Legend

    1 | Symbol legend Damage and/or danger to persons, Wear eye protection Important information machine, material, or environment Do not dispose together with Wear ear protection Environmentally hazardous substances domestic waste Immediate health hazards and serious Wear protective footwear injuries Notes on using the operating Wear respiratory protection instructions...
  • Page 5: Basic Health And Safety Instructions For Power Tools

    7 | Basic health and safety instructions for power tools Note: Failure to read and observe these operating instructions may result in serious injury. As with all machinery, operating a pillar drill can lead to dangerous situations. Careful use and handling can significantly reduce the risk of injury.
  • Page 6: Health And Safety Instructions For Pillar Drills

    If dust extractors and collectors can be attached, ensure these are connected and used properly. Using a dust extractor can reduce dust-related hazards. Do not let familiarity gained from frequent use of the power tool allow you to become careless and ignore tool safety principles.
  • Page 7 Familiarise yourself with the machine before using it for the first time. If you are not familiar with the functions of a pillar drill, get professional support. An instruction by an experienced and trained person is strongly recommended. Minimum age. The minimum age requirement of the operator of the machine is 16 years. Residual risks.
  • Page 8: Safety Devices

    Chuck guard Your NOVA VOYAGER DVR pillar drill is equipped with a chuck guard. As soon as the cover is opened, the safety device is triggered and it is no longer possible to operate.
  • Page 9: Operation And Storage Conditions

    11 | Operation and storage conditions Operating/room temperature +5° to +40°C Storage / transport temperature -25° to +55°C Humidity (non-wetting) 30 - 90 % | Noise emissions Measurement in accordance with EN ISO 19085-1:2021 annex F: Measurement conditions / additional information according to EN ISO 19085-1:2021, appendix F with ISO 11202 for the emission noise pressure with accuracy level 3 and ISO 3744 for the acoustic power with accuracy level 3 Idle...
  • Page 10: Pictograms, Signs And Labels

    | Pictograms, signs and labels Number Description Warning instruction Technical Information Machine data plate Original user manual...
  • Page 11: Features Of The Nova Voyager Dvr

    14 | Features of the NOVA Voyager DVR A belt drive usually has a 2 HP DVR Smart Digital Motor delivers power loss of around correct speed and power to maintain 20%. Direct drive power and optimal torque to the drill head.
  • Page 12: Transport Package Content

    15 | Transport package content Number Description Order number Headstock 8338055 Column 8338028 Plinth 8338025 Work table 8338046 Table arm 8338054 Crank handle arm for table adjustment 8338036 Clamping lever 8338032 Quill driving handle 8338009 Hex key (3x) AK4, AK5, AK6 Crank handle for table adjustment 8338037 Spanner...
  • Page 13: Assembling And Adjustment Of The Pillar Drill

    16 | Assembling and adjustment of the pillar drill Attention! Assemble the NOVA Voyager DVR pillar drill with the help of a second person to prevent possible injury. Read the operating instructions before assembly. Do not connect the pillar drill to the power supply until it is fully assembled.
  • Page 14 7. Slide the table arm with the mounted rack from above onto the column and insert the bottom of the rack into the mating groove in the column base. 8. Slide the top ring from above over the rack ensuring that the groove on the ring that serves as the guide for the rack is facing down.
  • Page 15 Mounting the drill chuck and chuck arbour Chuck key Chuck arbour Chuck Taper drift 1. Before mounting the chuck, clean the chuck arbour Morse taper carefully to make sure it is free of grease and dirt. 2. Insert the chuck arbour into the drill chuck. Use a plastic mallet if necessary. 3.
  • Page 16 Quill lock 1. To lock the quill at a certain depth, pull the quill down to the desired position. 2. Tighten the clamping lever by turning it clockwise until the quill is locked. If the quill cannot be locked even though the clamping lever is fully tightened, proceed as follows: a.
  • Page 17: Connection To The Power Supply

    17 | Connection to the power supply Attention! • An improper power connection may result in an electric shock. • The machine may only be operated on TN networks (with earthed neutral conductor). • To protect against electric shock, the operator must ensure that the machine is equipped with a protective device (residual current circuit breaker).
  • Page 18: Operating The Pillar Drill

    Insert the plug into the socket and turn on the pillar drill by switching the rocker switch to “I”. As soon as the NOVA Voyager DVR pillar drill has been switched on, the product name and logo will be displayed on the LCD screen followed by any warning messages.
  • Page 19 Display elements on home screen TIF: GES: User set depth Predefined speed (default #2D) - - - mm: Appears in the top centre Current vertical position of when the reverse mode is quill activated. Controls ZERO / Confirm: Set zero point / Confirm Start / Reset adjustment OFF:...
  • Page 20 Use the dial to change the speed when the machine is running or stopped. Turn the dial in the clockwise direction to increase the speed. Turn the dial in the anti-clockwise direction to decrease the speed. By simply turning the dial you will make a coarse adjustment. Press and turn the dial simultaneously to make a fine adjustment.
  • Page 21: User Interface

    20 | User interface Running the pillar drill Depending on the selected pre-settings, in idle mode the display shows information such as set speed, current speed, direction of rotation and drilling depth. When the display shows that the pillar drill is ready to start, press the <ON> button to start the motor. Press the <OFF>...
  • Page 22 <Speed Chart> After selection of the drill bit type, drill bit size and workpiece material, the integrated speed chart enables your NOVA Voyager DVR pillar drill to determine a recommended speed and set it automatically. Note: The speed chart is available in both metric and imperial units. Select menu item <Configurations>...
  • Page 23 Note: • After activation of the self-start function via the menu, the quill has to be raised once to the top position before the first self-start begins. • If the user is in the menu while the machine is idle, the machine will not start automatically, but it will stop automatically when the stop point is reached.
  • Page 24 2. <Chip Breaker>: This mode uses the load sensor to determine when tapping has been started and when a chip breaking cycle has to be entered. After a fixed amount of time, the machine changes the direction of rotation in order to break the chip for a fixed amount of time.
  • Page 25 <Configuration> <Interface Settings> <Units> This is to switch between metric and imperial units of measurement. <SET Mode> This is to choose between standard and precision mode. <Fraction Display> This is to choose options for the inch unit fraction display. <Digital Depth Stop> This is to choose from a list how the machine should behave when the set drilling depth is reached.
  • Page 26 The firmware version can be upgraded using a USB cable and a PC with internet access. The latest firmware version is available on the manufacturer's site www.teknatool.com. Regular updates offer new features and software improvements and as such enhance the performance of your machine.
  • Page 27: Care And Maintenance

    21 | Care and maintenance Regular care and maintenance are essential for the long-term use of your pillar drill. Danger! Always disconnect the pillar drill from the power source before carrying out any maintenance procedure. Maintenance after each use 1. Clean the work area and the pillar drill. 2.
  • Page 28: Recommended Speeds

    23 | Recommended speeds The values in the table below are reference values. Depending on the material, tool and experience of the user, the actually needed speeds may vary. *Fields highlighted in red are not recommended areas* Material Hardwoo Glass / Tool diameter Soft wood Acrylic...
  • Page 29: Troubleshooting

    24 | Troubleshooting Mechanical issues Symptom Where to check How to resolve The attached 1. Inner side of the spindle taper The solution depends on where the run-out is tool does not 2. Tool, arbour tapers detected: run true. 3. Chuck 1.
  • Page 30 If an error message is displayed and the pillar drill can no longer be used, please contact your dealer or customer service. At best, you already have your invoice with the date of purchase (start of warranty) at hand. You can also contact the NOVA customer service directly: service@teknatool.com (written in English). Original user manual...
  • Page 31: Guarantee Conditions

    25 | Guarantee conditions Teknatool grants an additional manufacturer's warranty on this product from the date of purchase: 5 years on mechanical parts (excluding labour hours after 2 years) and 2 years on electrical parts. If defects in material or workmanship occur during the intended use of the product, please contact your dealer.
  • Page 32: Exploded Diagram - Headstock

    26 | Exploded diagram - headstock Original user manual...
  • Page 33: Exploded Diagram - Stand And Table

    27 | Exploded diagram – stand and table Version 2024...
  • Page 34: Parts List - Pillar Drill

    28 | Parts list - pillar drill Pos. Partnumber Description Pos. Partnumber Description C05016 Cylinder screw M5x16 8339026 Control panel 8330355 Upper cover 8338021 Emergency stop switch C08040 Cap screw M8 C05020 Cheese head screw Socket head M5x20 55431 Location pin 52003 Fan encoder 8338023...
  • Page 35: Wiring Diagram

    29 | Wiring diagram Version 2024...
  • Page 36: Declaration Of Conformity

    Distributor Felder KG KR-Felder-Straße 1 6060 Hall in Tirol Product designation NOVA VOYAGER DVR pillar drill Technical description model 15“ / 16“ / 18“ / 20“ / 22“ DVR pillar drill Manufacturer Teknatool International Ltd. The following EC guidelines were applied:...
  • Page 37 NOVA VIKING DVR pillar drill Technical description model 15“ / 16“ / 18“ / 20“ / 22“ DVR Pillar drill Manufacturer Teknatool International Ltd. The following EC guidelines were applied: S.I. 2008/1597 - Supply of Machinery (Safety) Regulations 2008 S.I. 2016/1091 - Electromagnetic Compatibility Regulations 2016 This EG Declaration of Conformity is valid only if the UKCA label has been affixed to the machine.
