Wall Mount Installation Guide
OLED88Z2PUA
Printed in Korea
• Warning: The Power Box can only be installed on a wall by a professional installer
using Wall Mount Brackets (LSW640, OLW480) sold separately by LG Electronics.
• If you need accessories such as rubber pads and ferrite cores, please contact
LG CI support. (Email : custominstall@lge.com, Tel : 833-288-8397)
• Be careful not to damage the product.

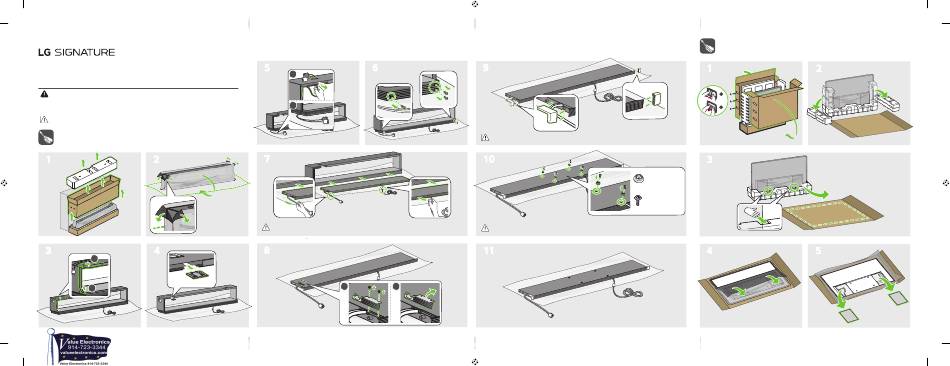

Power Box (Stand Built in) Removal and Installation Guide
1 2
3 4
2
1
Value Electronics - 35 Popham Rd, Scarsdale, NY 10583 - 914-723-3344 info@valueelectronics.com
5 6
1
2
7
• Hold the left and right cables together and take out the power box.
• Pull gently to avoid damaging or pulling the cable.
8
1 2
9
• The rubber is only required for wall-mount installation by a professional installation company, and is
provided separately as a service material.
10
Guide Spacer B
4EA
Guide Spacer Screw B
4EA (M6 x L18)
• Guide Spacer B (4ea) and Guide Spacer Screw B (4ea) are provided as accessories for wall-mounted
OLW480B.
11
Head Part Installation Guide
1 2
1
1
2
2
3
4 5
