Transmitter Solutions MONARCH 295SEPC2K-C Manual

295SEPC2K- C MONARCH
Transmitter
Solutions
Thank you for choosing a Transmitter Solutions product .
Please read this manual carefully before using the product.
Made in Italy . Copyright © 2013 by Transmitter Solutions
CONTENTS
1 - TRANSMITTER OVERVIEW
1A - General information
1B - Technical specifications
1C - Main components
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
6 - TROUBLESHOOTING
1A - General information
The Transmitter Solutions - Monarch 295SEPC2K-C transmitter is a 2-
key chain style mini transmitter operating at 295 MHz. It has been
designed for use with programmable telephone entry, security, and
access control systems operating with a 295 MHz frequency receiver.
The protocol is ClikCard® compatible and the code sent by the
transmitter includes a 16 bit security code which allows up to 65,536
combinations and 6 bit of facility code for 64 different combinations.
The Transmitter Solutions - 295R receiver which operates with this
transmitter has a Wiegand 26 bit and can operate any type of access
control system equipped with the same protocol. The CR 2016 lithium
batteries of the transmitter have a shelf life of about 6 months. The
product fully complies with Part 15 of FCC Regulations and the
European Directives 99/5/CE , 89/336/CEE , 73/23/CEE .
with Patented
ChargeGuard TM
1B - Technical specifications
Circuit
Operating frequency
Number of keys:
Battery :
Battery life:
Number combinations :
Protocol :
Different F acilities codes
Operating temperature:
Overall dimensions:
W eight:

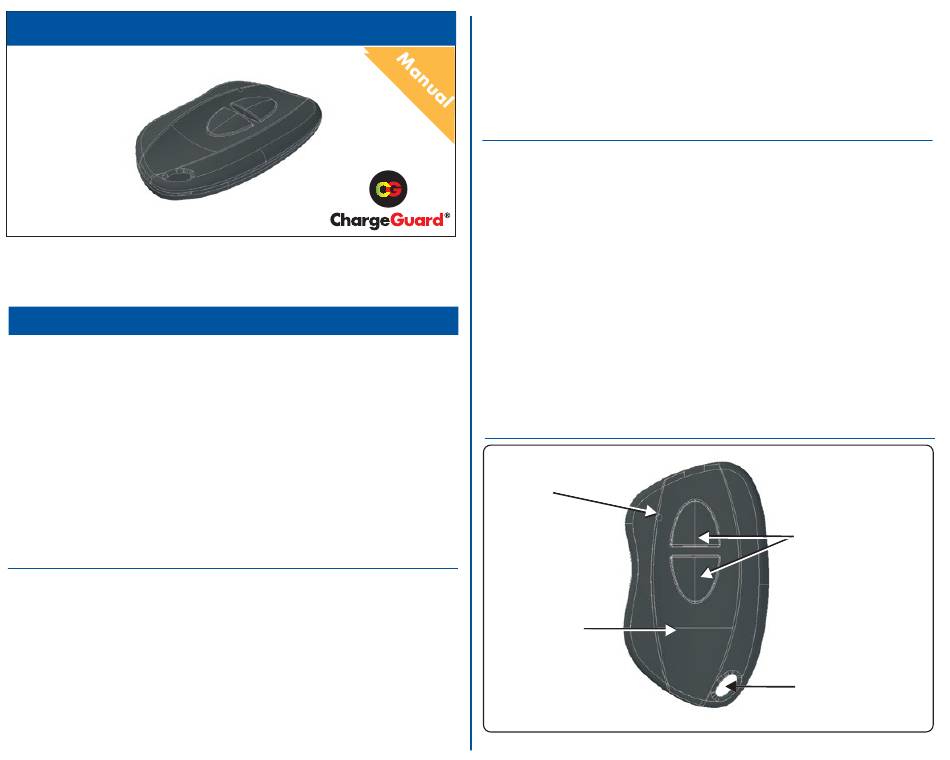

1C - Main components
Tri- color
LED
Dark grey
Fig. 2
295 MHz
2
2 x 3V lithium batteries CR2016
18 ÷ 24 months
65,536
ClikCard® compatible
64
-20°F÷+131°F (-20°C÷+55°C)
2.4"x1.4"x0.51" (61x36x13 mm)
0.49 oz. (14 gr .)
case
Dark grey
push-buttons
Key ring
holder
