Transmitter Flat 433TSPW4K
Transmitter
Solutions
Thank you for choosing a Transmitter Solutions product .
Please read this manual carefully before using the product.
Made in Italy . Copyright © 2012 by T ransmitter Solutions
CONTENTS
1 - TRANSMITTER OVERVIEW
1A - General information
1B - Technical specifications
1C - Main components
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BA TTERY ACCESS
6 - TROUBLESHOO TING
1A - General information

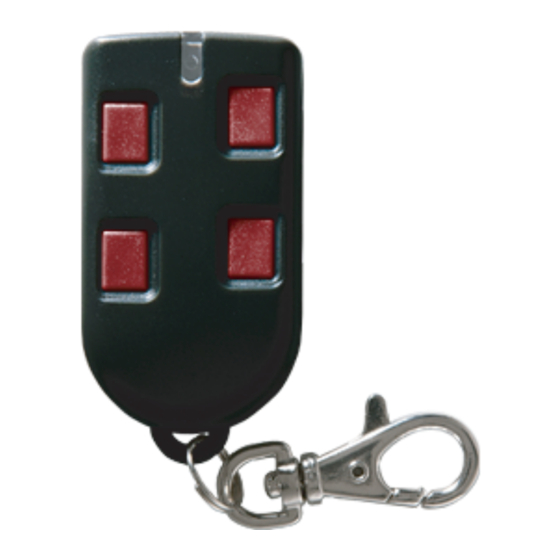

The Transmitter Solutions - 433TSPW4K Flat Transmitter is a key chain
style transmitter operating at 433 MHz. It has been designed for use
with programmable telephone entry, security, and access control
systems operating with a 433 MHz frequency receiver. The code sent by
the transmitter includes a 16 bit security code which allows up to
65,536 number combinations and 4 bits of facility code which allows
up to 16 facility codes .
The Transmitter Solutions - 433 receiver which operates with this
transmitter has a Wiegand 26 bit format output, which will operate any
type of access control system equipped to accept a 26 bit W iegand
input. The CR 2016 lithium batteries have a shelf life of about 6 months.
The product fully complies with Part 15 of FCC Regulations and the
European Directives 99/5/CE , 89/336/CEE , 73/23/CEE .
1B - Technical specifications
Operating frequency
Number of keys:
Battery :
Battery life:
Number combinations :
Different F acilities codes
Operating temperature:
Overall dimensions:
W eight:
1C - Main components
Red LED
Button A
Button C
433 MHz
4
1 x 3V lithium battery CR2032
18 - 24 months
65,536
16
-20°F÷+131°F (-20°C÷+55°C)
2.48"x 1.27"x 0.417"
1 oz. (20 gr . )
Closing hook
Button B
Button D
Key-holder ring
Fig. 1
