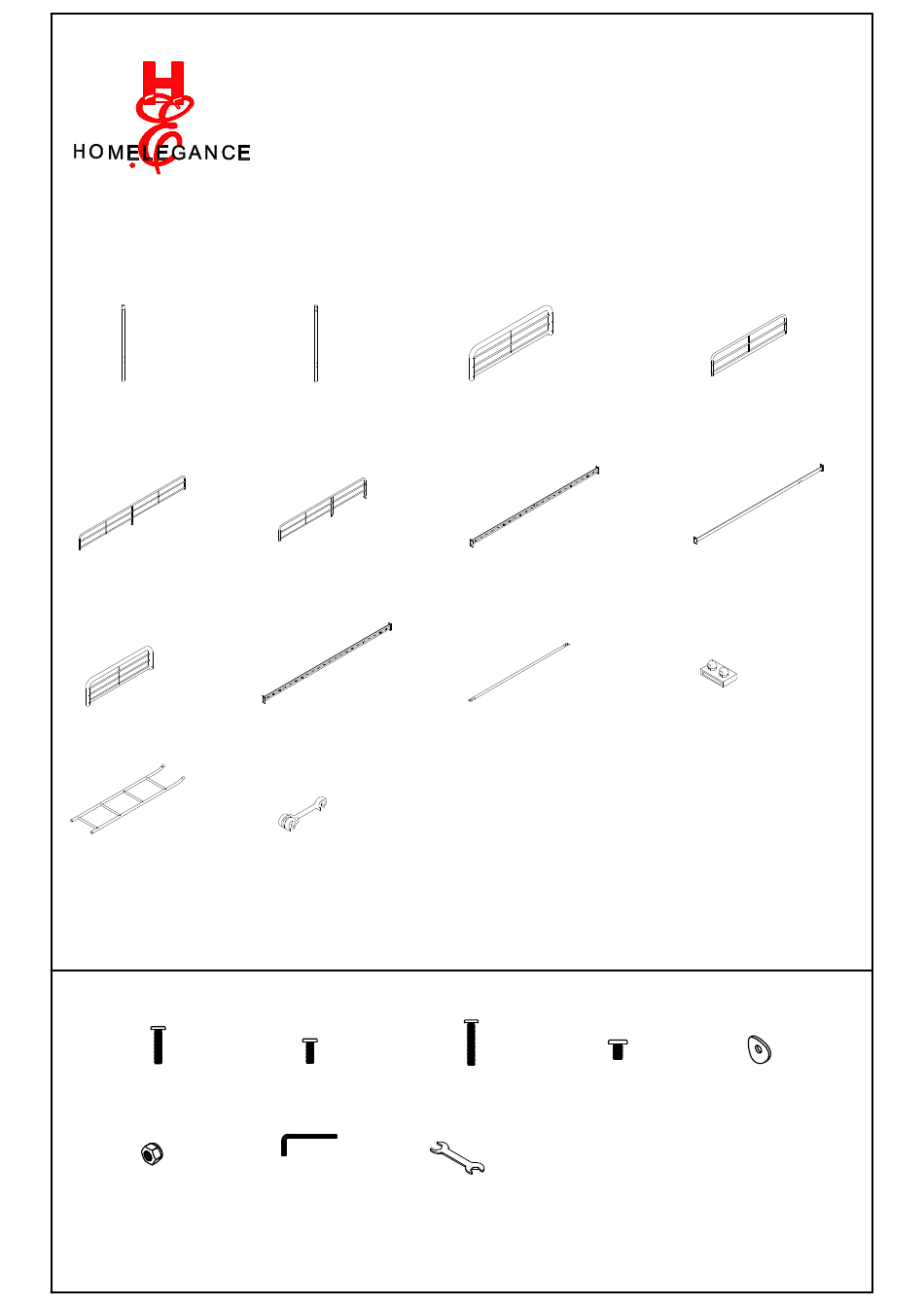

PART LIST / LISTE DE PIECES:
A:Post A/Publier A
2PCS
E:Upper Rear Guardrail/
Garde-corps arrière
supérieur
1PC
I:Upper RSF Rail/
Rail supérieur RSF
1PC
M:Ladder/Échelle
1PC
HARDWARE LIST / LISTE DE QUINCAILLERIE:
1: Bolt/Boulon
1/4*35mm
X 14PCS
6: Nut/Écrou
1/4
X 1PC
ASSEMBLY INSTRUCTION
INSTRUCTIONS DE MONTAGE

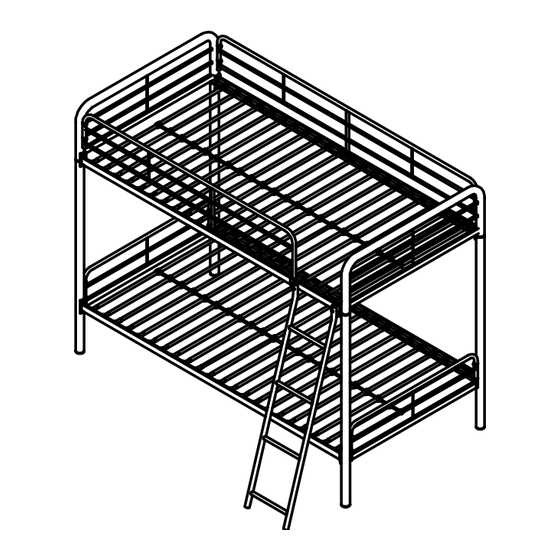

B2009DZ/GY-1 TWIN / TWIN BUNK BED/
B:Post B/Publier B
2PCS
F:Upper Front Guardrail/
Garde-corps avant
supérieur
1PC
J:Lower Rail/
Rail inférieur
2PCS
N:Slat Spacer/
Entretoise de
lamelle
42PCS
2: Bolt/Boulon
3: Bolt/Boulon
1/4*16mm
X 16PCS
7: Allen Key/
Clé Allen
4mm
X 1PC
LIT SUPERPOSÉ SIMPLE / SIMPLE
C:Upper LSF Rail/
Rail supérieur LSF
1PC
G:Upper Rear Supprot Rail/
Rail de support arrière
supérieur
1PC
K:Slat/lattes
44PCS
4: Bolt/Boulon
1/4*45mm
1/4*10mm
X 3PCS
X 3PCS
8: Wrench/Clé
X 1PC
D:Lower LSF/RSF Rail/
Rail inférieur LSF/
RSF
2PCS
H:Upper Front Support
Rail/Rail de support
avant supérieur
1PC
L:Slat Connector/
Connecteur à lamelles
88PCS
5: Washer/Machine
à laver
X 14PCS
Page:1/5
Advertisement
Related Manuals for Homelegance B2009GY-1
Summary of Contents for Homelegance B2009GY-1
- Page 1 ASSEMBLY INSTRUCTION INSTRUCTIONS DE MONTAGE B2009DZ/GY-1 TWIN / TWIN BUNK BED/ LIT SUPERPOSÉ SIMPLE / SIMPLE PART LIST / LISTE DE PIECES: D:Lower LSF/RSF Rail/ A:Post A/Publier A B:Post B/Publier B C:Upper LSF Rail/ 2PCS Rail inférieur LSF/ 2PCS Rail supérieur LSF 2PCS H:Upper Front Support F:Upper Front Guardrail/...
- Page 2 NOTE: PLEASE DO NOT TIGHTEN ALL BOLTS UNTIL THE BED IS ASSEMBLED COMPLETELY. NE PAS SERRER LES BOULONS JUSQU'À CE QUE LE MONTAGE SOIT COMPLETMENT TERMINE STEP 1/ÉTAPE 1 STEP 2/ÉTAPE 2 Hardware 1: 4 pcs/ Matériel 1: 4 pièces Hardware 5: 4 pcs/ Matériel 5: 4 pièces STEP 3/ÉTAPE 3...
- Page 3 NOTE: PLEASE DO NOT TIGHTEN ALL BOLTS UNTIL THE BED IS ASSEMBLED COMPLETELY. NE PAS SERRER LES BOULONS JUSQU'À CE QUE LE MONTAGE SOIT COMPLETMENT TERMINE STEP 6/ÉTAPE 6 Hardware 1: 6 pcs/ Matériel 1: 6 pièces Hardware 5: 6 pcs/ Matériel 5: 6 pièces STEP 7/ÉTAPE 7 Hardware 3: 1 pcs/...
- Page 4 NOTE: PLEASE DO NOT TIGHTEN ALL BOLTS UNTIL THE BED IS ASSEMBLED COMPLETELY. NE PAS SERRER LES BOULONS JUSQU'À CE QUE LE MONTAGE SOIT COMPLETMENT TERMINE STEP 9/ÉTAPE 9 STEP 10/ÉTAPE 10 STEP 11/ÉTAPE 11 Hardware 3: 2 pcs/ Matériel 3: 2 pièces COMPLETED/TERMINÉ...
- Page 5 SAFETY WARNING Homelegance puts your child's safety as a Top Priority. Our bunk beds have been tested by an independent laboratory and certified to be in compliance with ASTMF-1427,"Standard Consumer Safety Specification for Bunk Beds" and U.S. Government specifications 16 Code of Federal Regulations, Parts 1213 and 1513.
