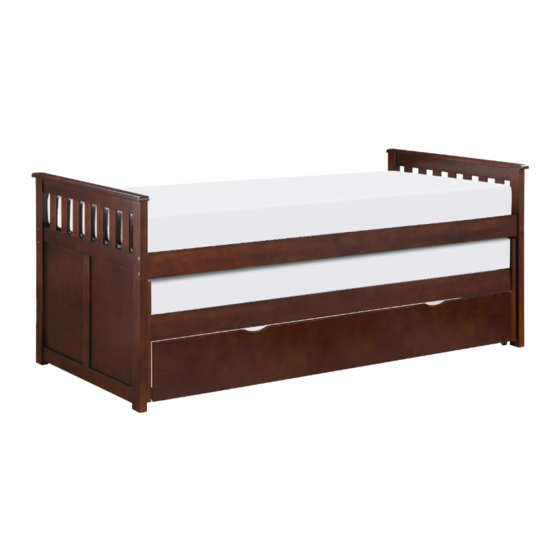

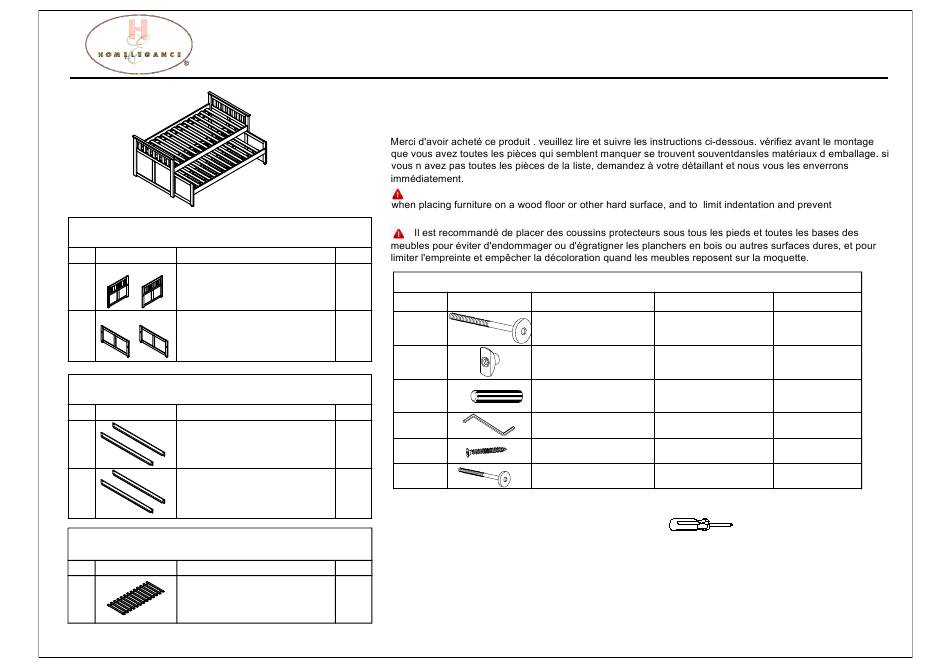

Homelegance B2013RTDC-1 Assembly Instruction

B2013RTDC-1/B2043RT-1/B2053RTW-1/B2063RT-1
PART LIST / LISTE PIECES
NO SKETCH DESCRIPTION
Upper HB & FB / Tete &
1
Pied de lit supérieur
Lower bed HB & FB / Tete
2
& Pied de lit inférieur
B2013RTDC-2/B2043RT-2/B2053RTW-2/B2063RT-2
PART LIST / LISTE PIECES
NO SKETCH DESCRIPTION
Upper Side Rails /
Longerons de côtés
3
supérieur
Lower Side Rails /
CourtLongerons de
4
côtésinférieur
B2013RTDC-SL/B2043RT-SL/B2053RTW-SL/B2063RT-SL
PART LIST / LISTE PIECES
NO SKETCH DESCRIPTION
Slats/Lattes
5
2Sets(13pcs/Set)
MADE IN VIET NAM / FABRIQUÉ AU VIETNAM
ASSEMBLY INSTRUCTION / INSTRUCTION D'ASSEMBLAGE
B2013RTDC-1/B2043RT-1/B2053RTW-1/B2063RT-1 Twin Twin Bed - Headboard & Footboard/Jumeau/Jumeau-Tête / Pied de lit
B2013RTDC-2/B2043RT-2/B2053RTW-2/B2063RT-2 Twin Twin Bed Side Rails/Jumeau/Jumeau-Longerons
B2013RTDC-SL/B2043RT-SL/B2053RTW-SL/B2063RT-SL Twin Twin Bed Slats, 2 sets/ Jumeau/Jumeau-Lattes 2 ensembles
Thank you for purchasing this product. Please take time to read and follow the instructions below. Check that
you have all parts and hardware before assembly. Parts apparently missing are often found in the packing
materials. If you do not have all the parts listed, have you dealer contact us and they will be sent to you
immediately.
discoloration if placing on carpet.
QTY
2PCS
2PCS
QTY
2PCS
2PCS
* Above Hardware are packed in B2013RTDC-1/B2043RT-1/B2053RTW-1/B2063RT-1 for Assembly
* Screwdriver (Not Provided) / Tournevis ( Non inclus)
!CAUTION/!CAUTION:
(1)
QTY
2SETS
(2)
It is recommended to install protective pads under all legs and supports to avoid damage or scratches
HARDWARE LIST / LISTE DE QUINCAILERIE:
NO SKETCH DESCRIPTION
Bolt / Boulon
A
Washer
B
/Rondelle D' Arret
Wood Dowel
C
/Goujon de Bois
Allen Key /
D
Screw / Vis
E
Bolt / Boulon
F
DO NOT FULLY-TIGHTEN THE NUTS OR BOLTS INITIALLY UNTIL ALL THE NUTS AND BOLTS ARE
IN PLACE. (TO AVOID CAUSING DAMAGES TO THE THREAD, DO NOT OVER. TIGHTEN THE NUTS
OR BOTLS.) / NE PAS SERRER LES BOULONS JUSQU'À CE QUE LE MONTAGE SOIT
COMPLETMENT TERMINE
KEEP ALL HARDWARE PARTS OUT OF REACH OF CHILDREN. / GARDER TOUTES LES PIÈCES
HORS DE LA PORTÉE D'ENFANTS
SIZE
1/4"x 3 3/16"
1/4"x7/8"x1/2"x3/8"
Ø10 x 1 3/4"
Clé allen
M4 x 2 3/8"x1"x1"
5/32"x 1 3/8 "
1/4"x 2 3/4"
PAGE 1 OF 3 / PAGE 1 SUR 3
QTY
8pcs
16pcs
8pcs
1pc
52pcs
8pcs
