INSTALLATION INSTRUCTION
Solorail™ - Low Voltage Starter Kit
LM-SK-150E, LM-SK-250E
IMPORTANT SAFETY INSTRUCTIONS:
•
Read all instructions.
•
Turn off power at main switch before installing or modifying the system.
•
Do not install the system:
- Within six inches of any curtain or combustible materials
- Less than 5 feet above a floor
- In a damp or wet location
- Concealed, or extended through building walls.
•
After first 1/2 hour of operation, switch off and check all connections for excessive heat.
•
Loose connections must be tightened to prevent overheating which can damage the system and pose a potential
fire hazard. Do not over tighten.
•
Intended for installation by a qualified electrician.
•
Installation should be in accordance with NEC and local codes. Use minimum AWG #10 wire for secondary wiring.
OVERVIEW:
Power to low volt mono rail is supplied by a 12 volt 150 watt electronic transformer (model LM-SK-150E), or by a 250 watt
transformer ( model LM-SK-250E ). The transformer is generally compatible for use with standard ELV dimmers.

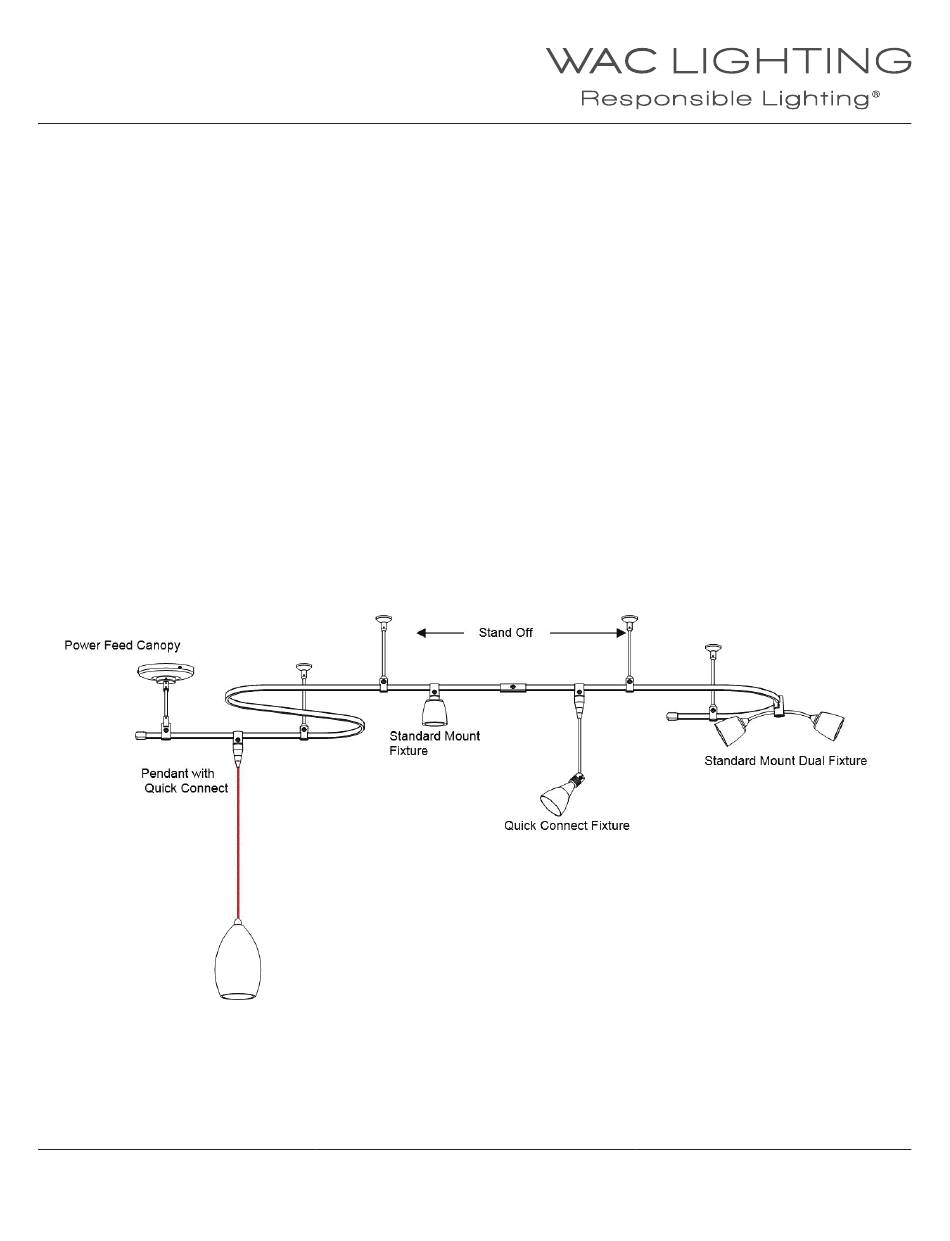

Choices of Solorail™ fixtures include rail mounted heads, quick connect fixtures, and quick connect pendants.
This kit contains the components for mounting to a flat surface such as a dry wall ceiling or wall.
Accessories may be purchased for drop ceiling, or sloped ceiling applications.
Solorail™ is composed of two copper conductors separated by a plastic insulator.
It is flexible and bendable. Rail is supplied in 4 ft lengths and may be field cut.
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. November, 2017
