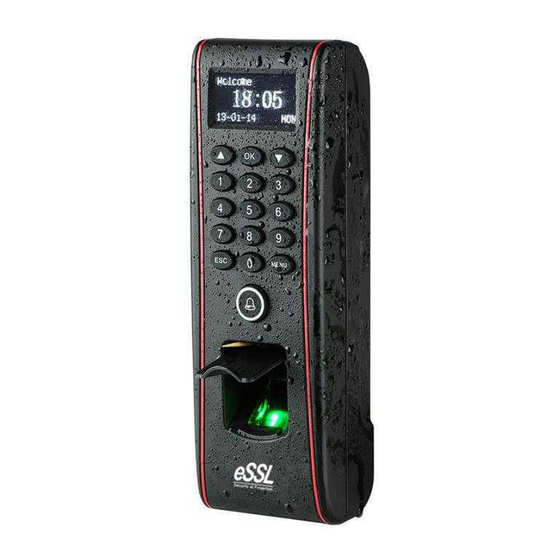

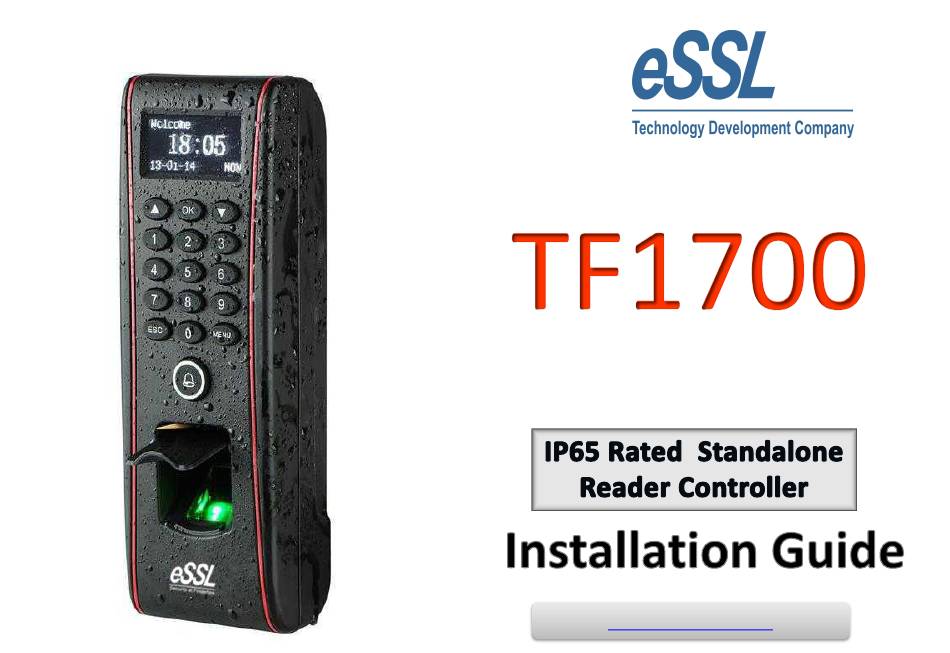

- Page 1 www.esslsecurity.com...
-
Page 2: Table Of Contents
Product Dimensions Cables and Connectors Installation of Back Plate Power Connection Ethernet Connection PC RS485 Connection FR1200 RS485 Connection Relay Connection Digital Input Connection Weigand Input Connection Weigand Output Connection Installation Reference Specifications Electrical Specifications Troubleshooting Copyright 2014 eSSL Security... - Page 3 • Be careful not to let liquid like • Clean the device often to • Do not let children touch the water, drinks or chemicals leak remove dust on it device without supervision. inside the device. Copyright 2014 eSSL Security...
- Page 4 • In cleaning, do not splash water on the • Contact your nearest dealer in • Do not damage the device device but wipe it out with smooth cloth case of a trouble or problem. or towel. Copyright 2014 eSSL Security...
-
Page 5: How To Place A Finger
Place a finger such that the bottom end of a nail is located at the center of a sensor If a finger is placed as shown in the right, only a small area of a finger is captured. So it is recommended to place a finger as shown on the left. Copyright 2014 eSSL Security... - Page 6 Tips for different fingerprint conditions eSSL’s fingerprint products are designed to verify fingerprints with highest security irrespective of the conditions of the skin of the finger. However, in case a fingerprint is not read on the sensor, please refer to the followings tips.
- Page 7 How Does Reader work Register finger Identification Feature extraction Verified successfully Open door Thank you ! Verify feature Verification Door closed failed Please try again ! Fingerprint database Create Event logs Stored Copyright 2014 eSSL Security...
-
Page 8: Product Contents
Wall Mounting Screws – 3 pcs. Wall Plugs– 3 pcs Star-shape Screw for Software CD Mini-USB Cable -1 pcs Mounting Plate -2 pcs TF1700 Installation Guide 2 pin, 5 pin, 7 pin, 10 pin Mounting Paper cables – each 1 pcs Copyright 2014 eSSL Security... - Page 9 Product Contents Optional accessories 12VDC, 3A Power Weigand Card Reader FR1200 Slave Fingerprint Reader K1-1 Exit Button Adaptor Prox Card USB Memory RS485 Convertor Alarm Power Supply Controller Door Sensor Electric Strike Lock Electric Magnetic Lock Copyright 2014 eSSL Security...
-
Page 10: Product Pin Diagram
Product PIN Diagram Side Front OLED Screen 3 x 5 Keypads USB-host Reset Doorbell/LED Fingerprint Reader Copyright 2014 eSSL Security... - Page 11 Product PIN Diagram Bottom Back Tamper switch (Magnetic Contact) Star-shaped screw hole for fixing reader to the back plate Cables and Connectors Copyright 2014 eSSL Security...
-
Page 12: Product Dimensions
Product Dimension 62.5mm 65mm (2.46in.) (2.56in.) 185mm (7.28in.) 185mm 132mm (7.28in.) (5.20in.) 41.5mm (1.63in.) Copyright 2014 eSSL Security... -
Page 13: Cables And Connectors
Cables and Connectors Digital input and Relay output Weigand input and Power out Weigand Output and RS485 Ethernet Power In Copyright 2014 eSSL Security... -
Page 14: Installation Of Back Plate
Fix plastic pad and the back plate to the holes according to the marks on the template wall using wall mounting screws Mount TF1700 terminal on the Back plate Tighten the screws on the bottom, fix the device to the back plate. Copyright 2014 eSSL Security... -
Page 15: Power Connection
Power Supply GND (Black) Recommended power supply 12V ± 10%, at least 500mA. Comply with standard IEC/EN 60950-1. To share the power with other devices, use a power supply with higher current ratings Copyright 2014 eSSL Security... -
Page 16: Ethernet Connection
Ethernet Connection Ethernet Connection PIN DESCRIPTION WIRE RJ45-1 YELLOW RJ45-2 GREEN RJ45-3 RJ45-6 BLACK TCP/IP TCP/IP Copyright 2014 eSSL Security... - Page 17 To connect TF-series with a PC directly, connect both devices with a straight CAT-5 RJ45-2 GREEN cable. As the TF-series supports auto MDI/MDIX feature, it is not necessary to use a RJ45-3 crossover type cable. RJ45-6 BLACK TCP/IP Copyright 2014 eSSL Security...
-
Page 18: Pc Rs485 Connection
2. Adjust the communication speed as needed , The signal quality vary depending on wiring conditions, and it maybe necessary to lower the baudrates. 3. The GND Signal may be omitted if and only if the GND potential difference is less than ±5V Copyright 2014 eSSL Security... -
Page 19: Fr1200 Rs485 Connection
RS485 address , switch 5 is reserved , switch 6 is for reducing noise on long RS485 cable. 3. If FR1200 is powered from TF1700 terminal ,the length of wire should be less than 100 meters or 330 ft. 4. If the cable length is more than 200 meters or 600 ft. , the number 6 switch should be ON as below 5.If the 485Reader set as Salve , it will be used as inBIO-series reader ,... -
Page 20: Relay Connection
Lock Relay Connection PIN DESCRIPTION WIRE BLUE For Normally Open Lock COM1 YELLOW ORANGE COM2 GREEN BELL- PURPLE BELL+ BROWN WHITE DeadBolt / BLACK Power Supply Door Strike GARY (BULE) COM1 (RED) Copyright 2014 eSSL Security... - Page 21 Lock Relay Connection PIN DESCRIPTION WIRE BLUE For Normally Close Lock COM1 YELLOW ORANGE COM2 GREEN BELL- PURPLE BELL+ BROWN WHITE DeadBolt / BLACK Power Supply Door Strike GARY COM1 (RED) (YELLOW) Copyright 2014 eSSL Security...
-
Page 22: Digital Input Connection
Aux. Input Connection (Door sensor,Button) PIN DESCRIPTION WIRE BLUE COM1 YELLOW ORANGE COM2 GREEN BELL- PURPLE BELL+ BROWN WHITE BLACK GARY Door Status Exit Button (WHITE) (BLACK) (10) (GARY) Copyright 2014 eSSL Security... - Page 23 Aux. Output Connection (Alarm) PIN DESCRIPTION WIRE BLUE COM1 YELLOW ORANGE COM2 GREEN BELL- PURPLE BELL+ BROWN WHITE Alarm BLACK Power Supply GARY (ORANGE) COM2 (GREEN) Copyright 2014 eSSL Security...
- Page 24 Aux. Output Connection (Door Bell) PIN DESCRIPTION WIRE BLUE COM1 YELLOW ORANGE COM2 GREEN BELL- PURPLE BELL+ BROWN WHITE Door Bell BLACK Power Supply GARY BELL- (PURPLE) BELL+ (BROWN) Copyright 2014 eSSL Security...
-
Page 25: Weigand Input Connection
Weigand Input Connection PIN DESCRIPTION WIRE +12V BLACK INWD1 WHITE INWD0 GREEN RLED BLUE GLED GARY BEEP PURPLE DC+(6-14V) +12V (RED) (BLACK) Weigabd1 INWD1 (WHITE) Weigand0 INWD0 (GREEN) Green LED GLED (GARY) Beeper BEEP (PURPLE) RFID Reader Copyright 2014 eSSL Security... -
Page 26: Weigand Output Connection
Weigand Output Connection PIN DESCRIPTION WIRE GREEN WHITE BLACK 485+ BLUE 485- YELLOW (GREEN) (WHITE) (BLACK) 485+ (BLUE) 485- (YELLOW) Access controller Copyright 2014 eSSL Security... -
Page 27: Installation Reference
Installation Reference Standalone LOCK Alarm Door Sensor Exit button Door Copyright 2014 eSSL Security... - Page 28 Installation with C3 Panel Weigand Output Connection Third Party Controller Weigand Weigand Output Weigand Output Weigand Output Output LOCK LOCK Outside Door Door Sensor Inside Door Inside Door Door Sensor Outside Door Copyright 2014 eSSL Security...
- Page 29 Installation with inBIO Panel RS485 Connection inBIO-series Controller EXT RS485 EXT RS485 EXT RS485 EXT RS485 LOCK LOCK Outside Door Door Sensor Inside Door Inside Door Door Sensor Outside Door Copyright 2014 eSSL Security...
-
Page 30: Specifications
Wiegand Input and Wiegand Output Identification speed ≤1 sec ≤0.0001% ≤1% -10°C~50°C（14°F~50°F） Operating Temperature Operating Humidity 20%-80% Language English Power Supply 12V DC, 1.5A Access control interfaces Electric lock, alarm, exit button, wired door bell Dimension 62.5*185*41.5mm (L*W*D) Copyright 2014 eSSL Security... - Page 31 WEIGAND Input Voltage(V) 10.8 13.5 Current(mA) TTL/WEIGAND Output VoH (V) VoL (V) Pull-up resistance (Ω) 4.7K The outputs ports are open drain type, pulled up with 4.7k resistors internally ZK Electronic lock Voltage(V) 10.8 13.2 Current(mA) Copyright 2014 eSSL Security...
-
Page 32: Electrical Specifications
Why device display “system broken“ and the alarm is ringing. Check whether the device and back plate are securely connected to each other. If not, a tamper switch is activated which triggers the alarm and keeps it ringing. Copyright 2014 eSSL Security... - Page 33 Marenahalli, jp Nagar 2nd Phase Copyright 2014 eSSL Security. All right reserved. Bangalore- 560078 eSSL may at any time and without notice , Make changes or Tel.: +91 80 2609 0500 improvements to the product and services offered and/or cease sales@esslindia.com...
