Summary of Contents for Cyclades PR4000

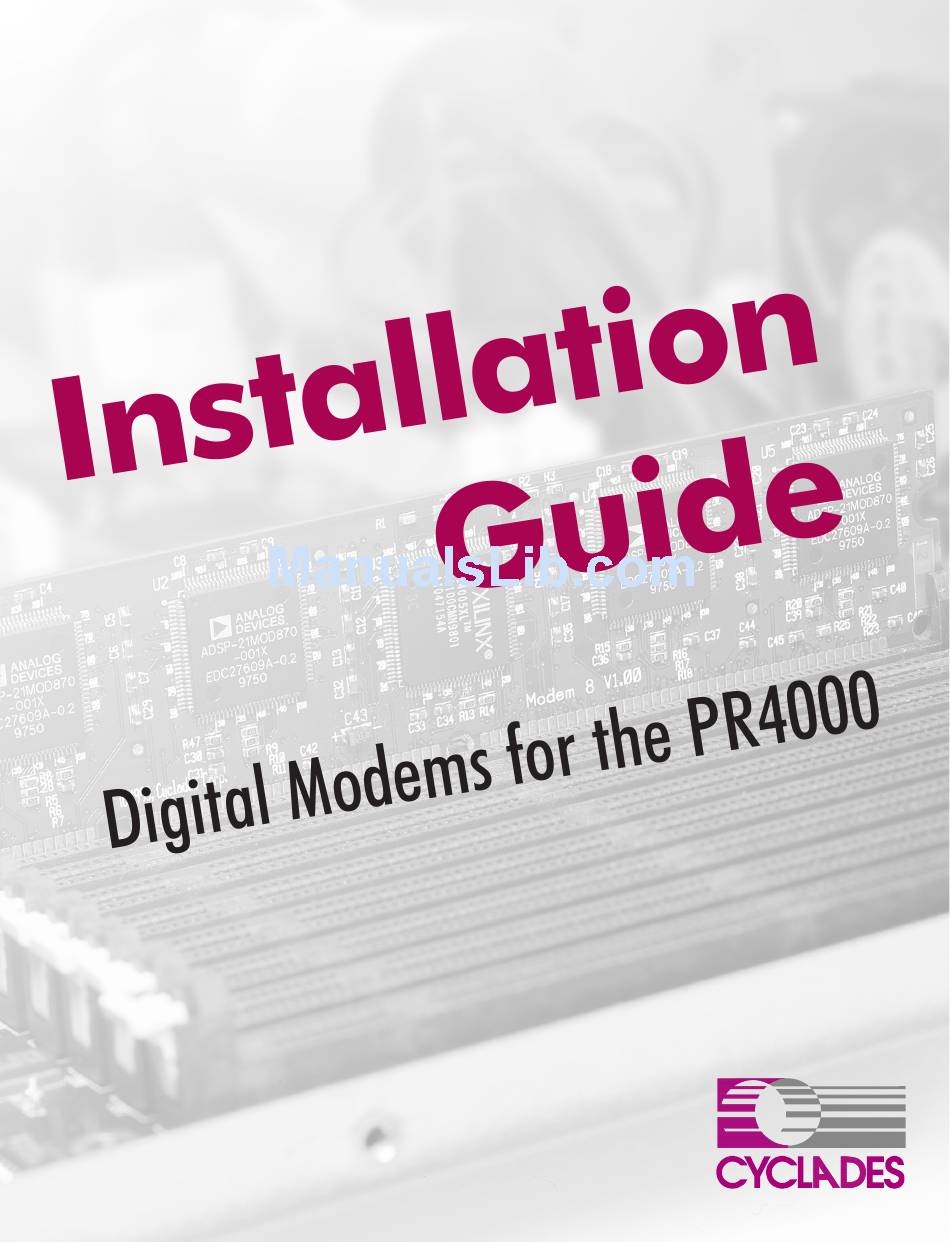

- Page 1 RG.MA.124 - V.1.0...
- Page 2 If a workbench of this type is not available, use the wrist strap sent with the modems. The directions should be followed carefully. Please note that the wrist-strap should not be connected to the PR4000 because it is no longer plugged in an thus no longer connected to ground.
- Page 3 Step Four: Attach the wrist-strap to your wrist. Step Five: Remove the PR4000’s cover. Be careful to not touch any components inside the PR4000’s case, as they also can be damaged by static electricity. Step Six: Open the clamps on the slot where the board will be installed, as shown in the figure.
- Page 4 Digital Modems Cyclades-PR4000 installed in a particular slot, but installing the first board in slot 0, the second in slot 1, and so on makes the installation of each succeeding board easier. It is important that each board be handled as few times as possible.
- Page 5 Reconnect the PR4000’s cables, including the console cable. Start up the terminal program used to access the PR4000. Plug in the power cable and turn the PR4000 on. When the PR4000 boots, the following messages should appear (two boards are shown in this example): DSP Cards Detected .
- Page 6 Cyclades Corporation 41934 Christy Street Fremont, CA, USA - 94538 phone (510) 770-9727 fax (510) 770-0355 e-mail: sales@cyclades.com e-mail: support@cyclades.com Web Site: www.cyclades.com Cyclades Europe Munich, Germany www.cyclades.com Cyclades Brasil São Paulo, SP, Brasil www.cyclades.com.br...
