USCutter MH Mid Tier Stand Setup Instructions

Download this manual

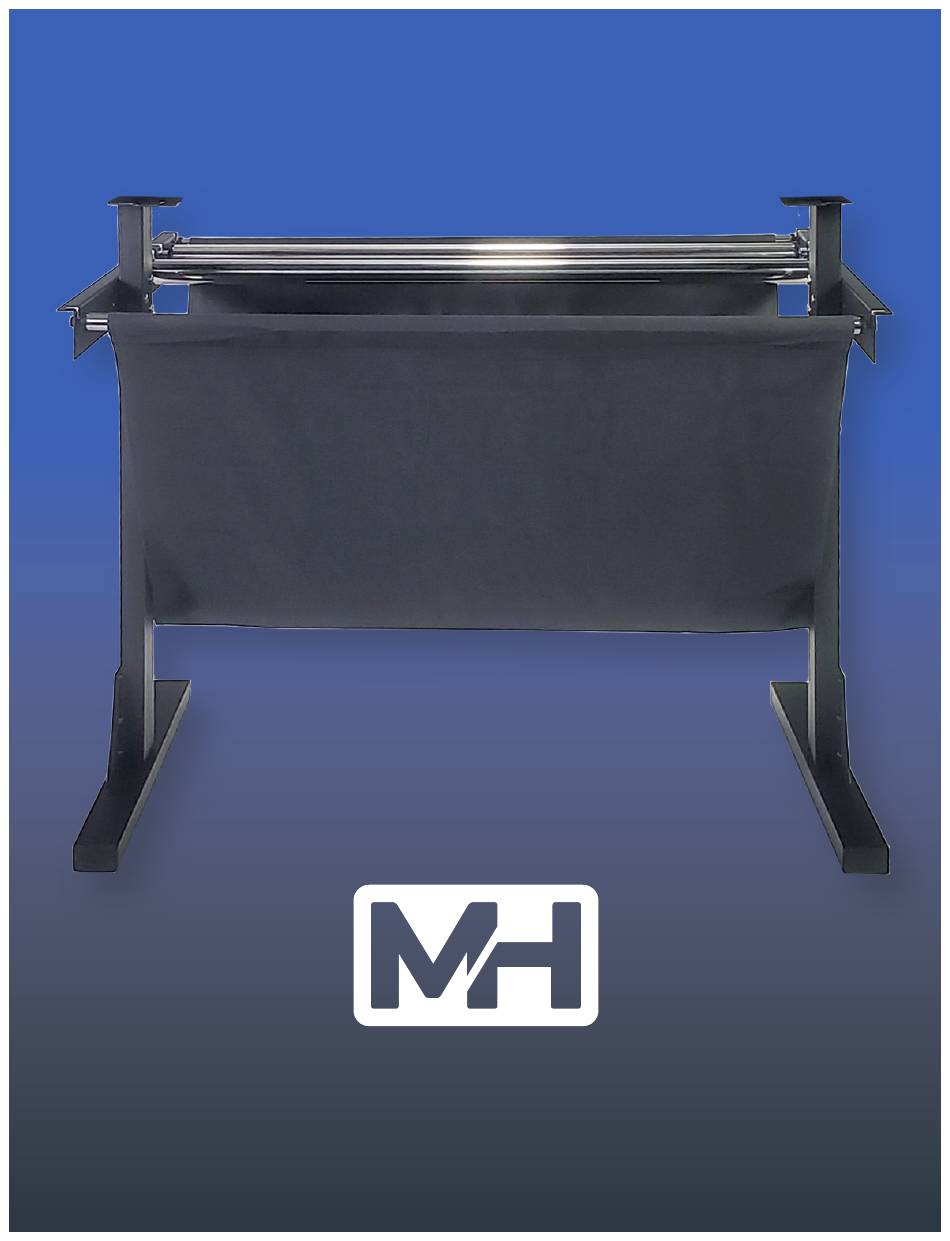

MID-TIER STAND SETUP

Ver. 1.3, May 2024

Need help?

Do you have a question about the MH Mid Tier Stand and is the answer not in the manual?

Page 1 MID-TIER STAND SETUP Ver. 1.3, May 2024...
Page 2 TABLE OF CONTENTS Mid-Tier Stand - Parts ....................................Page 3 Mid-Tier Stand - Setup ..................................Page 4-6...
Page 3 MID-TIER STAND - PARTS Right Rollerbar Arm Left Rollerbar Arm Stand Hardware Right Leg Left Leg Crossbar (Length Determined By Cutter Width) Stand Feet (Left/Right) Rollerbars (Length Determined By Cutter Width) Catchbasket (Length Determined By Cutter Width)
Page 4 MID-TIER STAND - SETUP Step 1: Attach the Crossbar (5) to the Leg (3) With 2 Bolts & Washers form the Stand Hardware (Repeat for other side using parts 4 & 5). Parts Needed: Note: When Installing the Crossbar (5) the two holes in the center should face up to store extra bladeholders or the...
Page 5 MID-TIER STAND - SETUP (Continued) Step 3: Attach the Stand Feet (6) to the Leg (3) With 2 Bolts & Washers from Stand Hardware (Repeat for other side using parts (4 & 6) Parts Needed: Step 4: Place the Rollerbars (7) and the Catchbasket (8) in the slots on the Rollerbar Arms (1 &...
Page 6 MID-TIER STAND - SETUP (Continued) Step 5: Place the vinyl cutter feet into the corresponding holes on the Stand Legs (3 & 4) and secure using 4 screws from the Stand Hardware. Parts Needed: Finished: You now have a completed your Mid-Tier Stand with vinyl cutter attached.
