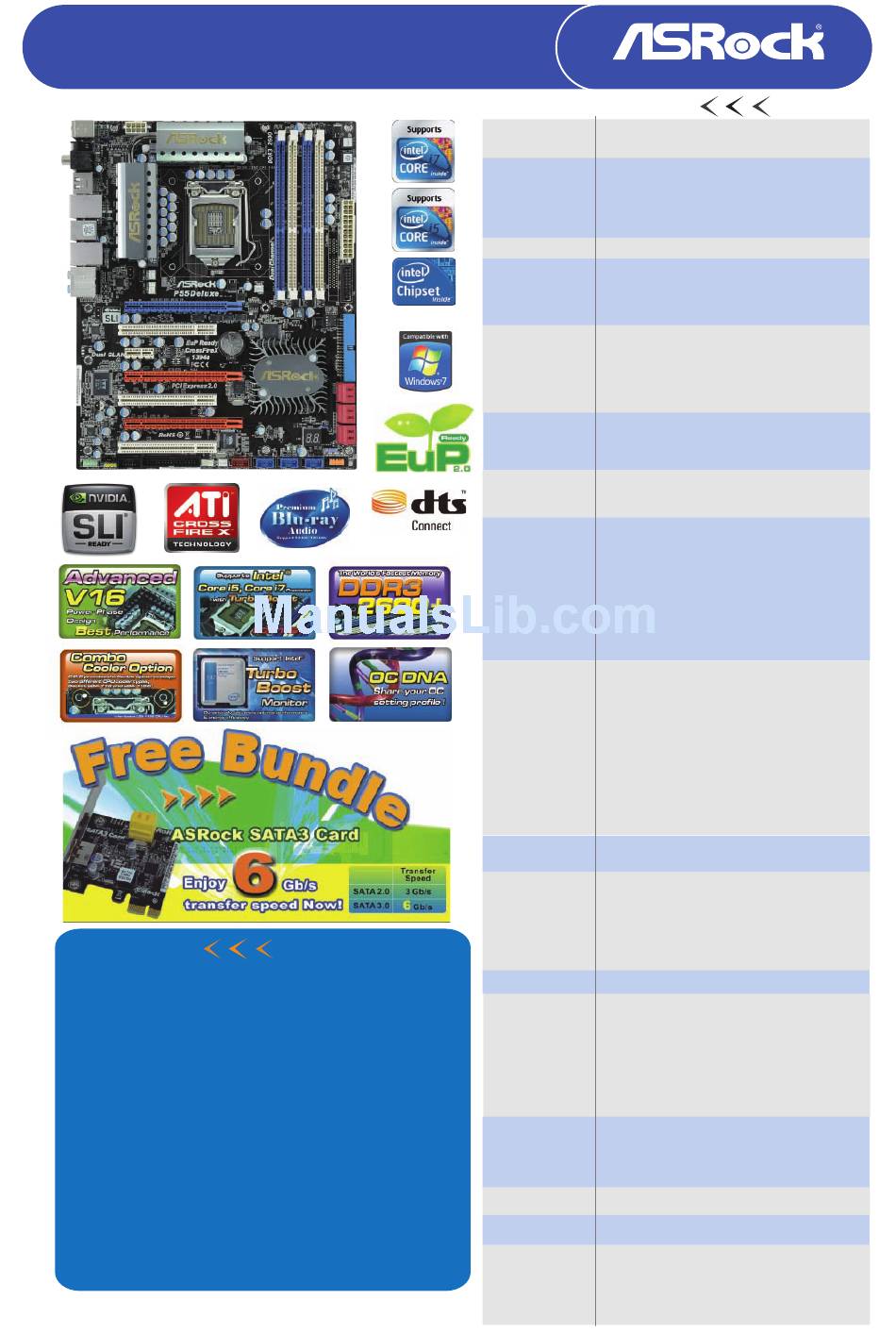

P55 Deluxe
®
Intel
P55 Chipset
Product Brief
- Advanced V16 Power Phase Design
- Supports Dual Channel DDR3 2600+ (OC)
- Supports ATI™ CrossFireX™ , 3-Way CrossFireX™
and Quad CrossFireX™
- Supports NVIDIA
®
Quad SLI™ and SLI™
- 1 x Powered eSATAII/USB Connector
- EuP Ready, Smart Switch Design, Combo Cooler
Option (C.C.O.)
- 7.1 CH, ALC890 Audio Codec, DTS & Premium
Blu-ray audio support
- Supports ASRock Instant Boot, Instant Flash, Smart
BIOS, ASRock OC Tuner, Intelligent Energy Saver
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
Detail Specification
Platform
CPU
Chipset
Memory
Featuring the
Intel
®
P55 Express Chipset
Expansion Slot
Audio
LAN
Rear Panel I/O
Connector
Quick Switch
BIOS Feature
Support CD
Unique Feature
Hardware Monitor
OS
Certifications
Accessories
ww w. a s ro ck. c om
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- All Solid Capacitor design (100% Japan-made
high-quality Conductive Polymer Capacitors)
- Supports the Intel
®
Core
TM
i7 and Intel
Processors in the LGA1156 Package
- Advanced V16 Power Phase Design
®
- Supports Intel
Turbo Boost Technology
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
®
- Intel
P55
- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2600+(OC)/2133(OC)/1866(OC)/1600
/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB
®
- Supports Intel
Extreme Memory Profile (XMP)
- 2 x PCI Express 2.0 x16 slots (Single at x16 or Dual at
x8/x8 mode)
- 1 x PCI Express 2.0 x16 slot (at x4 mode, 2.5GT/s)
- 1 x PCI Express 2.0 x1 slot (2.5GT/s)
- 3 x PCI slots
TM
TM
- Supports ATI
CrossFireX
, 3-Way CrossFireX
TM
Quad CrossFireX
- Supports NVIDIA
®
SLI
TM
and Quad SLI
- 7.1 CH Windows
®
Vista™ Premium Level HD Audio with
Content Protection
- DAC with 110dB dynamic range (ALC890 Audio Codec)
- DTS (Digital Theater Systems) support
- Premium Blu-ray audio support
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
- Supports Dual LAN with Teaming function
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 7 x Ready-to-Use USB 2.0 Ports
- 1 x Powered eSATAII/USB Connector
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED
LED)
- 1 x IEEE 1394 Port
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Side Speaker / Rear Speaker / Central /
Bass / Line in / Front Speaker / Microphone
- 6 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 10, RAID 5 and Intel
®
Matrix Storage),
NCQ, AHCI and Hot Plug functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- 1 x TPM header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED
- 16Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM, SB,VTT Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
- Supports Smart BIOS
- Drivers, Utilities, AntiVirus Software (Trial Version)
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
®
®
- Microsoft
Windows
XP / XP 64-bit / Vista
64-bit / 7 compliant
- FCC, CE, WHQL
- EuP Ready (EuP ready power supply is required)
- 1 x ASRock SATA3 Card
- 1 x ASRock SLI_Bridge_2S Card
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
- 4 x SATA Data Cables (Optional)
- 2 x SATA 1 to 1 Power Cables (Optional)
- 1 x LED lead (Optional)
®
Core
TM
i5
TM
and
TM
TM
TM
/ Vista
