USER GUIDE

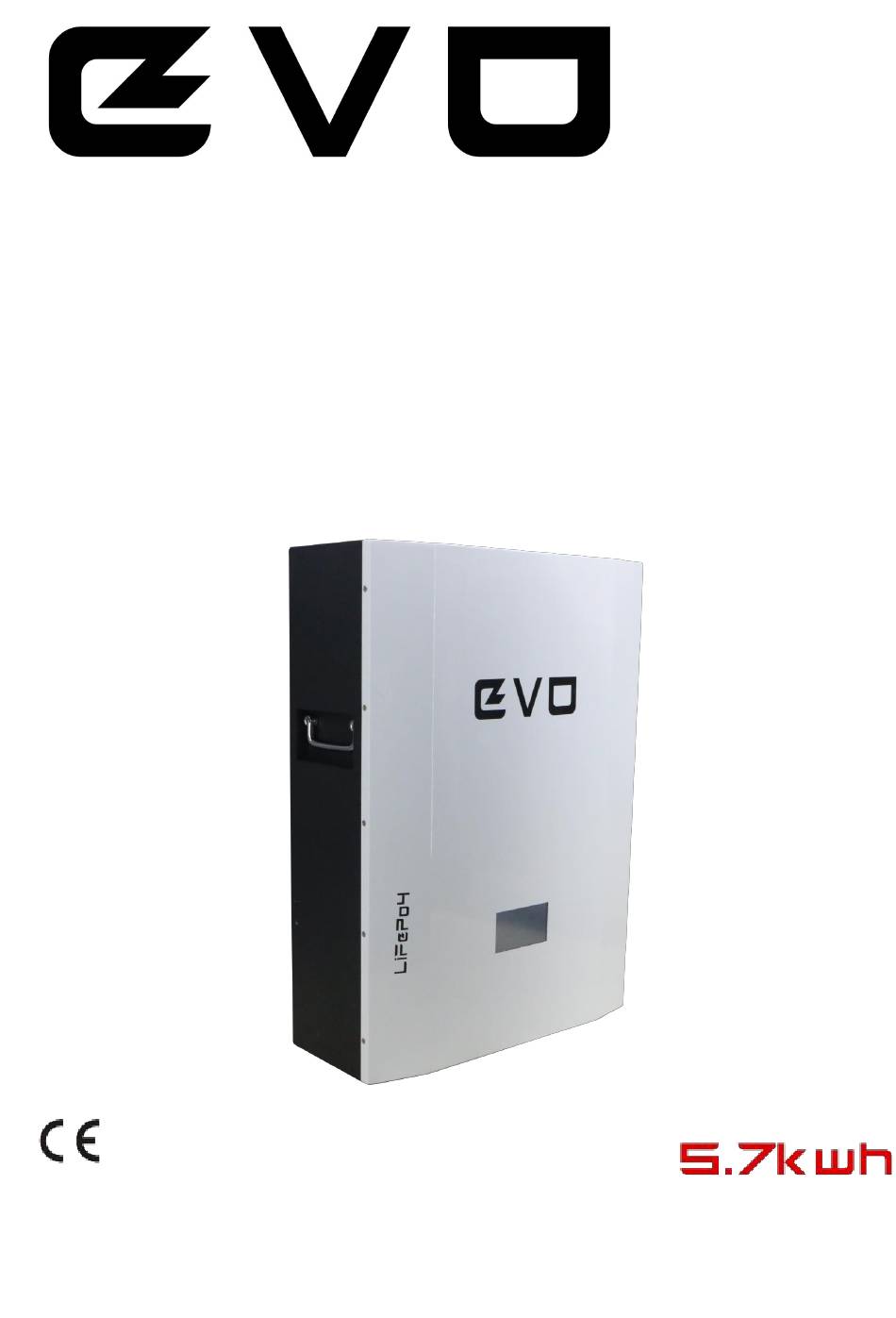

EVO5.7kWh-V1 (LiFePO4 Battery) 48 V120 Ah
Household Solar Storage System
Approved
UN38.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVO5.7-V1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Evo EVO5.7-V1

  • Page 1 USER GUIDE EVO5.7kWh-V1 (LiFePO4 Battery) 48 V120 Ah Household Solar Storage System Approved UN38.3...
  • Page 2: Battery Specifications

    1. Battery Specifications Battery Specifications Model No EVO5.7-V1 Nominal Parameters Voltage Capacity 120Ah Energy 5760Wh Dimensions(L*W*H) 650*475*190mm 68.5kg (approx.) Weight Basic Parameters Storage time/temperature 5 months @ 25℃; 3 months @ 35℃; 1 month @ 45℃ Operation temperature - 10℃~55℃ @ 60±20% Relative Humidity Storage temperature 0℃~45℃...
  • Page 3: Interface Introduction

    2.2. Interface Introduction Name Silk- screen Remark Positive (+) Red M6 screw nut/Red Negative (-) Black M6 screw nut/Black Parallel communication and RS485 parallel port RS485/CAN Battery and inverter communication And COM Output Port port Battery support The rack on the battery Wall bracket A shelf fixed to the wall Power button...
  • Page 4 2.3. Connectors Charge/ Discharge connectors: to connect the Red positive pole (+) and Black negative pole (-) from the battery to the inverter via DC isolator. RS4 85 / CAN: Active communication portal between battery and inverter. USB To RS485 - 1: to get dynamic monitoring data of the battery from upper computer. Address: Reserved Address portal for multiple parallel connections.
  • Page 5: Installation Preparation

    (3) Click "Status" can show the Battery Normal, Warning, Protection status. (4) Click “More” you can read the battery information include Battery Voltage & Temp. Cell 01 to Cell 15 voltage, T1 to T4 temperature, T_MOS, T_ENV. 3. Installation preparation 3.1.
  • Page 6: Installation

    3.2. Tools The following tools are required to install the battery pack: (1) Wire cutter (2) Crimping Plier (3) Screwdriver  Note (1) Use properly insulated tools to prevent accidental electric shock or short circuits. (2) If insulated tools are not available, cover the entire exposed metal surfaces of the available tools, except their tips, with electrical tape.
  • Page 7: Installation Location

    4.2. Installation Location Make sure that the installation location meets the following conditions: (1) The installation site must be suitable for the size and weight of the battery. (2) Must be installed on a firm surface to sustain the weight of battery. (3) The area is waterproof.
  • Page 8: Installing The Battery Pack

    4.3. Installing the Battery Pack CAUTION  To avoid electrical shock or other injury, inspect existing electronic or plumbing installations before drilling holes. The battery is heavy, please manage with care to avoid damage to the product or injury to the installer. (1) Choose a suitable firm wall with thickness greater than 80mm.
  • Page 9 4.4. Parallel battery (1) Parallel battery (Without CAN/RS485 Communication) When the battery needs to be used in parallel, the maximum connection is 15 units. our recommendation is 2-8 units. If your Inverter does not have RS485/ CAN Communication, please manually set the Voltages and amperage based on the number of Batteries and According to your Inverter specifications.
  • Page 10 (2) Parallel battery (With CAN/RS485 Communication) When the battery needs to be used in parallel, the maximum connection is 15 units. our recommendation is 2-8 units. If your Inverter does have CAN/RS485 Communication connect your communication cable between each battery and then to the inverter as per the below diagram.
  • Page 11 (3) Set the master battery Utilizing the BMS software set the battery connected to the inverter as the 1mast,Reference the figure. Slave parallel batteries will set automatically, you do not need to select them manually. Slave parallel batteries will send data to the master battery automatically. Master will receive data integration and transfer to the inverter.
  • Page 12 Wi-Fi Hotspot 5.2 ; Extract Files, extract it into a single folder.
  • Page 13 5.3; Open the Folder , Then right-click ESP-BMS-V1.5 to run as administrator. 5.4 ;Click according to the below pictures in order to link the battery through the WIFI hotspot...
  • Page 14 5.5 ;Click Sample Data to view the real-time data of the battery, the green flashing block under "information" indicates that the link is successful. 5;6 Click Parameter Setting to enter the inverter protocol type setting interface, where you can set the inverter type and parallel battery address.
  • Page 15 5.7;Select User: Admin to enter administrator mode to upgrade the firmware of the battery, in which you can upgrade the newly supported inverter protocol. Suggested computer operating system:  Windows 11 is recommended. The Connected computer software depends on. NET Framework 4.8 architecture running, if you encounter a bit machine running open error, please update the system.
  • Page 16 5.2. Android APP Bluetooth link Install the Wi-Fi-BMS file on your Android phone. After installation, open the Battery management system application on your Android phone.
  • Page 17: Key Points

    Connect the battery via Bluetooth or Wi-Fi on your phone. Key points:  If you have suggestions and requirements, please contact your supplier. We are glad to receive your suggestion. We will continue to optimize and upgrade our products to the the best of our abilities. through collaboration with end users and installers we can always get one step closer to perfection.
  • Page 18: Before Connecting

    6. Warning It is especially important and necessary to read the user manual carefully before installing or using the battery. Failure to follow any of the instructions or warnings in this document can result in electrical shock, severe injury, death, or may damage the battery and the entire system.
  • Page 19: During Operation

    (10) lack of fuse protection between the battery and the inverter (11) Installation by unqualified persons Please register your product via our website https://www.evo-energy.co.za/product-registration in the event of a warranty claim fill in the below warranty card, send a photo of the installation and copy of the installation COC to...
  • Page 20: Warranty Card

    Warranty Card User Information Company/Username: Address: Telephone: Email: Project installation Battery Model: Serial No: Invoice Number: Purchase Date: Dealer: Commission date: Fault/Error Description:...
