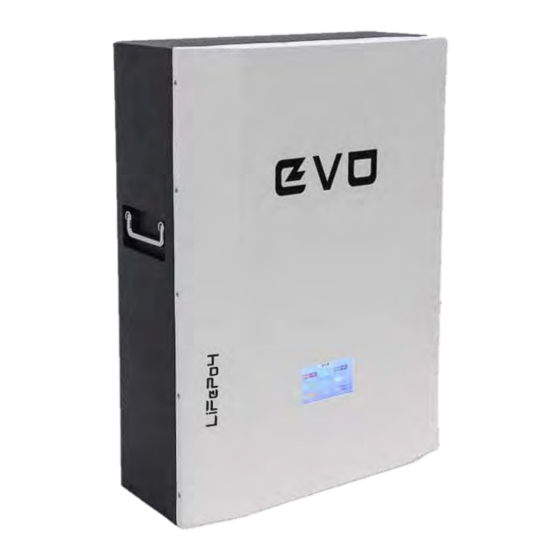

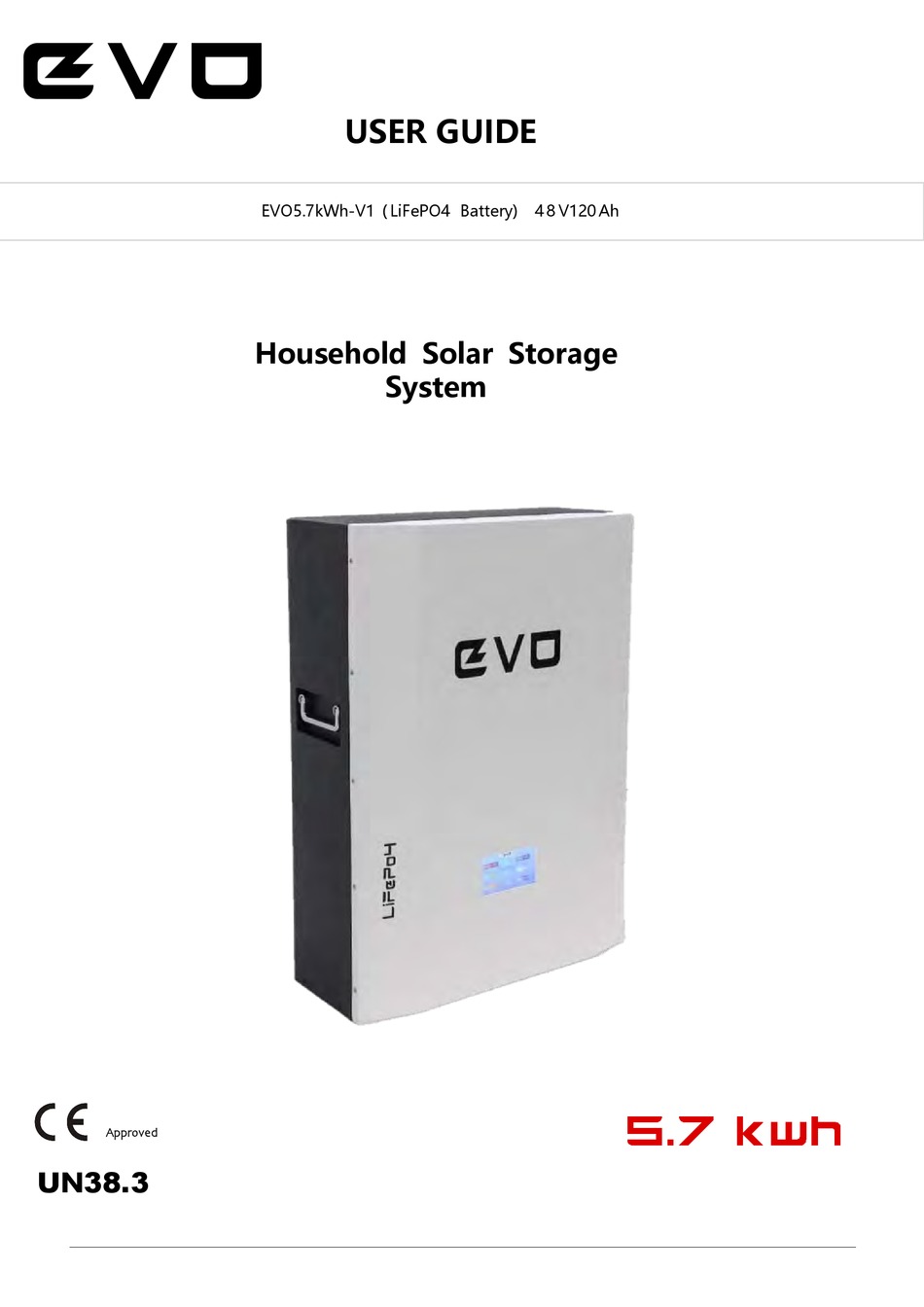

- Page 1 USER GUIDE EVO5.7kWh-V1 ( LiFePO4 Battery) 4 8 V120 Ah Household Solar Storage System Approved UN38.3...
- Page 2 Battery Specifications EVO5.7-V1 Model No Nominal Parameters Voltage Capacity 120Ah Energy 5760Wh Dimensions(L*W*H) 650*475*190mm Weight 68.5kg (approx.) Basic Parameters Storage time/temperature 5 months @ 25℃ ; 3 months @35℃; 1 month @ 45℃ Operation temperature - 10℃~55℃ @ 60±20% Relative Humidity Storage temperature 0℃~45℃...
- Page 3 2 . 2 Interface Introduction Name Silk- screen Remark Positive M6 screw nut/Red Negative M6 screw nut/Black Reset button Reset the BMS Dial switch ADDR Set the battery address RS485 485- 1 Parallel communication port parallel port RS485 485-2 Parallel communication port parallel port Battery and inverter COM Output...
- Page 4 2 . 4 Connectors Charge/ Discharge connectors: to connect the positive pole (+) and negative pole (-) from the battery to the inverter via DC isolator. RS4 8 5 / CAN: Active communication portal between battery and inverter. USB To RS485-1: to get dynamic monitoring data of the battery from upper computer. Address: Reserved Address portal for multiple parallel connections.
- Page 5 （4）Click “More” to view the battery information include the Battery Voltage & Temp. Cell 01 to Cell 15 voltage, T1 to T4 temperature, T_MOS,T_ENV.
- Page 6 3.2 Tools following tools are required to install the battery pack: 工具 Drill and Drill bits 工具 Wire cutter 工具 Crimping Pier 工具 Screw driver 工具 Hammer 工具 Spirit Level 工具 Marking Tool Note 令 Use properly insulated tools to prevent accidental electric shock or short circuits. 令...
-
Page 7: Specification
Quantity Item Specification Battery Pack 48V/120Ah Mounting frame SPCC Mounting frame screw M6*80mm User Guider This document Optional Power Cable (1.0m) 35mm Wire - M8 Optional Parallel Power cable (1.0m) 35mm Wire - M8 Optional Parallel com cable (1.0m) RJ45 4 . - Page 8 CAUTION If the ambient temperature is outside the operating range, the battery pack stops operating to protect itself. The optimal temperature range for the battery pack to operate is 0 ° C to 45 ° C. Frequent exposure to harsh temperatures may deteriorate the performance and life of the battery pack. Minimum clearances Observe the minimum clearances to walls, other batteries or objects as shown in the diagram and picture below in order to guarantee sufficient heat dissipation.
- Page 9 4 . 3 Installing the Battery Pack CAUTION In order to avoid electrical shock or other injury, inspect existing electronic or plumbing installations before drilling holes. The battery is heavy, please handle with care to avoid damage to the product or injury to the installer. Choose a suitable firm wall with thickness greater than 80 mm.
- Page 10 4 . 4 Parallel use of battery 令 Parallel use of battery ( Without CAN/RS485 Communication) When the battery needs to be used in parallel, the maximum connection is 15 units. our recommendation is 2-8 units. In the event that your Inverter does not have RS485/ CAN Communication please manually set the Voltages and amprages based on the number of Batteries and According to your Inverter specifications.
- Page 11 令 Parallel use of battery ( With CAN/RS485 Communication) When the battery needs to be used in parallel, the maximum connection is 15 units. our recommendation is 2-8 units. In the event that your Inverter does have CAN/RS485 Communication connect your communication cable between each battery and then to the inverter as per the below diagram.
- Page 12 DO NOT connect the battery with different types of battery; DO NOT connect the battery to incompatible inverters, please ask and approved EVO distributor if a inverter is compatible; In case of fire, only a dry powder fire extinguisher can be used, liquid fire extinguishers are prohibited;...
- Page 13 6 .1 For the warranty information please refer to www.evo-energy.co.za 6.2 Factory Warranty Scope The factory warranty does not cover damages caused by following reasons: Breaking the product seal (the casing opened) 令 Transport damage 令 Incorrect installation or commissioning 令...
-
Page 14: Warranty Card
Email: Project installation location: Product Information Battery Model: Serial No: Invoice Number: Purchase Date: Dealer: Commission date: Fault/Error Description: Please fill the required information in and send this page to warranty@evo- energy.co.za when you need to apply warranty service support.
