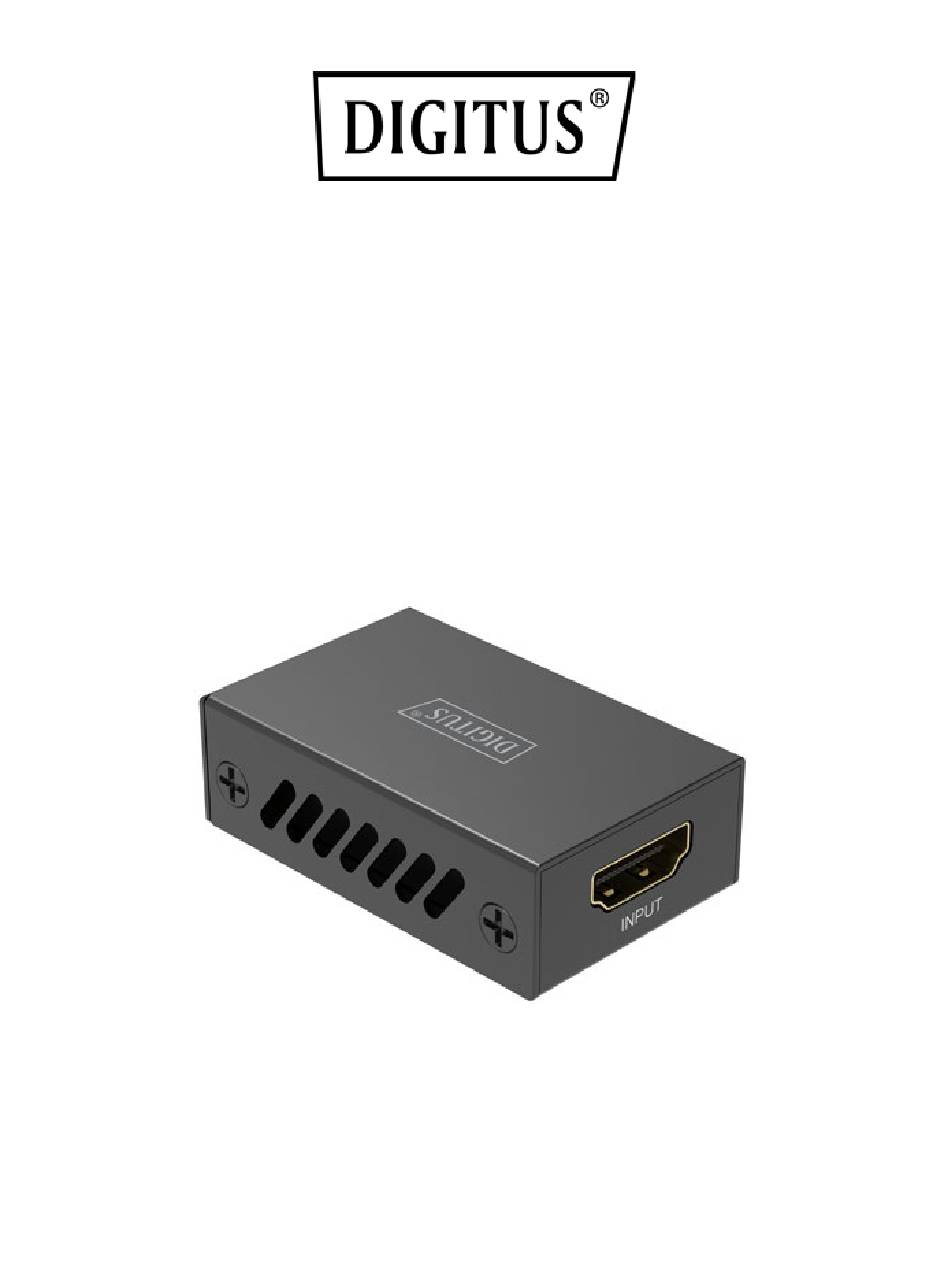

- Page 1 HDMI REPEATER, 8K/60Hz Quick Installation Guide DS-55341...
-
Page 2: Main Features
1. Introduction The DIGITUS® 8K HDMI Repeater extends signals in 8K/60Hz (4:4:4) up to 10 m. 4K/60Hz (4:4:4) can be extended to up to 13 m. Two corresponding HDMI cables can be cascaded with the repeater. Thanks to its special design, the repeater is also supplied with power via HDMI (5V). -
Page 3: Package Content
(signal source) thanks to special self-powered design Optional (additional) power supply • with enclosed USB-C cable if the setup requires. Max. resolution: 8K/60Hz (4:4:4) • Video bandwidth: 48 Gbps • HDMI 2.1 • • Supports HDCP 2.3 Supports Deep Color (36-bit) •... -
Page 4: Technical Features
4. Technical Features 1x HDMI input (8K/60Hz) 1x HDMI output Connections (8K/60Hz) 1x USB-C input (DC 5V) – Optional power supply Operating 0-70° temperature Power approx. 1W consumption Housing Metal Dimensions L 5.0 x W 3.1 (housing) x H 1.5 cm Weight 40 g Color... -
Page 5: Connection And Operation
Note: 1. We recommend adding the USB-C Power cable (included) for the product when the HDMI cable can’t draw enough power from the video source. 5. Connection and Operation 1. Connect the output of the video source into the input of HDMI Repeater and connect the output to the HDMI display via HDMI Cable. -
Page 6: Connection Diagram
6. Connection Diagram Blu-ray DVD HDMI Cable HDMI Cable HDTV... - Page 7 Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. info@assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
