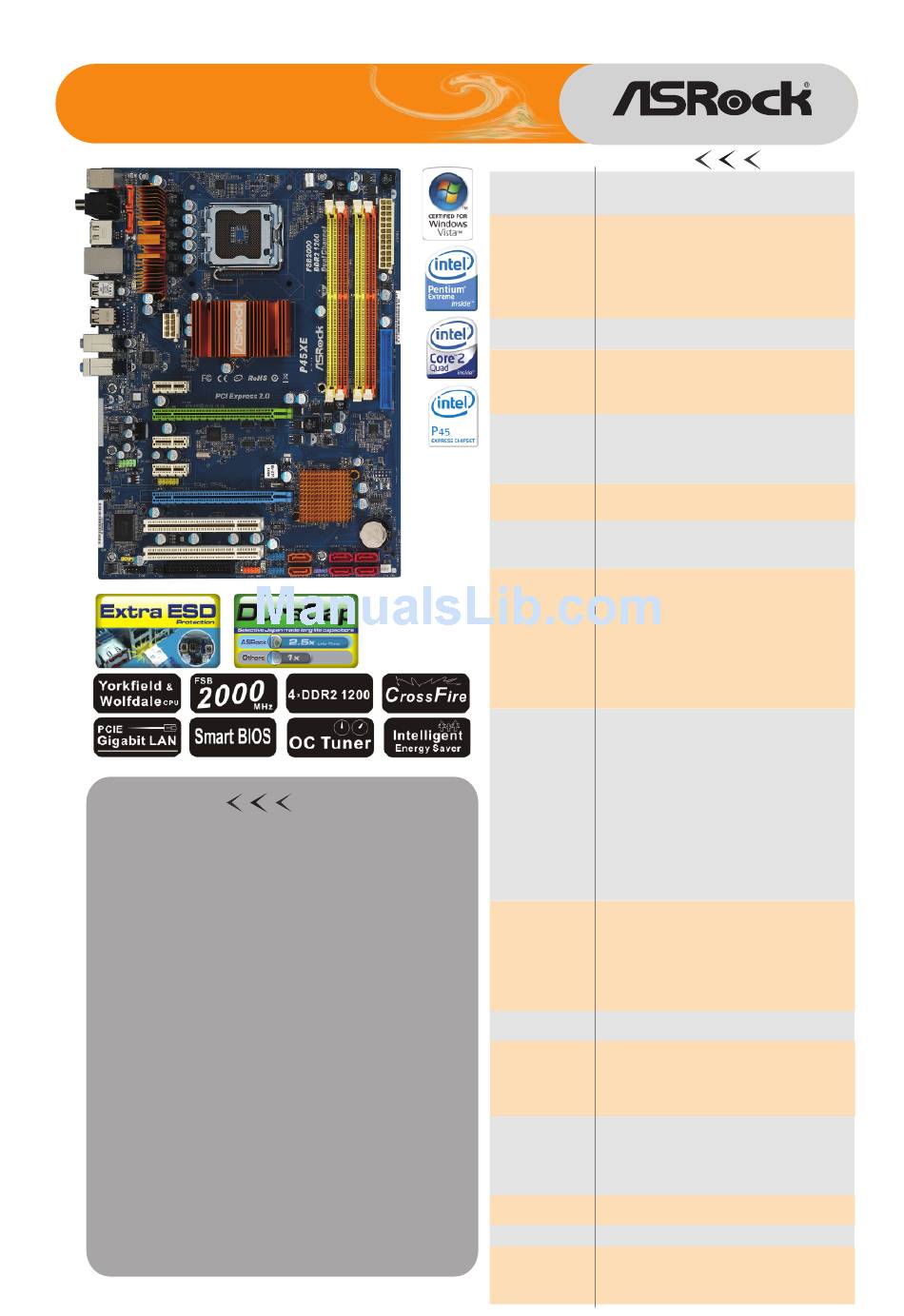

ASROCK P45XE Brochure

P45XE
Intel P45+ ICH10 Chipsets
®
Product Brief
- ASRock DuraCap (2.5 x longer life time),
100% Japan-made high-quality Conductive
Polymer Capacitors
- Compatible with FSB 2000 MHz CPU
- Supports Dual Channel DDR2 1200
- Supports Smart BIOS, ASRock OC Tuner,
Intelligent Energy Saver, Extra ESD Protection
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
www.as rock.com
Detail Specification
Platform - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
- All Solid Capacitor design (100% Japan-made high-
quality Conductive Polymer Capacitors)
CPU
- LGA 775 for Intel
Core 2 Duo / Pentium
TM
/ Celeron , supporting Penryn Quad Core Yorkfield and
®
Dual Core Wolfdale processors
- Compatible with FSB2000/1600/1333/1066/800 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- Northbridge: Intel
- Southbridge: Intel
- Dual Channel DDR2 memory technology
Memory
- 4 x DDR2 DIMM slots
- Supports DDR2 1200/1066/800/667 non-ECC, un-
buffered memory
- Max. capacity of system memory: 8GB
- Supports ATI TM

Expansion Slot

- 2 x PCI Express 2.0 x16 slots (green @ x16 mode, blue
@ x8 mode)
- 3 x PCI Express x1 slots
- 2 x PCI slots
Audio
- 7.1 CH Windows
(ALC888 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111B/RTL8111C
- Supports Wake-On-LAN
Rear Panel I/O ASRock SPDIF I/O Plus
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 2 x eSATAII Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
- HD Audio Jack: Side Speaker / Rear Speaker / Central /
Bass / Line in / Front Speaker / Microphone
Connector
- 6 x SATAII 3.0 Gb/s connectors, support NCQ, AHCI and
Hot Plug functions
- 2 x eSATAII 3.0 Gb/s connectors (shared with 2 SATAII
ports)
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x USB/WiFi header
BIOS Feature
- 8Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree Overclocking
- SMBIOS 2.3.1 Support
- CPU, DRAM, NB, SB,VTT Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
- Supports Smart BIOS
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
- ASRock OC Tuner
Unique Feature
- Intelligent Energy Saver
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft Windows
®
Vista 64-bit compliant
TM
Certifications
- FCC, CE, WHQL
Accessories - Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
- 4 x SATA Data Cables (Optional)
- 1 x SATA 1 to 1 Power Cable (Optional)
Core 2 Extreme / Core 2 Quad /
® TM TM
Dual Core / Celeron Dual Core
® ®
P45
®
ICH10
®
CrossFire TM
Vista™ Premium Level HD Audio
®
2000 / XP / XP 64-bit / Vista /
® TM
