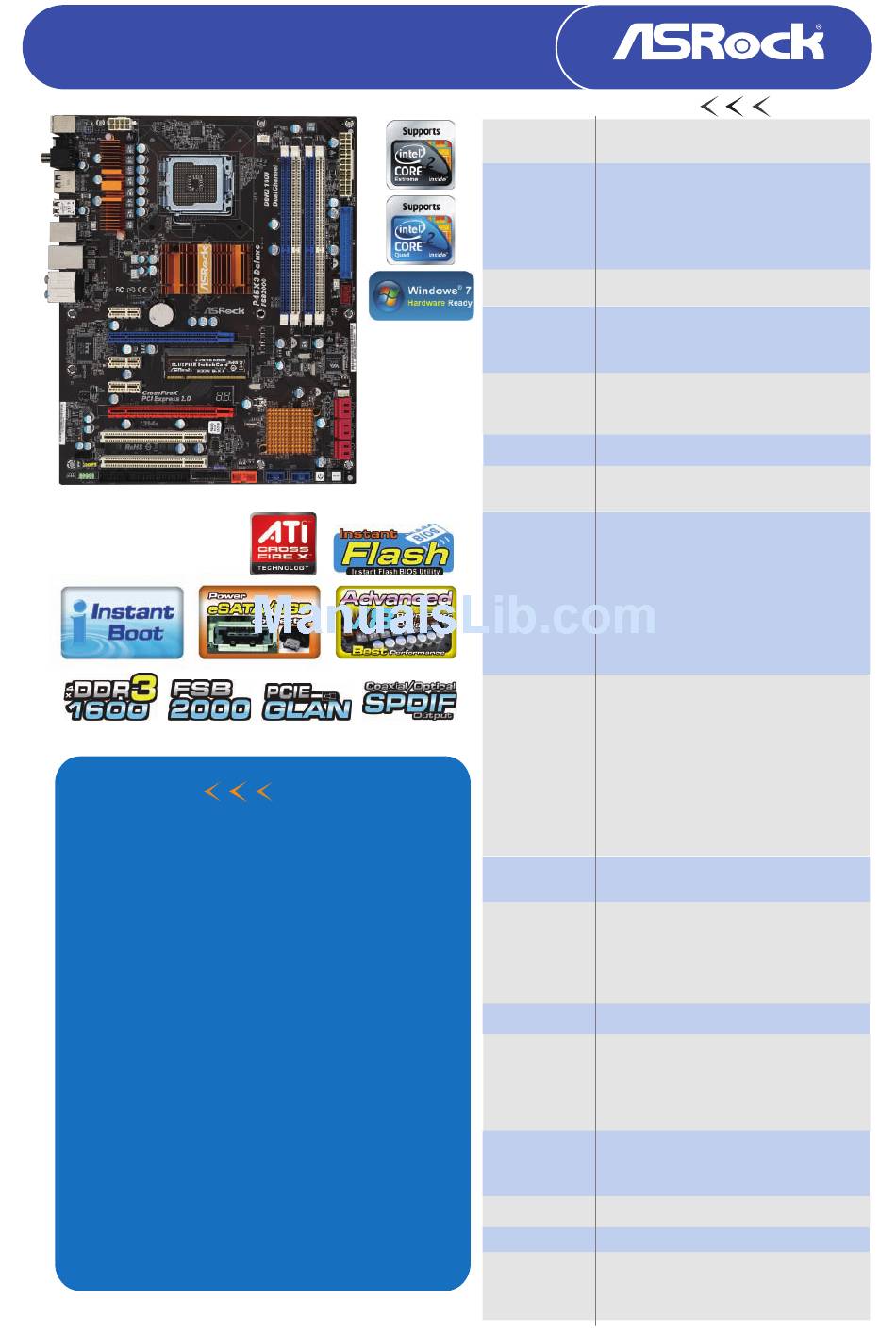

ASROCK P45X3 DELUXE Brochure

P45X3 Deluxe
®
Intel P45+ ICH10 Chipsets
Product Brief
- Advanced V8 Power Phase Design
- ASRock DuraCap (2.5 x longer life time)
- Compatible with FSB2000 MHz CPUs
- Supports Dual Channel DDR3 1600
- Supports ATI™ CrossFireX™
- Supports 2 x IEEE1394 ports,
PCIE Gigabit LAN
- Supports ASRock Instant Boot,
Instant Flash, OC Tuner, Smart BIOS,
Intelligent Energy Saver
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
ww w. a s ro ck. c om
Detail Specification
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Platform
- All Solid Capacitor design (100% Japan-made high-
quality Conductive Polymer Capacitors)
CPU - LGA 775 for Intel
TM
Core 2 Duo / Pentium
/ Celeron ® , supporting Penryn Quad Core Yorkfield and
Dual Core Wolfdale processors
- Compatible with FSB2000/1600/1333/1066/800 MHz
- Advanced V8 Power Phase Design
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
- Northbridge: Intel
Chipset
- Southbridge: Intel
- Dual Channel DDR3 memory technology
Memory
- 4 x DDR3 DIMM slots
- Supports DDR3 1600/1333/1066/800 non-ECC,
un-buffered memory
- Max. capacity of system memory: 16GB
- 2 x PCI Express 2.0 x16 slots (blue @ x16 mode,
Expansion Slot
orange @ x8 mode)
- 3 x PCI Express x1 slots
- 2 x PCI slots
- Supports ATI
- 7.1 CH Windows
Audio
(ALC888 Audio Codec)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
I/O Panel
Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 1 x IEEE 1394 Port
- 7 x Ready-to-Use USB 2.0 Ports
- 1 x Powered eSATAII/USB Connector
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Side Speaker / Rear Speaker / Central /
Bass / Line in / Front Speaker / Microphone
Connector - 6 x SATAII 3.0 Gb/s connectors, support NCQ, AHCI and
Hot Plug functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- 1 x TPM header
- CPU/Chassis/NB/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x Power Switch with LED
Quick Switch
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED
- 8Mb AMI BIOS
BIOS Feature
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM,VTT Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
- Supports Smart BIOS
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
- ASRock OC Tuner
Unique Feature
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- CPU Temperature Sensing
Hardware Monitor
- Chassis Temperature Sensing
- CPU/Chassis/NB/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft ® Windows
Vista TM 64-bit compliant
Certifications - FCC, CE, WHQL
- 1 x ASRock SLI/XFire Switch Card
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
- 4 x SATA Data Cables (Optional)
- 1 x SATA 1 to 1 Power Cable (Optional)
® TM TM
Core 2 Extreme / Core 2 Quad /
® ®
Dual Core / Celeron Dual Core
® P45
® ICH10
TM TM
CrossFireX
® Vista™ Premium Level HD Audio
® 2000 / XP / XP 64-bit / Vista TM /
