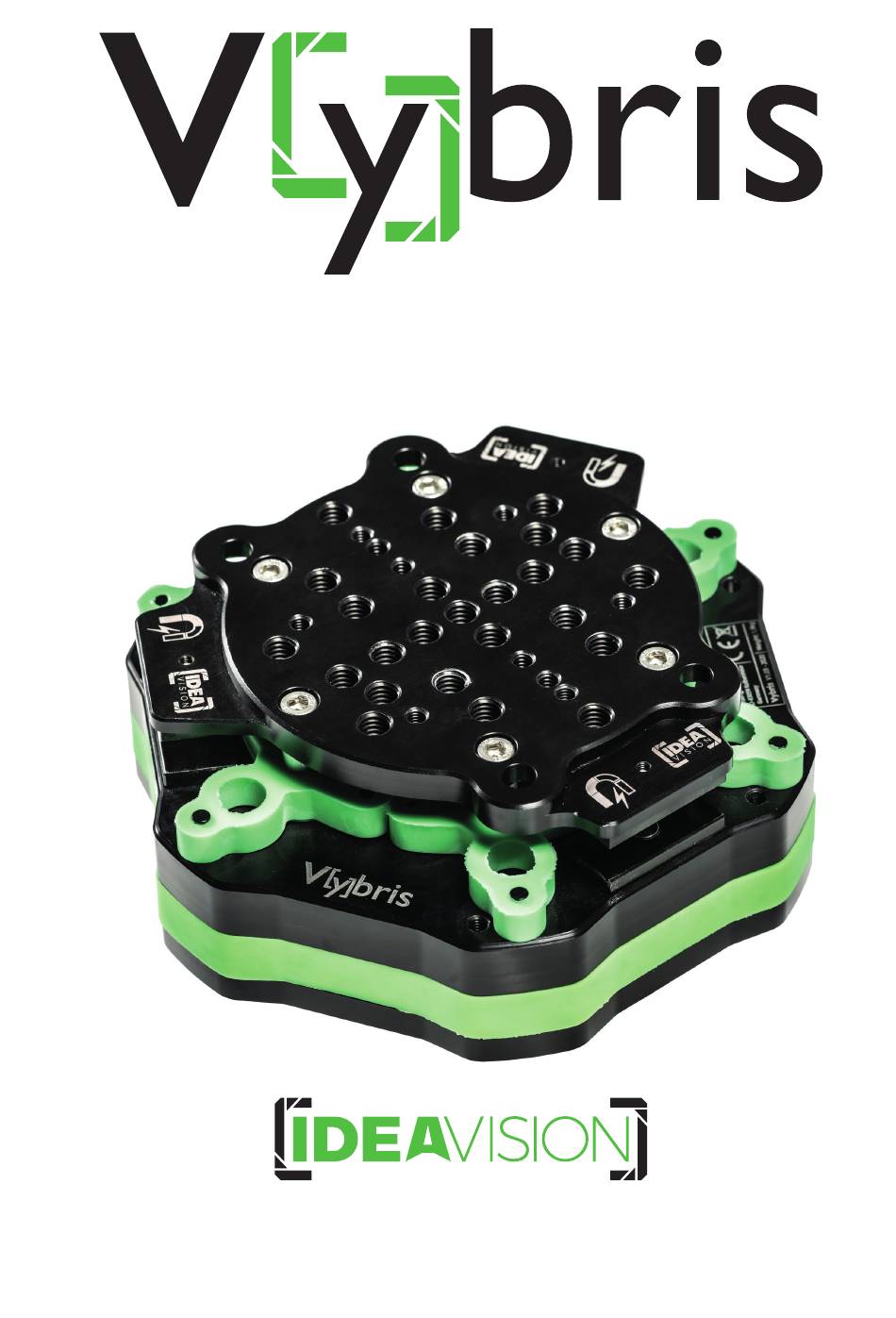

- Page 1 Instruction Manual www.idea-vision.de...
- Page 2 changing rubber/plate exchange x/y damper 1. x/y damper 2. distance sleeve 34mm 3. top plate 4. screw M6 x 45mm...
- Page 3 Mounting method screws depth max. 8mm When mounting Vybris don‘t use to long screws. Thread holes max 8 – 10 mm depth...
- Page 4 Hole pattern hole pattern Top plate = bottom plate 25,40 12,70 6 x M6 4 x 1/4-20 UNC 25 x 3/8-16 UNC...
- Page 5 M6 x 45mm - Loosen the 6 screws on top of Vybris - Possibility to replace dampers for X and Y Axis M6 x 30mm - Turn around the Vybris (bottom up) - Loosen the 6 screws on bottom of Vybris...
- Page 6 - Small damper – silicone nipple up - Assemble each part to the same place as before. - Start with bottom of Vybris. Put in the 6 screws. Tighten them slowly always opposite direction Big damper – silicone nipple down...
- Page 7 - Turn around the Vybris (Top up). - Make sure to align the screw holes. - Put in the 6 screws. Tighten them slowly always opposite direction max torque 12Nm...
- Page 8 Mounting underslung overslung mount camera camera mount Payload (Depending on how it is used) optimum M Roll damper optimum XL Roll damper 100% kg / lbs 10kg 20kg 30kg 40kg 50kg 22 lbs 44 lbs 66 lbs 88 lbs 110 lbs optimum S Roll damper optimum L Roll damper 8-22 kg / 17-48 lbs (optimum 10-20 kg 22-44 lbs)
- Page 9 Mounting Mitchell female Loosen six screws of bottom plate Mount risers to Mitchell female plate Mount Vybris bottom plate to risers/Mitchell female...
- Page 10 Mount Vybris bottom plate to Vybris. Put in the 6 screws. Tighten them slowly, always opposite direction. Ready!
- Page 11 Mounting Mitchell Loosen six screws of top plate Exchange top plate to Mitchell male plate. Ready! Put in the 6 screws. Tighten them slowly, always opposite direction.
- Page 12 Mounting IDEA VISION GmbH Anzengruberstr. 16 83059 Kolbermoor D-Germany www.idea-vision.de Phone: +49 (0)8031 9085795 contact@idea-vision.de...
