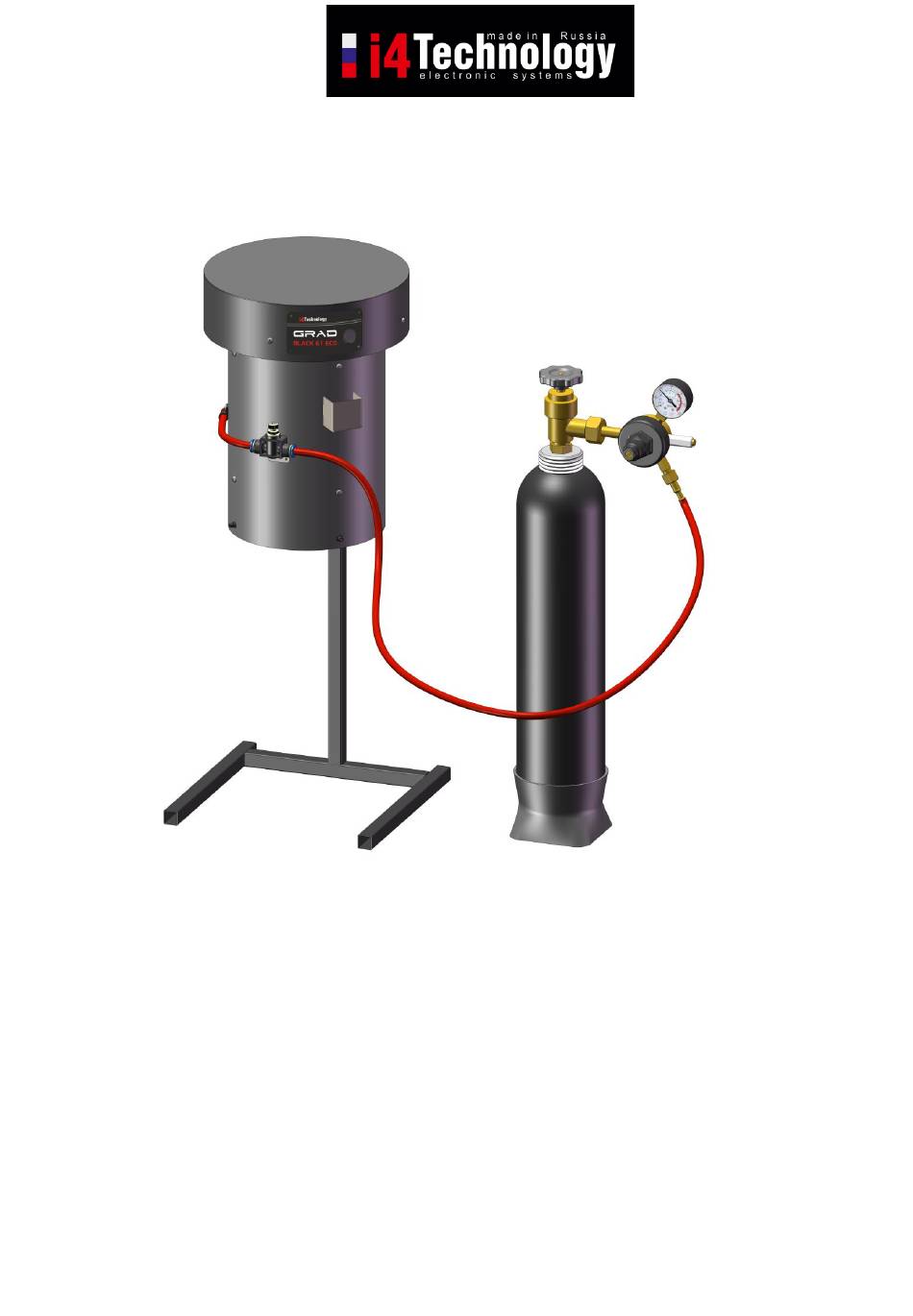

- Page 1 Technology LLC Mosquito killing system GRAD Black G1 ECO User Manual...
-
Page 2: Table Of Contents
Table of contents Device description and operation 1.1 Description 1.2 Technical specifications 1.3 Package content 1.4 Configuration and functioning Intended use 2.1 Operating restrictions 2.2 Device usage 2.3 CO information Maintenance Packaging, storage and transportation Manufacturer warranty... -
Page 3: Device Description And Operation
This User Manual contains key features, operating instructions (intended use, maintenance, repair, storage and transportation) of GRAD Black G1 ECO mosquito killing system (hereinafter – device). Before using the device, please carefully read this User Manual. The device has a long service life and works efficiently if used according to the Manual’s recommendations. -
Page 4: Package Content
1.3 Package contents 1.3.1 Package contents are shown in Table 1. Table 1 № Description Quantity GRAD Black G1 ECO» mosquito killing system: – main unit – support Gas-pressure reducer Mesh bag Clamp for fixing hose on the gas-pressure reducer Packaging М4х16 screw... -
Page 5: Intended Use
Halogen bulbs are installed under the device’s cover. Light bulbs heat the housing up to body temperature of a human or warm-blooded animal and illuminate the mosquito suction zone. An engine with a fan is located inside the housing. Attracted to the device by heating, CO smell of an attractant, insects get sucked by the fan inside the main unit through a gap located between the cover and the housing. -
Page 6: Co Information
valve on the cylinder for 1-2 seconds, then close the valve). 3. Connect gas supply hose to the gas pressure reducer and secure it with the supplied clamp. 4. Cut off the bumps from the G-mosquito blister using a knife. Insert the blister in the attractant pocket (item 8). -
Page 7: Maintenance
A cylinder with carbon dioxide with a volume of 10 liters is sufficient for 7-8 days of operation (a 40 liter cylinder - for 28-30 days). Please, use purified carbon dioxide only. Gas with impurities significantly reduces the effectiveness of the device. The most effective is carbon dioxide obtained by fermentation (a by- product in the manufacture of beer, alcohol). - Page 8 In gas pressure reducer tuning sheet specified: 1) the rotameter readings show the calculated flow rate of the gas coming out of the reducer necessary for the operation of the device. These values are preset by the manufacturer and must not be changed, 2) the readings on the outlet pressure gauge are the gas pressure readings which provide the necessary flow rate.
-
Page 9: Packaging, Storage And Transportation
Manufacturer has the right to amend and change the device characteristics to improve its efficiency. Manufacturer's technical support: www.en.i4technology.ru © Copyright i4 Technology LLC, 2005-2024. All rights reserved. Questions concerning the replacement and after-sales service should be directed to the...
