- Page 1 I4-technology LLC Russian vendor and manufacturer of high-tech electronics Professional rodents and insects repeller "GRAD A-1000 PRO +" User manual INTK.433523.005 RE...
-
Page 2: Table Of Contents
CONTENTS Device description and operation. 1.1 Device application. 1.2 Technical specifications. 1.3 Device components. 1.4 Structure and functioning. Intended use 2.1 Operating restrictions 2.2 Device usage Maintenance. 3.2 Current repair. Troubleshooting Packaging, storage and transportation. Acceptance Certificate. Manufacturer warranty. -
Page 3: Device Description And Operation

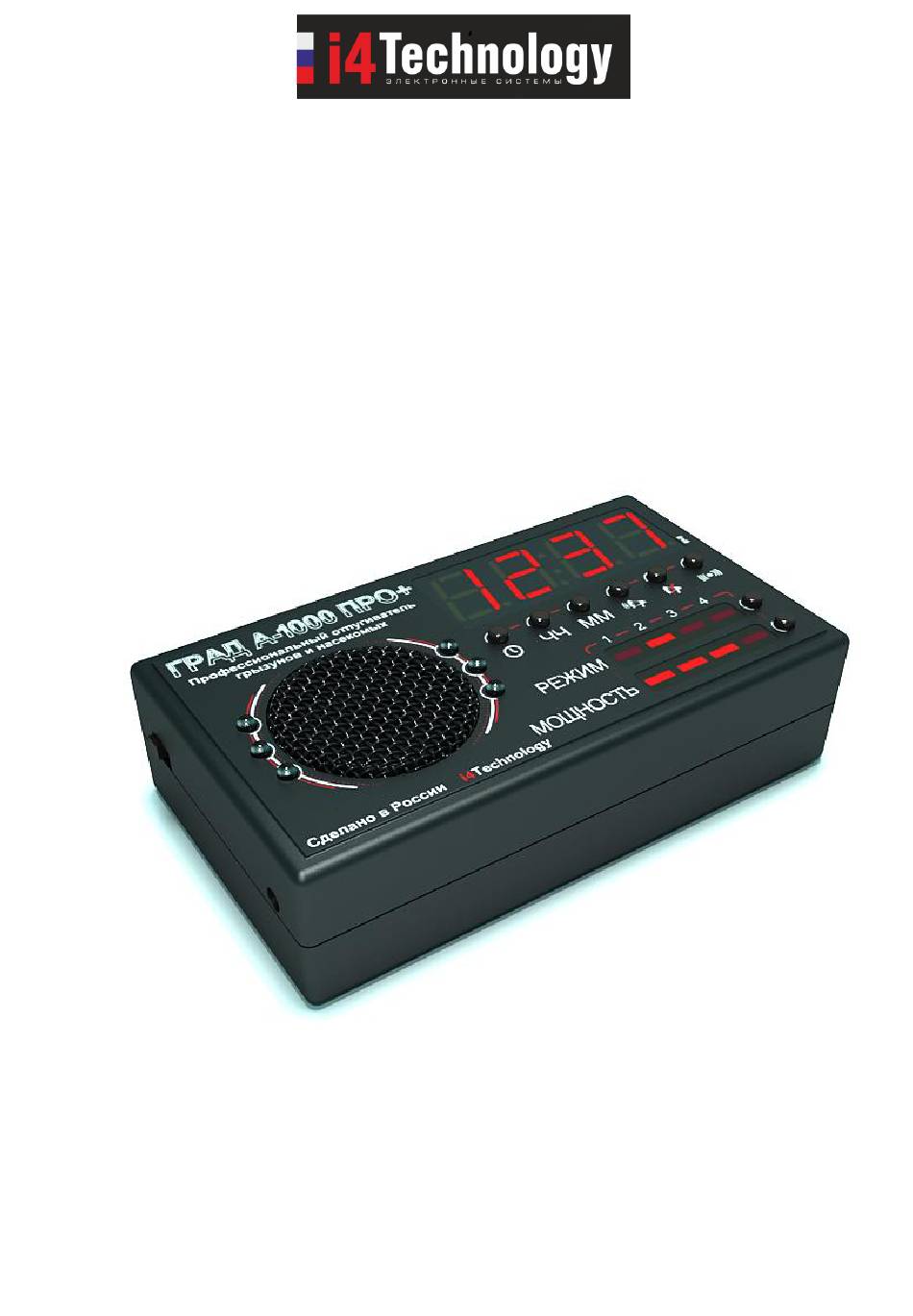

The User Manual includes key features, operating instructions (intended use, maintenance, repair, storage and transportation) of professional rodents and insects repeller "GRAD A-1000 PRO +" (hereinafter - device). Before using the device, please, carefully read the supplied User Manual. Following the instructions, restrictions and guidelines contained in User Manual will extend the life of the de- vice and allow you to use it most effectively. - Page 4 Figure 1. Visual appearance of the device 1.2.2 Dimensions, mm …….…………..………….………............….. 109 х 65 х 25 1.2.3 Weight, kg..….………………..…………………………………….………………..……….…..…. 0,12 1.2.4 Device shipping weight, including external power source, kg ………….……………………….….. 0,47 1.2.5 DC supply voltage for operation from the external source, V……………………………from 12 up to 20 1.2.7 Maximum current consumption by the device, mA.……………….……………...
-
Page 5: Device Components
1.2.13 Number of emission power control levels …………………………………………………………..4 Level 1 – 25%; Level 2 – 50%; Level 3 – 75%; Level 4 – 100% 1.2.14 Possibility of additional emission in the light range ……………..…………………………….…. Yes 1.2.15 Possibility to turn off the light emission ………………………………………………….………. Yes 1.2.16 Protection from rodents habituation ………………………………..……………………..………. -
Page 6: Structure And Functioning
- Power button (item 3) - Jack for external power source (item 4) - LED indicator of mode selection (item 5) - Mode selection button (item 6) - LED indicator of sound level (item 7) - Selection button of sound emission (item 8) - LEDs (item 9) - Clock and timer button (item 10) - Digital clock display (item 11) - Page 7 - press and hold button until all digits on display start to flash. It means that device is now in the clock setting mode; - in order to set up the current time press buttons - Hours and - Minutes. Press and hold the button in order to set up minutes while the figures on the display in the minutes range will be changed automatically.
- Page 8 clock mode, it means that the data is stored in the memory, day of the week is set. - press and hold button until all digits on display start to flash. It means that device is now in clock mode; et up the time - "12 hours", by repeatedly pressing the button and "30 Minutes"...
- Page 9 until the display switches to the clock mode – on-time is set. - press and hold the button Note: To set the device on-time on other days of the week, repeat the same procedure for each of the days. b) The device off-time set up on Tuesday at 20:08, 07:10 - press and hold button until the first digit on display starts to flash;...
-
Page 10: Maintenance
2.2.4 You can disable the LEDs in expelling mode of the device by to pressing and holding for more than 2 seconds the button "Mode". 2.2.4 The device can be used in small spaces at full capacity in this way the efficiency will only increase. 2.2.5 In the case of people presence in the next room to the operating device, you can reduce the power of emission or switch to silent mode. -
Page 11: Manufacturer Warranty
Manufacturer reserves the right to amend or change the characteristics of the device, improving its consumer properties. Manufacturer's technical support: www.i4technology.ru © Copyright I4 technologey LLC, 2005-2013. All rights reserved. Questions concerning the exchange after-sales service should be applied to the distributor that completed a sale. - Page 12 Warranty Certificate Product: Professional rodents and insects repeller "GRAD A-1000 PRO +" INTK.433523.005 TU Serial number _________________________________________________________________________ Manufacture date ________________________________________________________________________ Quality Department stamp ____________________________________________________________________ Date of purchase _____________________________________________________________________________ Seller’s signature and stamp _________________________________________________________________ I do not have any claim against quality of the device, its package and technical state _____________________ (Customer’s signature)
