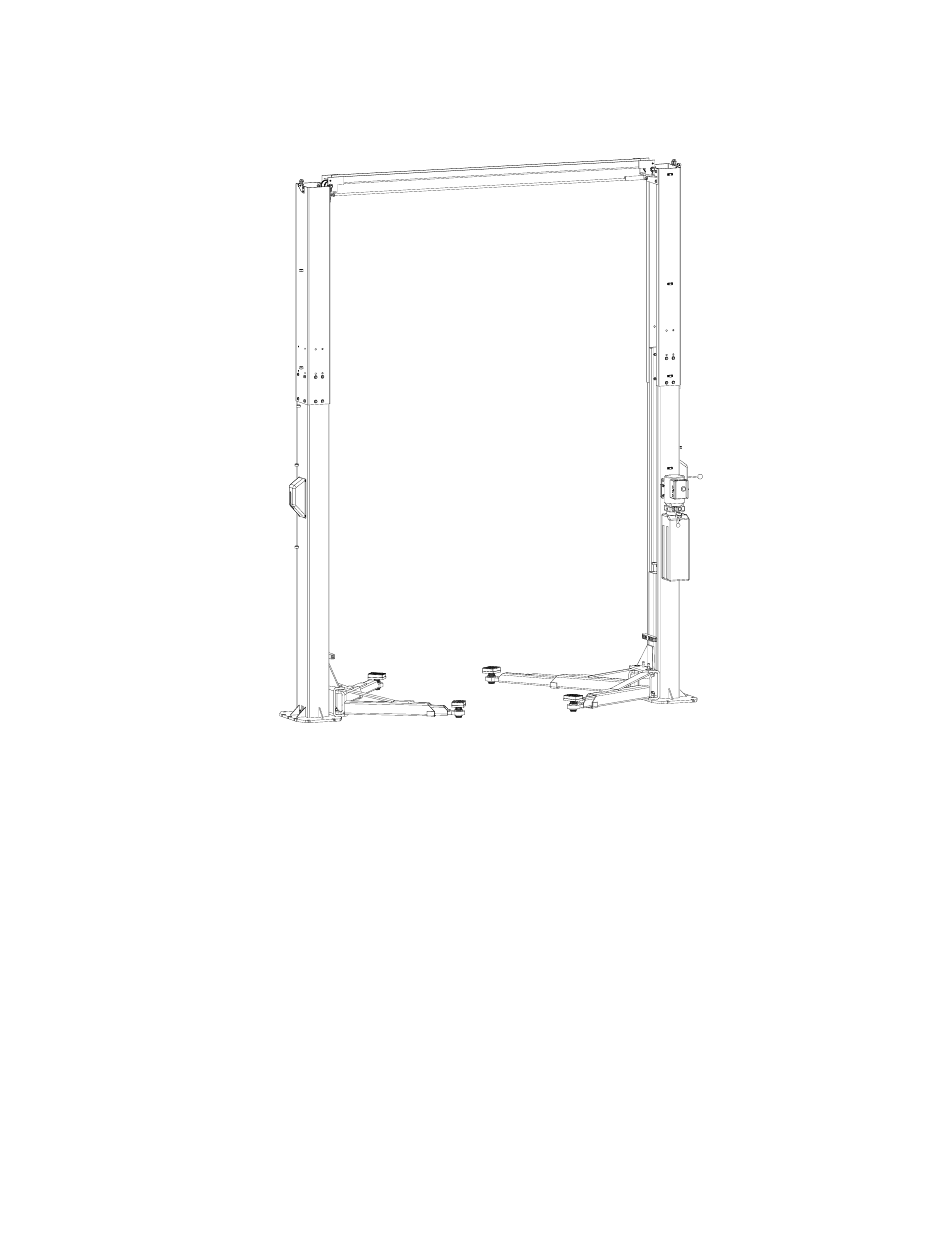

12K Two Post
Surface Mounted Lift
I
NSTALLATION
M
EELR537A / EELR738A
ODELS
309 Exchange Avenue, Conway, Arkansas, 72032
IMPORTANT:
, O
& M
PERATION
12,000
. C
LBS
APACITY
3000
.
LBS
PER
Snap-on Equipment
Tel: 501-450-1500
Fax: 501-450-1585
READ THIS MANUAL COMPLETELY BEFORE
INSTALLING or OPERATING LIFT
AINTENANCE
A
RM
M
ANUAL
Rev. B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Snap-on Equipment EELR537A
Summary of Contents for Snap-on Equipment EELR537A
- Page 1 12K Two Post Surface Mounted Lift & M NSTALLATION PERATION AINTENANCE ANUAL EELR537A / EELR738A ODELS 12,000 APACITY 3000 Snap-on Equipment 309 Exchange Avenue, Conway, Arkansas, 72032 Tel: 501-450-1500 Fax: 501-450-1585 IMPORTANT: READ THIS MANUAL COMPLETELY BEFORE INSTALLING or OPERATING LIFT...
-
Page 2: General Specifications
Model EELR537A / EELR738A Installation, Operation and Maintenance ENERAL PECIFICATIONS See Figure 1 EELR537A / EELR738A EELR537A / EELR738A with 2 Ft. Ext. Kit 13’-10"/14’-7” Overall Height (4216 mm/4445 mm) 167"/176” Ceiling Height Required 191"/200” (4242mm/4470mm) (4852mm/5080mm) 15’-3 ½"/16’-½” 13’-3 ½"/14’-½”... -
Page 3: Vertical Clearance
Model EELR537A / EELR738A Installation, Operation and Maintenance Safety decals similar to those shown here ERTICAL LEARANCE are found on a properly installed lift. Be sure Check the height of the area where the lift is to that all safety decals have been correctly be installed. -
Page 4: Installation
Model EELR537A / EELR738A Installation, Operation and Maintenance ECEIVING NSTALLATION The shipment should be thoroughly inspected as AFETY EQUIREMENTS FOR NSTALLATION AND soon as it is received. The signed bill of lading is ERVICE acknowledgement by the carrier of receipt in... - Page 5 Model EELR537A / EELR738A Installation, Operation and Maintenance NCHORING 4) The anchor bolts must be installed at least 8” from any crack, edge, or expansion joint. 5) Use a concrete hammer drill with a 3/4 inch carbide bit. Tip diameter should conform to ANSI Standard B94.12-1977 (.775 to .787).
- Page 6 Model EELR537A / EELR738A Installation, Operation and Maintenance Fig. 5 – Synchronizing Cables & H OWER YDRAULIC INES 19) Mount Power Unit to power column as shown in Fig. 6 using (4) M8 hex bolts and nuts. Fig. 6 – Hose Routing 20) Attach Hydraulic elbow fitting threading the O-Ring end into the power unit.
-
Page 7: Lock Release
Model EELR537A / EELR738A Installation, Operation and Maintenance ELEASE 27) Install Lock Release Rod, Clevis, and Knob to the Power Column Lock using one M10 Nut. 28) Attach Mechanical Lock Release Cable Assembly to each lock pawl. See Fig. 8. - Page 8 Model EELR537A / EELR738A Installation, Operation and Maintenance 40) Connect Contactor to Power unit as shown. 45) Raise lift 6 inches. Repeat step 42 until no air Connect Contactor to suitable electrical comes out of cylinder. source as shown. 46) Pressure test hydraulic system. Energize...
- Page 9 Model EELR537A / EELR738A Installation, Operation and Maintenance Fig 11 – Electrical Wiring Diagram Page 9 Rev. B EAZ0170V09A...
-
Page 10: Operation Procedure
Model EELR537A / EELR738A Installation, Operation and Maintenance 1, ALI Lifting it Right safety manual; ALI/ST-90 ALI PERATION ROCEDURE Safety Tips card; ANSI/ALI ALOIM, American AFETY OTICES AND ECALS National Standard for Automotive Lifts-Safety Requirements for Operation, Inspection and This product is furnished with graphic safety Maintenance;... -
Page 11: Lifting A Vehicle
Model EELR537A / EELR738A Installation, Operation and Maintenance IFTING A EHICLE OSS OF POWER 1) Ensure that the lifting arms are parked, out to If for any reason the lift will not rise off the locks or full drive thru position. -
Page 12: Maintenance
Model EELR537A / EELR738A Installation, Operation and Maintenance AINTENANCE Monthly To avoid personal injury, permit only qualified • Torque concrete anchor bolts to 80 ft-lbs. personnel to perform maintenance on this • Check overhead shutoff switch. While raising lift, equipment. Maintenance personnel should follow lockout/tagout instructions per ANSI Z244.1. -
Page 13: Parts Breakdown
3/4”x5- 1/2” Concrete Anchor 31058 IMPORTANT Replace all worn or broken parts with genuine Snap-on Equipment parts. Contact your local Snap-on Equipment parts distributor for pricing and availability. Call Snap-on Equipment at (501) 450-1500 for the distributor in your area. - Page 14 X10-040 M12 NUT IMPORTANT Replace all worn or broken parts with genuine Snap-on Equipment parts. Contact your local Snap-on Equipment parts distributor for pricing and availability. Call Snap-on Equipment at (501) 450-1500 for the distributor in your area. Page 14 Rev.
- Page 15 AB-9367-DLH POWER UNIT IMPORTANT Replace all worn or broken parts with genuine Snap-on Equipment parts. Contact your local Snap-on Equipment parts distributor for pricing and availability. Call Snap-on Equipment at (501) 450-1500 for the distributor in your area. Page 15 Rev.
- Page 16 X10-053 M12 x 45mm BOLT IMPORTANT Replace all worn or broken parts with genuine Snap-on Equipment parts. Contact your local Snap-on Equipment parts distributor for pricing and availability. Call Snap-on Equipment at (501) 450-1500 for the distributor in your area.
- Page 17 M8 x 8 Set Screw Cup Point IMPORTANT Replace all worn or broken parts with genuine Snap-on Equipment parts. Contact your local Snap-on Equipment parts distributor for pricing and availability. Call Snap-on Equipment at (501) 450-1500 for the distributor in your area.
- Page 18 Model EELR537A / EELR738A Installation, Operation and Maintenance NOTES Page 18 Rev. B EAZ0170V09A...
- Page 19 Model EELR537A / EELR738A Installation, Operation and Maintenance Product Change Notice REV. DESCRIPTION DATE DG08593 New release. 13DEC2023 DG08635 Modify safety decal placement on page 8. 28FEB2024 Page 19 Rev. B EAZ0170V09A...
