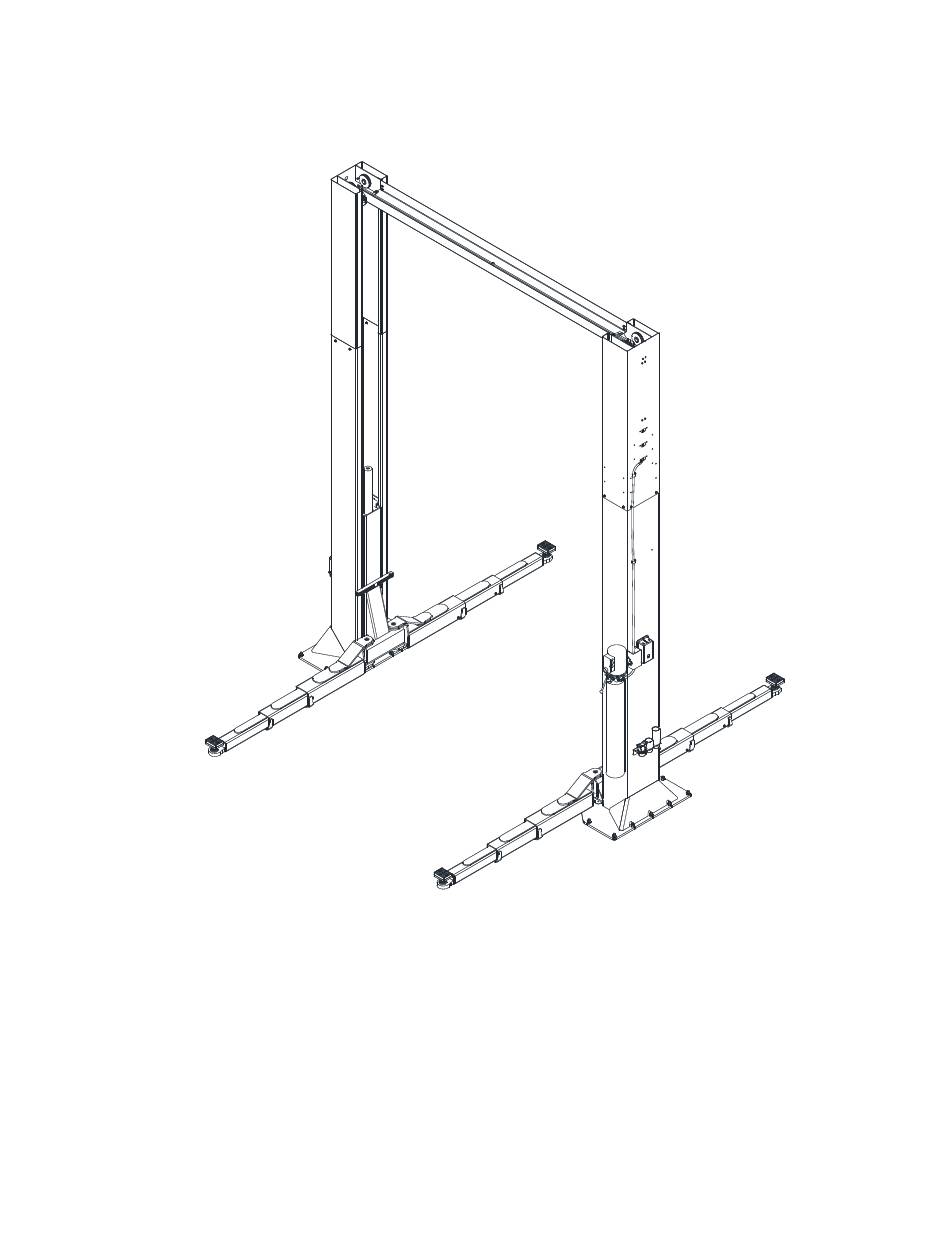

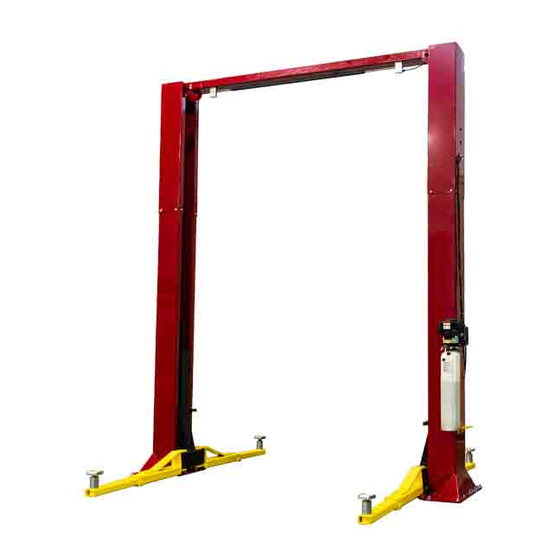

Installation, Operation & Maintenance Manual
Two Post Surface Mounted Lift
M
EELS540A, EELS541A
ODELS
EELS743A, EELS744A
16,000
. C
- 4000
. P
A
LBS
APACITY
LBS
ER
RM
309 Exchange Avenue, Conway, AR 72032
TEL: 800-225-5786
IMPORTANT:
READ THIS MANUAL COMPLETELY BEFORE
INSTALLING or OPERATING LIFT
EAZ0080V84A - Rev. 07/29/2021
