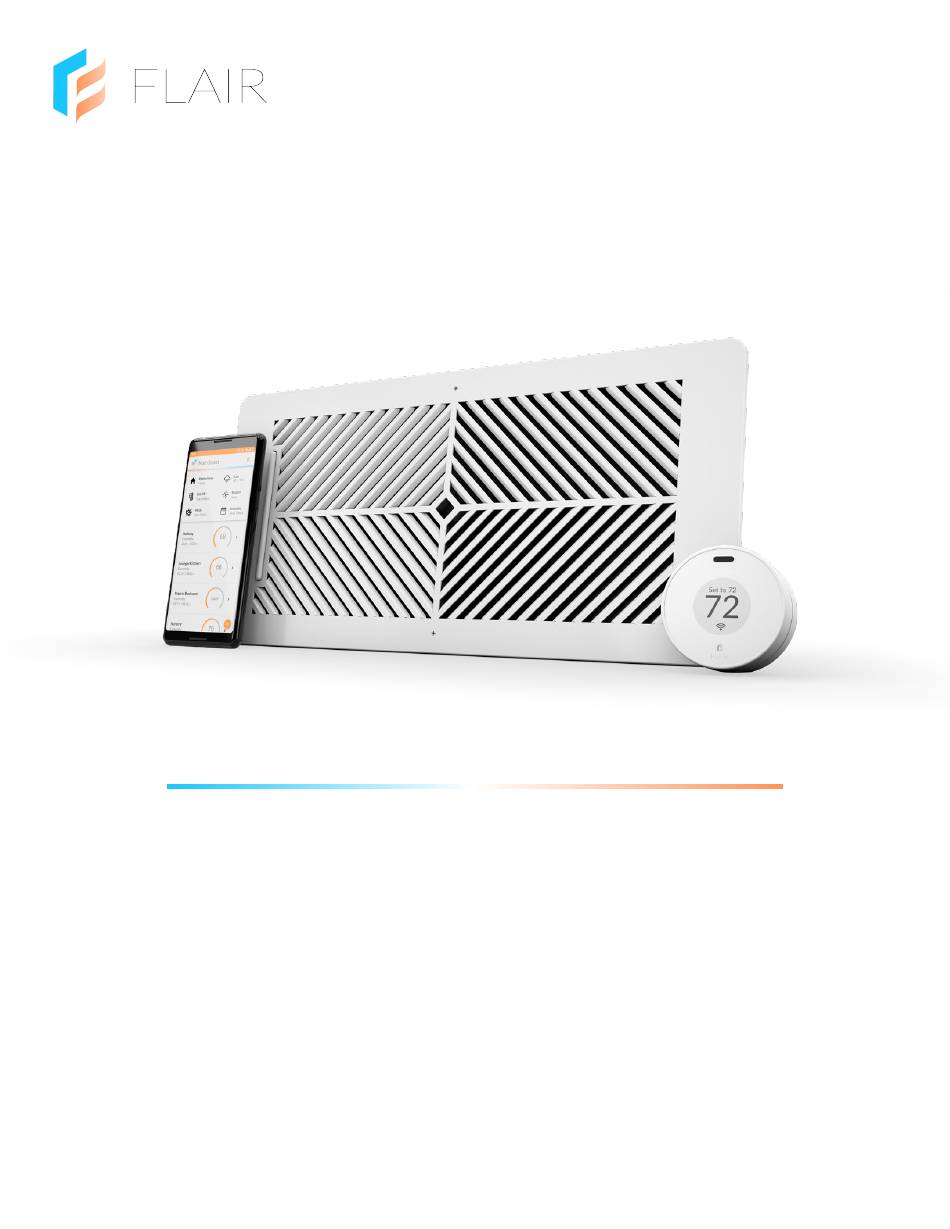

- Page 1 Flair Puck & Smart Vent IN-HOME INSTALL GUIDE CENTRAL SYSTEMS questions? flair.co/contact...
-
Page 2: What You Need To Know
★ What you need to know What you need prior to installation 1. One Flair Bridge 2. One Puck for each room with Smart Vents. A Flair room can be a physical room, or a group of rooms. 3. Small phillips head screwdriver If you plan to wire Smart Vents to AC power, complete Setup with batteries. - Page 3 ★ Setup, Test and Install Flow Power Flair Devices Install Flair App Run Flair App Setup Create Flair Account Near router Phone, laptop or tablet In the Flair App Setup Move Flair Devices Test Signal Strength Test Vent Operation to Rooms Don’t install yet...
- Page 4 1. Power on Flair Devices a. Perform Setup within 10 feet of the modem/router b. Power on the Flair Bridge using the supplied cable and USB adapter and plug it into the modem/router using the supplied ethernet cable c. Power on Pucks using batteries d.
- Page 5 You can unplug the Gateway Puck, move it and plug it into a different outlet as necessary 2. Test Puck Signal Strength a. In the Flair App, go to Home Statistics b. In the Puck graph, change “Graph Data” to “RSSI (dB)” c. Sensor Pucks will show RF signal strength to the Bridge d.
- Page 6 ② Test - Continued 5. Test Smart Vent Open/Close Function a. In the Flair app, tap the System button and switch to Manual b. For each room, slide the Vent slider to the open and closed position, allowing 30-60 seconds for the Smart Vent to respond c.
- Page 7 You can also power the Smart Vent using 24 VAC power or 12V DC power. Flair Setup will guide you through assembling Smart Vents with batteries. Wiring is done after Setup. Instructions on how to wire to AC power are included in the box with each Smart Vent.
- Page 8 Flair USB cable is a specialized cable that only uses the data line. Flair Sensor Pucks can use batteries for a streamlined install. Sensors Pucks can also be powered using the supplied cable and adapter. Typical battery life is approximately 1 year.
- Page 9 Flair Puck USB Mount Flair’s USB Mount adapter allows for a Puck to fit snugly to walls for an elegant and secure placement. Mount where temperature is accurate and reliable. USB Outlet PLate Wall-Mounted Conduit No Electrician Required! Great for retrofits! Cost effective, code compliant, fast and easy to install.
- Page 10 Puck. This can take up to 5 minutes. After 30 minutes with no pairing, lights will turn off to save battery life. To enter discovery mode again, tap the Flair menu, go to Home Settings->Flair Devices and enable Smart Vent Identification Mode.
- Page 11 © Standard Euler, Inc. Flair Homeowner Central Install Guide v1.3-02172020...
