ASL INTERCOM VIPEDIA-12 Installation Manual

Professional sound life-safety digital audio system
Hide thumbs Also See for VIPEDIA-12:
Table of Contents

Advertisement

Quick Links

Download this manual
VIPEDIA-12 Products
Professional Sound Life-Safety Digital Audio System
Installation Guide
ASL Document Ref.: U-0641-0344.docx
Issue: 8 complete, approved - Date: 12/01/21
Part Number: M0641_27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIPEDIA-12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ASL INTERCOM VIPEDIA-12

Summary of Contents for ASL INTERCOM VIPEDIA-12

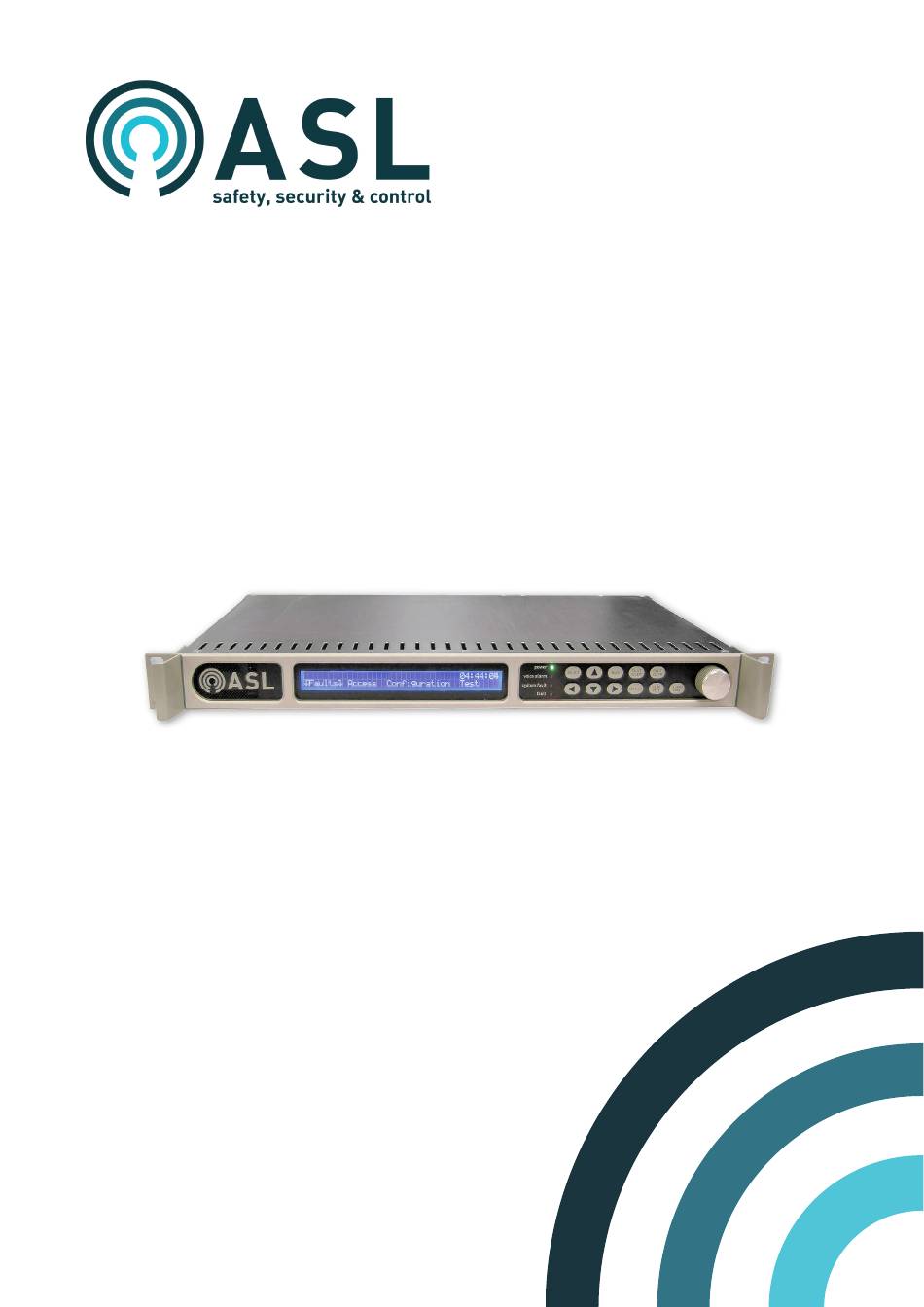

  • Page 1 VIPEDIA-12 Products Professional Sound Life-Safety Digital Audio System Installation Guide ASL Document Ref.: U-0641-0344.docx Issue: 8 complete, approved - Date: 12/01/21 Part Number: M0641_27...
  • Page 2 VIPEDIA-12 Products – Installation Guide This product is designed and manufactured to comply with the following EC Directives for electrical and electronic equipment: Restriction of Hazardous Substances (RoHS) Directive: 2011/65/EU & 2015/863/EU Electromagnetic Compatibility (EMC) Directive: 2014/30/EU Low Voltage (LVD) Directive: 2014/35/EU A “Declaration of Conformity”...
  • Page 3 VIPEDIA-12 Products – Installation Guide Document Change History Issue Amendment Summary Date Draft release for internal use 01/03/11 Draft release for internal use 02/03/11 First release 10/12/12 "Batteries shall not be exposed to excessive heat such as sunshine, fire etc" warning added 27/02/13 for EN 60065.
  • Page 4 VIPEDIA-12 Products – Installation Guide 14) ETH ports: cable requirements changed from CAT5 E to CAT5 FTP or STP for EMC compliance. 15) Cables: Pirelli replaced by Prysmian. 16) EIA 568-B updated to T568B per Telecommunications Industry Association (TIA) 17) Typos corrected, some paragraphs re-worded and additional info added for clarity.

  • Page 5: Table Of Contents

    Hardware Build Standard (BS) ....................15 Hardware Bypass Link Setting for Hardware BS 2B or older ........... 15 Connections ............................. 16 VIPEDIA-12 Connections (Rear Panel) ..................16 External Cabling Requirements ....................24 Break-Out Adaptor (BOA) Connections ................... 25 EMS/MPS Fire Microphone Connections ................. 41 EAP01 Fire Microphone Connections ..................
  • Page 6 VIPEDIA-12 Products – Installation Guide This page intentionally left blank. U-0641-0344.docx – Issue: 8 complete, approved Page 6 of 52...

  • Page 7: Safety And Precautions

    Objects containing liquids should not be placed upon the VIPEDIA-12. In the close proximity of some radio frequency transmitters, the signal to noise ratio of the VIPEDIA-12 may be reduced. If this occurs, re-location of the VIPEDIA-12 or the signal cables is recommended.
  • Page 8 Battery Replacement, Handling and Storage Caution! Risk of explosion if battery is replaced by an incorrect type. The VIPEDIA-12 contains a lithium battery. The maximum temperature rating of the battery varies from manufacturer to manufacturer. The temperature rating of the chosen battery must be greater than 75°C (for example, Panasonic BR2032 or Murata CR2032X).

  • Page 9: Preparation

    VIPEDIA-12 Rack Design Guide (ASL T-0667-0185). If the VIPEDIA-12 is intended to be table or shelf mounted, i.e. not in a 19-inch standard rack, then the unit should always be fitted into a 19-inch desk case or flight case. This is to prevent ingress of dust or debris that may otherwise occur over a period of time.

  • Page 10: Unpacking And Handling

    Unpack the equipment in a dry area, handling the equipment with care. Check the equipment package contents for completeness. Report any missing items immediately. VIPEDIA-12 package contents: 1 x VIPEDIA-12 product (fitted with handles and any factory fit items) • •...

  • Page 11: Installation

    Ensure that the power supply from the central equipment rack is turned off. Fit the VIPEDIA-12 into a 19-inch standard equipment rack on supporting rails, and secure the unit in position using the fixing screws and washers provided.
  • Page 12 µSD 1 compatibility) 7 - 12 DBB OUT 1 18-40V CONTA CTS OUT Connect the field wiring as required. Refer to Section “7.1 VIPEDIA-12 Connections (Rear Panel)” (page 16) for pinout details. Ethernet (on Network Card) Contacts Local (Inputs) Expansion...
  • Page 13 VIPEDIA-12 Products – Installation Guide Connect the dual power supply wiring to the rear panel connectors. WAGO Connectors: DUAL DC POWER SUPPLY: 18-40 V DC Use one of the two methods shown in the diagram below to terminate the cabling in the Wago connectors.

  • Page 14: Indicators And Controls

    VIPEDIA-12 itself. A communication fault between the VIPEDIA-12 and any equipment or device that has been configured at the VIPEDIA-12 and that is critical to Voice Alarm functions will also trigger a system fault. Lit to indicate that the unit has detected a fault.

  • Page 15: Support Information

    VIPEDIA-12 Products – Installation Guide Support Information Hardware Build Standard (BS) The hardware Build Standard (BS) is part of the product’s serial number. The serial number label is located on the side of the unit; see example below. VIPEDIA-12 1842 202210 011 The last section of the barcode indicates the Build Standard (BS).

  • Page 16: Connections

    VIPEDIA-12 Products – Installation Guide Connections VIPEDIA-12 Connections (Rear Panel) U-0641-0344.docx – Issue: 8 complete, approved Page 16 of 52...
  • Page 17 VIPEDIA-12 Products – Installation Guide ① 18V-40V: Dual DC Power Supply 18-40V 18V-40V: 2-way pluggable Wago cage clamp terminal (male) Signal Description +V supply (18 V to 40 V DC) – 0 V supply 18-40V ② CONTACTS OUT 1-6 and 7-12: Contact Outputs 1 to 12...
  • Page 18 1 2 3 4 5 6 7 8 DBB OUT 1 VIPEDIA-12 Build Standard up to 2B: EXPAND IN 1 and OUT 1 VIPEDIA-12 fitted with Dante Brooklyn II module does not support expansion units. U-0641-0344.docx – Issue: 8 complete, approved...
  • Page 19 Audio Monitor Bus (–10 dBu nominal) (+ve) white/blue AUDIO MON- As above but -ve AMP CTRL green 0 V Reference white/brown For future use brown For future use VIPEDIA-12 Build Standard up to 1B: AUDIO-CAN U-0641-0344.docx – Issue: 8 complete, approved Page 19 of 52...
  • Page 20 VIPEDIA-12 Products – Installation Guide ⑩ CONTACTS IN 1-4, 5-8 and 9-12: Contact Inputs 1 to 12 CONTACTS IN 1-4: Standard RJ45 socket CAT5 Cable (T568B) Signal Description white/orange CI1+ Opto-coupled input 1 (+ve) / Analogue input 1 orange CI1-...
  • Page 21 Same as above Fire microphones with hardwired PTT and Speak Now (input 1 or 2) should be powered from  an external power supply, i.e. not from the VIPEDIA-12. U-0641-0344.docx – Issue: 8 complete, approved Page 21 of 52...
  • Page 22 VIPEDIA-12 Products – Installation Guide ⑬ AUDIO OUTPUTS 1-4, 5-8 and 9-12 (A&B): Audio Outputs 1 to 12 (A&B) AUDIO OUTPUTS 1-4 (A&B): Standard RJ45 socket AUDIO OUTPUTS CAT5 Cable (T568B) Signal Description white/orange AUDIO OUT 1+ Balanced audio output 1 (+ve)
  • Page 23 Not connected green LIST2- Listen-in audio output 2- white/brown – Not connected brown PTT2- Fire microphone 2 PTT- (Push -To-Talk) VIPEDIA-12 Build Standard up to 1B: FIREMIC 1 / FIREMIC 2 U-0641-0344.docx – Issue: 8 complete, approved Page 23 of 52...

  • Page 24: External Cabling Requirements

    Standard overall screened CAT5 FTP or STP can be used for connection within the rack. For details, refer to the documentation specific to the microphone being used. RJ45 plugs with excessively bulky rubber boot may not fit the connectors on the VIPEDIA-12 properly when stacked; see rubber boot dimension below.

  • Page 25: Break-Out Adaptor (Boa) Connections

    VIPEDIA-12 Products – Installation Guide Break-Out Adaptor (BOA) Connections 7.3.1 BOA01 Connections RJ45: VIPEDIA-12 Pin 1 Pin 1 EOL and ANS resistors (factory fit option) Pin 1 SCREW-IN TERMINALS: EXTERNAL WIRING Pin 1 For EMC compliance, ensure that 20 mm length of EMC gasket (provided) is fixed to the gold-plated PCB land.
  • Page 26 VIPEDIA-12 Products – Installation Guide 7.3.1.1 BOA01 - Audio Input and Serial Interface (1 to 12) Connections Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead) Screw Terminal Description Signal Not applicable From +V supply input (18 – 40 V) / 500 mA...
  • Page 27 VIPEDIA-12 Products – Installation Guide 7.3.1.2 BOA01 - Auxiliary Microphone Interface Connections (Hardware Bypass Emergency Microphone PPT and Speak Now and Listen-in) 7.3.1.2.1 BOA01 - Auxiliary Microphone Interface 1 (MIC AUX 1) Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead)
  • Page 28 VIPEDIA-12 Products – Installation Guide 7.3.1.2.2 BOA01 - Auxiliary Microphone Interface 2 (MIC AUX 2) Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead) Screw Terminal Description Signal Not applicable From +V supply input (18 – 40 V) / 500 mA...
  • Page 29 VIPEDIA-12 Products – Installation Guide 7.3.1.3 BOA01 - Audio Output (1 to 12) Connections Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead) Screw Terminal Description Signal Not applicable From +V supply input (18 – 40 V) / 500 mA...
  • Page 30 VIPEDIA-12 Products – Installation Guide 7.3.1.4 BOA01 - Contact Inputs (1 to 12) Connections Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead) Screw Terminal Description Signal Not applicable From +V supply input (18 – 40 V) / 500 mA...
  • Page 31 VIPEDIA-12 Products – Installation Guide 7.3.1.5 BOA01 - Contact Outputs (1 to 12) Connections Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead) Screw Terminal Description Signal Not applicable From +V supply input (18 – 40 V) / 500 mA...
  • Page 32 VIPEDIA-12 Products – Installation Guide 7.3.1.6 BOA01 - Fault/Voice Alarm/Control Relay and BMB01 Connections Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead) Screw Terminal Description Signal Not applicable From +V supply input (18 – 40 V) / 500 mA...
  • Page 33 VIPEDIA-12 Products – Installation Guide 7.3.1.7 BOA01 - RS232 Serial Port Connections Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead) Screw Terminal Description Signal Not applicable From +V supply input (18 – 40 V) / 500 mA 24 V external ③...
  • Page 34 VIPEDIA-12 Products – Installation Guide 7.3.1.8 BOA01 - AMP CTRL Port Connections Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead) Screw Terminal Description Signal Not applicable From +V supply input (18 – 40 V) / 500 mA 24 V ③...
  • Page 35 VIPEDIA-12 Products – Installation Guide 7.3.1.9 BOA01 - Aggregating Audio Input (up to 4) Connections Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead) Screw Terminal Description Signal From +V supply input (18 – 40 V) / 500 mA...
  • Page 36 VIPEDIA-12 Products – Installation Guide 7.3.2 BOA02 Connections Screw-in RJ45 Terminals T568-B PORT 2 PORT 4 Rear WH/OR PORT 1 PORT 3 WH/GR Front 1 2 3 4 WH/BL 5 6 7 8 WH/BR 9 (SCREEN) For EMC compliance, ensure that 20 mm length of EMC gasket (provided) is fixed to the gold-plated PCB land.
  • Page 37 VIPEDIA-12 Products – Installation Guide 7.3.2.2 BOA02 - Auxiliary Microphone Interface Connections (Hardware Bypass Emergency Microphone PPT and Speak Now and Listen-in) 7.3.2.2.1 BOA02 - Auxiliary Microphone Interface 1 (MIC AUX 1) Connection to VIPEDIA-12 Field Connection (via CAT5 patch lead) VIPEDIA-12’s...
  • Page 38 VIPEDIA-12 Products – Installation Guide 7.3.2.3 BOA02 - Audio Output (1 to 12) Connections Connection to VIPEDIA-12 Field Connection (via CAT5 patch lead) VIPEDIA-12’s BOA02’s RJ45 RJ45 (see page16) Screw Terminal (see page 36) ⑬ PORT 1 to 4 Description...
  • Page 39 VIPEDIA-12 Products – Installation Guide 7.3.2.5 BOA02 - Contact Outputs (1 to 12) Connections Connection to VIPEDIA-12 Field Connection (via CAT5 patch lead) VIPEDIA-12’s BOA02’s RJ45 RJ45 (see page 16) Screw Terminal (see page 36) ② PORT 1 to 4...
  • Page 40 VIPEDIA-12 Products – Installation Guide 7.3.2.7 BOA02 - RS232 Serial Port Connections Connection to VIPEDIA-12 Field Connection (via CAT5 patch lead) VIPEDIA-12’s BOA02’s RJ45 RJ45 (see page 16) Screw Terminal (see page 36) ⑧ PORT 1 to 4 Description Signal...

  • Page 41: Ems/Mps Fire Microphone Connections

    VIPEDIA-12 Products – Installation Guide EMS/MPS Fire Microphone Connections EMS/MPS - Fire Microphone Connection to VIPEDIA-12 INPUT 1 (A and A&B Routers) EMS/MPS VIPEDIA-12 (A) T568B: ROUTER 1 AUDIO INPUT 1 (RJ45) WH/OR AUDIO+ AUDIO IN+ AUDIO- AUDIO IN- WH/GR...
  • Page 42 VIPEDIA-12 Products – Installation Guide EMS/MPS - Fire Microphone Connection to VIPEDIA-12 INPUT 2 (A and A&B Routers) EMS/MPS VIPEDIA-12 (A) T568B: ROUTER 1 AUDIO INPUT 2 (RJ45) WH/OR AUDIO+ AUDIO IN+ AUDIO- AUDIO IN- WH/GR RS485 DXP / DATA DXP...

  • Page 43: Eap01 Fire Microphone Connections

    VIPEDIA-12 Products – Installation Guide EAP01 Fire Microphone Connections EAP01 - Connection to VIPEDIA-12 INPUT 1 EAP01 VIPEDIA-12 T568B: AUDIO INPUT 1 (RJ45) WH/OR AUDIO IN+ AUDIO IN- WH/GR AUDIO+ +SUPPLY +SUPPLY AUDIO- DATA-DXP DATA-DXN +24V INPUT EXTERNAL POWER SUPPLY (18 - 40 V) (e.g.
  • Page 44 VIPEDIA-12 Products – Installation Guide EAP01 - Connection to VIPEDIA-12 INPUT 2 EAP01 VIPEDIA-12 T568B: AUDIO INPUT 2 (RJ45) WH/OR AUDIO IN+ AUDIO IN- WH/GR AUDIO+ +SUPPLY +SUPPLY AUDIO- DATA-DXP DATA-DXN +24V INPUT EXTERNAL POWER SUPPLY (18 - 40 V) (e.g.

  • Page 45: Expansion Unit Connection

    VIPEDIA-12 Products – Installation Guide Expansion Unit Connection CAT5 PATCH LEAD CAT5 PATCH LEAD CAT5 PATCH LEAD U-0641-0344.docx – Issue: 8 complete, approved Page 45 of 52...

  • Page 46: Technical Specification

    VIPEDIA-12 ..................VIPEDIA-12 without Network Card fitted VIPEDIA-12-NET ..................VIPEDIA-12 with Network Card fitted VIPEDIA-12-PRO ........VIPEDIA-12 with Network Card and Dante Brooklyn II module fitted VIPEDIA-12-TS1 ..................VIPEDIA-12 with Terminal Server fitted LCD backlight current consumption: approx. 10 mA.
  • Page 47 • Up to 12 x PMC streams (6 x in + 6 x out) depending on system design and configuration. VIPEDIA-12-PRO: Up to 32 x Dante Rx channels per PAVA system. • Vipedia audio inputs (1 to 12) and outputs (1 to 4) permanently available on Dante Tx channels. Vipedia outputs 5 to 12 may be available on Dante Tx channels depending on system design and configuration.
  • Page 48 VIPEDIA-12 Products – Installation Guide Audio Input Performance Input Sensitivity ........................-60 / -40 / -20 / 0 dBu Input Overload ............................+20 dB Maximum Input Level ..........................+20 dBu Input Trim ......................–90 dB to +10 dB (1 dB steps) Mute ...............................
  • Page 49 VIPEDIA-12 Products – Installation Guide Audio Output Performance Nominal Output Level ..........................0 dBu Maximum Output Level ........................... +20 dBu Output Impedance ............................660 Ω Routing Switches ............. To select any of input audio sources to the output channel Mixing .......................

  • Page 50: Mechanical Dimensions

    VIPEDIA-12 Products – Installation Guide Mechanical Dimensions Figure 1 Mechanical dimensions ASL recommend a rear clearance depth of at least 110 mm for cabling.  A 19-inch standard rack with 600 mm depth provides the required room for installation including the rear cabling.

  • Page 51: Storage And Preservation

    VIPEDIA-12 Products – Installation Guide Storage and Preservation This product should be packed for storage in the original packing as described in the Section “10 Packing for Return” below and stored in the following environmental conditions: Away from harsh environmental conditions, such as areas that are subject to corrosive atmosphere, •...

  • Page 52: Service And Warranty

    VIPEDIA-12 Products – Installation Guide Service and Warranty Name and Address of Authorised Distributor: This product carries a full warranty. For full details of warranty and service agreements, please contact the Authorised Distributor who supplied the product to you. Exclusions The warranty does NOT cover: Customer misuse, including incorrect installation.
