ASL INTERCOM VIPEDIA-12 Installation Manual

Professional sound life-safety digital audio system
Hide thumbs Also See for VIPEDIA-12:

Advertisement

Quick Links

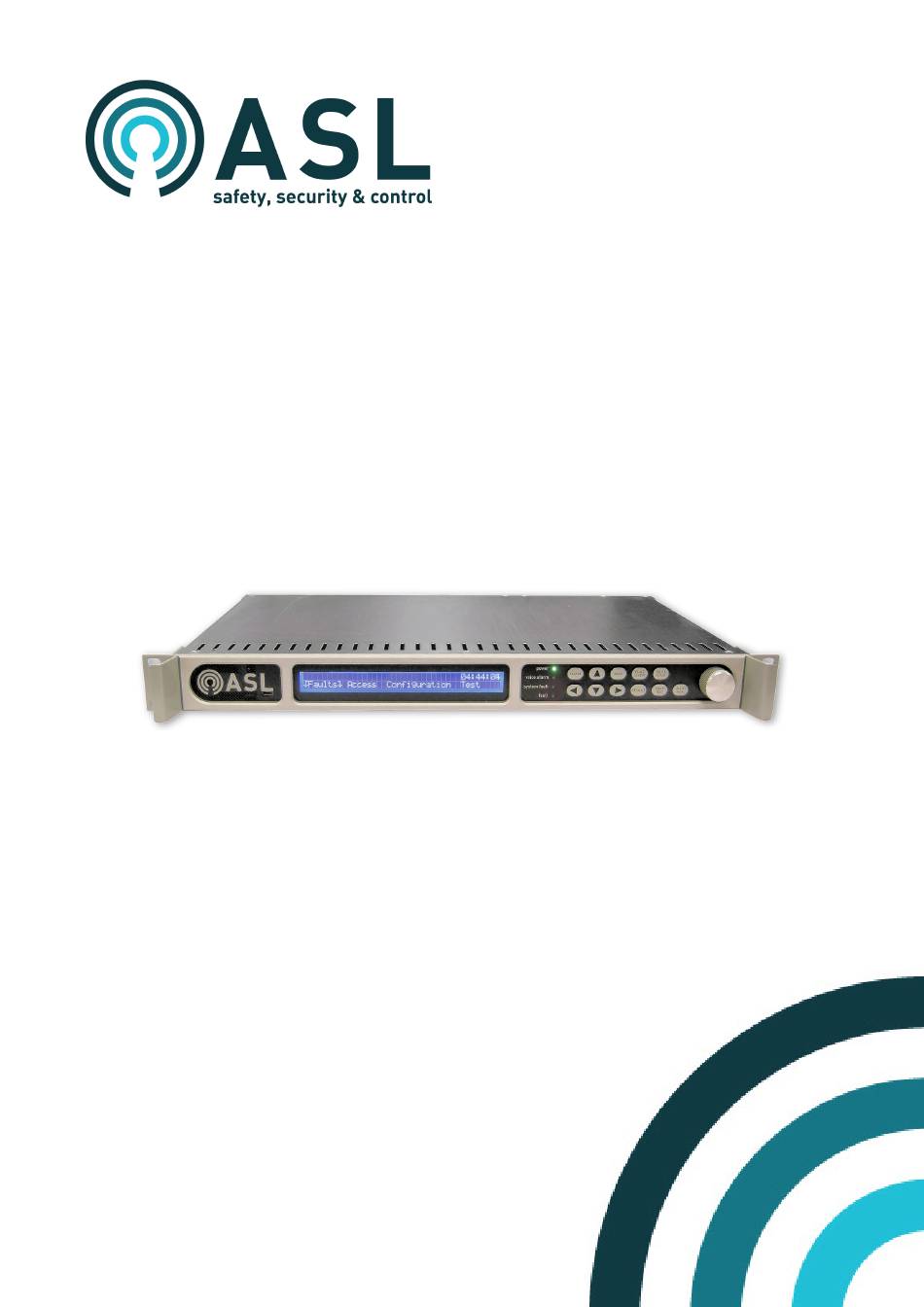

VIPEDIA-12
Professional Sound Life-Safety Digital Audio System
Installation Guide
ASL Document Ref.: U-0641-0344.doc
Issue: 06 complete, approved - Date: 29/08/14
Part Number: M0641_27

Advertisement

loading
Need help?

Need help?

Do you have a question about the VIPEDIA-12 and is the answer not in the manual?

Questions and answers

Related Manuals for ASL INTERCOM VIPEDIA-12

Summary of Contents for ASL INTERCOM VIPEDIA-12

  • Page 1 VIPEDIA-12 Professional Sound Life-Safety Digital Audio System Installation Guide ASL Document Ref.: U-0641-0344.doc Issue: 06 complete, approved - Date: 29/08/14 Part Number: M0641_27...

  • Page 2: Table Of Contents

    VIPEDIA-12 – Installation Guide This equipment is designed and manufactured to conform to the following EC standards: EMC: EN 55103-1/E4-E5, EN 55103-2/E5, EN 50130-4, EN 50121-4, EN 61000-6-2 and EN 61000-6-4 Safety: EN 60065 (pollution degree 2) A “Declaration of Conformity” statement to the above standards is available on request.

  • Page 3: General Information

    Power Supply ..........................dual 18 V to 40 V DC (2 A) Current Consumption at 24 V DC VIPEDIA-12 (excluding optional modules, microphones and other peripherals) Minimum (LCD display backlight off, LEDs off and sounder off) ..............445 mA Maximum (LCD display backlight on, LEDs on and sounder on) ...............490 mA Network Card............................
  • Page 4 Dual monitored and isolated A and B audio output channels on separate connectors Listen-in Audio Output Channels – Analogue................2 x balanced audio outputs IP Audio Protocol Standard VIPEDIA-12......................2 x ASL PMC (in and out) With Network Card (optional) ....................16 x ASL PMC (in and out) With Dante™...
  • Page 5 VIPEDIA-12 – Installation Guide Compressor Ratio .................................1:1 to ∞:1 Threshold ......................... -60 dB to +20 dB (1 dB steps) Attack ..........................0.1 to 200 ms (0.1 ms steps) Release ........................... 50 ms to 3 s (1 ms steps) Make Up Gain.........................0 to +20 dB (0.1 dB steps) Knee ............................0 to +12 dB (0.1 dB steps)
  • Page 6 LED indicators and control buttons; see details below. Refer to ASL for availability and compatibility Full Dynamic ANS (DANS) functionality only available with optional MIX-DSP Module VIPEDIA-12 Build Standard 3 onwards U-0641-0344.doc – Issue: 06 complete, approved Page 6 of 44...
  • Page 7 Alarm system, including those of the VIPEDIA-12 itself. A communication fault between the VIPEDIA-12 and any equipment or device that has been configured at the VIPEDIA-12 and that is critical to Voice Alarm functions will also trigger a system fault. Lit to indicate that the unit has detected a fault.

  • Page 8: Installation

    EOL and ANS resistors: factory fit option If the VIPEDIA-12 is intended to be table or shelf mounted, i.e. not in a 19-inch standard rack, then the unit should always be fitted into a 19-inch desk case or flight case. This is to prevent ingress of dust or debris that may otherwise occur over a period of time.
  • Page 9 Standard overall screened CAT5 FTP or STP can be used for connection within the rack. For details, refer to the documentation specific to the microphone being used. RJ45 plugs with excessively bulky rubber boot may not fit the connectors on the VIPEDIA-12 properly when stacked; see rubber boot dimension below.

  • Page 10: Installation Procedure

    “5 Safety and Precautions” (page 42) prior to installation. Failure to follow these instructions and guidelines may cause personal injury and/or damage to the equipment. Fit the VIPEDIA-12 into a 19-inch standard equipment rack on supporting rails, and secure the unit in position using the fixing screws and washers provided; see Figure 1.
  • Page 11 7 - 12 DBB OUT 1 18-40V CONTACTS OUT Connect the field wiring as required; see Figure 4 (page 11). Please refer to Section “3.1.2 VIPEDIA-12 Rear Panel Connectors” (page 14) for pinout details. Figure 4 Connecting the field wiring Ethernet Contacts...

  • Page 12: Other Information

    VIPEDIA-12 – Installation Guide Other Information 2.4.1 Hardware Build Standard (BS) The hardware Build Standard (BS) is part of the product’s barcode. The barcode label is located on the side of the unit; see example in Figure 6 (page 12).

  • Page 13: Connections

    VIPEDIA-12 – Installation Guide Connections VIPEDIA-12 Connections 3.1.1 VIPEDIA-12 Front Panel Connector ① USB Port Standard USB Micro-AB socket Pin No. Signal Description VBUS + V Supply (output) D− Data− 1 2 3 4 5 Data+ Permits distinction of host connection from slave connection: •...
  • Page 14 VIPEDIA-12 – Installation Guide 3.1.2 VIPEDIA-12 Rear Panel Connectors U-0641-0344.doc – Issue: 06 complete, approved Page 14 of 44...
  • Page 15 VIPEDIA-12 – Installation Guide ① 18V-40V: Dual DC Power Supply 18-40V 18V-40V: 2-way pluggable Wago cage clamp terminal (male) Signal Description +V supply (18 V to 40 V DC) – 0 V supply 18-40V ② CONTACTS OUT 1-6 and 7-12: Contact Outputs 1 to 12...
  • Page 16 Standard CAT5 FTP or STP cable must be used (maximum cable run = 4 m, entirely within the rack). 1 2 3 4 5 6 7 8 DBB OUT 1 VIPEDIA-12 Build Standard up to 2B: EXPAND IN 1 and OUT 1 U-0641-0344.doc – Issue: 06 complete, approved Page 16 of 44...
  • Page 17 0 V Reference white/brown ACAN DXP Amplifier control data / EIA RS485 9600 baud (Data+) brown ACAN DXN As above but Data- VIPEDIA-12 Build Standard up to 1B: AUDIO-CAN U-0641-0344.doc – Issue: 06 complete, approved Page 17 of 44...
  • Page 18 VIPEDIA-12 – Installation Guide ⑨ CONTACTS IN 1-4, 5-8 and 9-12: Contact Inputs 1 to 12 AUDIO-CAN: Standard RJ45 jack CAT5 Cable (EIA 568-B) Signal Description white/orange CI1+ Opto-isolated / Analogue contact 1 (+ve) orange CI1- Opto-isolated contact 1 (-ve)
  • Page 19 Power supply only if one or both inputs of the pair is/are configured as microphone • Fire microphones with hardwired PTT and Speak Now (input 1 or 2) should be powered from an external power supply, i.e. not from the VIPEDIA-12 U-0641-0344.doc – Issue: 06 complete, approved Page 19 of 44...
  • Page 20 VIPEDIA-12 – Installation Guide ⑫ AUDIO OUTPUTS 1-4, 5-8 and 9-12 (A&B): Audio Outputs 1 to 12 (A&B) AUDIO OUTPUTS AUDIO OUTPUTS 1-4 (A&B): Standard RJ45 jack CAT5 Cable (EIA 568-B) Signal Description white/orange AUDIO OUT 1+ Balanced audio output 1 (+ve)
  • Page 21 Not connected green LIST2- Listen-in audio output 2- white/brown – Not connected brown PTT2- Fire microphone 2 PTT- (Push -To-Talk) VIPEDIA-12 Build Standard up to 1B: FIREMIC 1 / FIREMIC 2 U-0641-0344.doc – Issue: 06 complete, approved Page 21 of 44...
  • Page 22 VIPEDIA-12 – Installation Guide Break-Out Adaptor (BOA) Connections 3.2.1 BOA01 Connections Figure 8 BOA01 pinout RJ45: VIPEDIA-12 Pin 1 Pin 1 EOL and ANS resistors (factory fit option) Pin 1 Pin 1 SCREW-IN TERMINALS: EXTERNAL WIRING For EMC compliance, ensure that 20 mm length of EMC gasket (provided) is fixed to the gold plated PCB land.
  • Page 23 VIPEDIA-12 – Installation Guide 3.2.1.1 BOA01 - Audio Input and Serial Interface (1 to 12) Connections Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead) Screw-in Terminal Description Signal Not applicable From +V supply input (18 – 40 V) / 500 mA...
  • Page 24 VIPEDIA-12 – Installation Guide 3.2.1.2 BOA01 - Auxiliary Microphone Interface Connections (Hardware Bypass Emergency Microphone PPT and Speak Now and Listen-in) 3.2.1.2.1 BOA01 - Auxiliary Microphone Interface 1 (MIC AUX 1) Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead)
  • Page 25 VIPEDIA-12 – Installation Guide 3.2.1.2.2 BOA01 - Auxiliary Microphone Interface 2 (MIC AUX 2) Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead) Screw-in Terminal Description Signal Not applicable From +V supply input (18 – 40 V) / 500 mA...
  • Page 26 VIPEDIA-12 – Installation Guide 3.2.1.3 BOA01 - Audio Output (1 to 12) Connections Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead) Screw-in Terminal Description Signal Not applicable From +V supply input (18 – 40 V) / 500 mA...
  • Page 27 VIPEDIA-12 – Installation Guide 3.2.1.4 BOA01 - Contact Inputs (1 to 12) Connections Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead) Screw-in Terminal Description Signal Not applicable From +V supply input (18 – 40 V) / 500 mA...
  • Page 28 VIPEDIA-12 – Installation Guide 3.2.1.5 BOA01 - Contact Outputs (1 to 12) Connections Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead) Screw-in Terminal Description Signal Not applicable From +V supply input (18 – 40 V) / 500 mA...
  • Page 29 VIPEDIA-12 – Installation Guide 3.2.1.6 BOA01 - Fault/Voice Alarm Relay and BMB01 Connections Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead) Screw-in Terminal Description Signal Not applicable From +V supply input (18 – 40 V) / 500 mA...
  • Page 30 VIPEDIA-12 – Installation Guide 3.2.1.7 BOA01 - RS232 Serial Port Connections Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead) Screw-in Terminal Description Signal Not applicable From +V supply input (18 – 40 V) / 500 mA 24 V...
  • Page 31 VIPEDIA-12 – Installation Guide 3.2.1.8 BOA01 - AMP CTRL Port Connections Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead) Screw-in Terminal Description Signal Not applicable From +V supply input (18 – 40 V) / 500 mA 24 V...
  • Page 32 VIPEDIA-12 – Installation Guide 3.2.1.9 BOA01 - Aggregating Audio Input (up to 4) Connections Field Connection Connection to VIPEDIA-12 ① (via CAT5 patch lead) Screw-in Terminal Description Signal Not applicable From +V supply input (18 – 40 V) / 500 mA...
  • Page 33 VIPEDIA-12 – Installation Guide 3.2.2 BOA02 Connections Figure 9 BOA02 pinout Screw-in RJ45 Terminals PORT 2 PORT 4 Rear PORT 1 PORT 3 Front 1 2 3 4 5 6 7 8 9 (SCREEN) For EMC compliance, ensure that 20 mm length of...
  • Page 34 VIPEDIA-12 – Installation Guide 3.2.2.2 BOA02 - Auxiliary Microphone Interface Connections (Hardware Bypass Emergency Microphone PPT and Speak Now and Listen-in) 3.2.2.2.1 BOA02 - Auxiliary Microphone Interface 1 (MIC AUX 1) Connection to VIPEDIA-12 Field Connection (via CAT5 patch lead) VIPEDIA-12’s...
  • Page 35 VIPEDIA-12 – Installation Guide 3.2.2.3 BOA02 - Audio Output (1 to 12) Connections Connection to VIPEDIA-12 Field Connection (via CAT5 patch lead) VIPEDIA-12’s BOA02’s RJ45 RJ45 (see page 14) Screw-in Terminal (see page 33) ⑫ PORT 1 to 4 Description...
  • Page 36 VIPEDIA-12 – Installation Guide 3.2.2.5 BOA02 - Contact Outputs (1 to 12) Connections Connection to VIPEDIA-12 Field Connection (via CAT5 patch lead) VIPEDIA-12’s BOA02’s RJ45 RJ45 (see page 14) Screw-in Terminal (see page 33) ② PORT 1 to 4 Description...
  • Page 37 VIPEDIA-12 – Installation Guide 3.2.2.7 BOA02 - RS232 Serial Port Connections Connection to VIPEDIA-12 Field Connection (via CAT5 patch lead) VIPEDIA-12’s BOA02’s RJ45 RJ45 (see page 14) Screw-in Terminal (see page 33) ⑦ PORT 1 to 4 Description Signal Not connected –...
  • Page 38 VIPEDIA-12 – Installation Guide EMS/MPS Fire Microphone Connections Figure 10 Fire microphone connection to Input 1 EMS/MPS - Fire Microphone Connection to VIPEDIA-12 INPUT 1 (A and A&B Routers) EMS/MPS VIPEDIA-12 (A) ROUTER 1 AUDIO INPUT 1 (RJ45) AUDIO+ AUDIO IN+...
  • Page 39 VIPEDIA-12 – Installation Guide Figure 11 Fire microphone connection to Input 2 EMS/MPS - Fire Microphone Connection to VIPEDIA-12 INPUT 2 (A and A&B Routers) EMS/MPS VIPEDIA-12 (A) ROUTER 1 AUDIO INPUT 2 (RJ45) AUDIO+ AUDIO IN+ AUDIO- AUDIO IN-...
  • Page 40 VIPEDIA-12 – Installation Guide Expansion Unit Connection Figure 12 Expansion unit connection CAT5 PATCH LEAD CAT5 PATCH LEAD CAT5 PATCH LEAD U-0641-0344.doc – Issue: 06 complete, approved Page 40 of 44...

  • Page 41: Mechanical Dimensions

    VIPEDIA-12 – Installation Guide Mechanical Dimensions Figure 13 Mechanical dimensions (present if Network Card is fitted) 41.8 436 mm approx 493 mm (including handles) ASL recommend a rear clearance depth of at least 110 mm for cabling. A 19-inch standard rack with 600 mm depth provides the required room for installation including the rear cabling.

  • Page 42: Safety And Precautions

    VIPEDIA-12 – Installation Guide Laser Safety and Precautions This is equipment is a Class 1 Laser/LED product with Network Card and fibre module fitted. Observe all safety information both on the product and in Don't stare at the Laser/LED beam.
  • Page 43 VIPEDIA-12 – Installation Guide Packing for Return for Repair All electronics assemblies must be properly packed in ESD protective packing for transport, to prevent physical and ESD damage. The filler material used for packing for return for repair must be antistatic or...

  • Page 44: Application Solutions (Safety And Security) Limited

    Service and Warranty Name and Address of Authorised Distributor: This product carries a full warranty. For full details of warranty and service agreements, please contact the Authorised Distributor who supplied the product to you. Exclusions The warranty does NOT cover: Customer misuse, including incorrect installation.
