GROUT REMOVAL GUIDE
A90GG01
For use with RYOBI FVM51, TVM01, RRT100, and RRT200
Rotary Tools.
WARNING!
To reduce the risk of injury, user must read and understand the
operator's manual for their rotary tool and this instruction sheet.
Always wear eye protection with side shields marked to comply
with ANSI Z87.1. Ensure compatibility and fit before using this
accessory. Do not use this accessory if a part is damaged
or missing. If you are not comfortable performing any of the
functions described in these instructions, take your unit to an
authorized service center.
WARNING:
Never install, remove, or adjust any attachment head while
rotary tool is running. Failure to stop the motor can cause
serious personal injury. Never operate rotary tool without an
attachment head or the collar installed.
NOTE: Follow all guidelines and warnings in your rotary tool
operator's manual.
Use the grout removal guide to remove wall and floor grout.

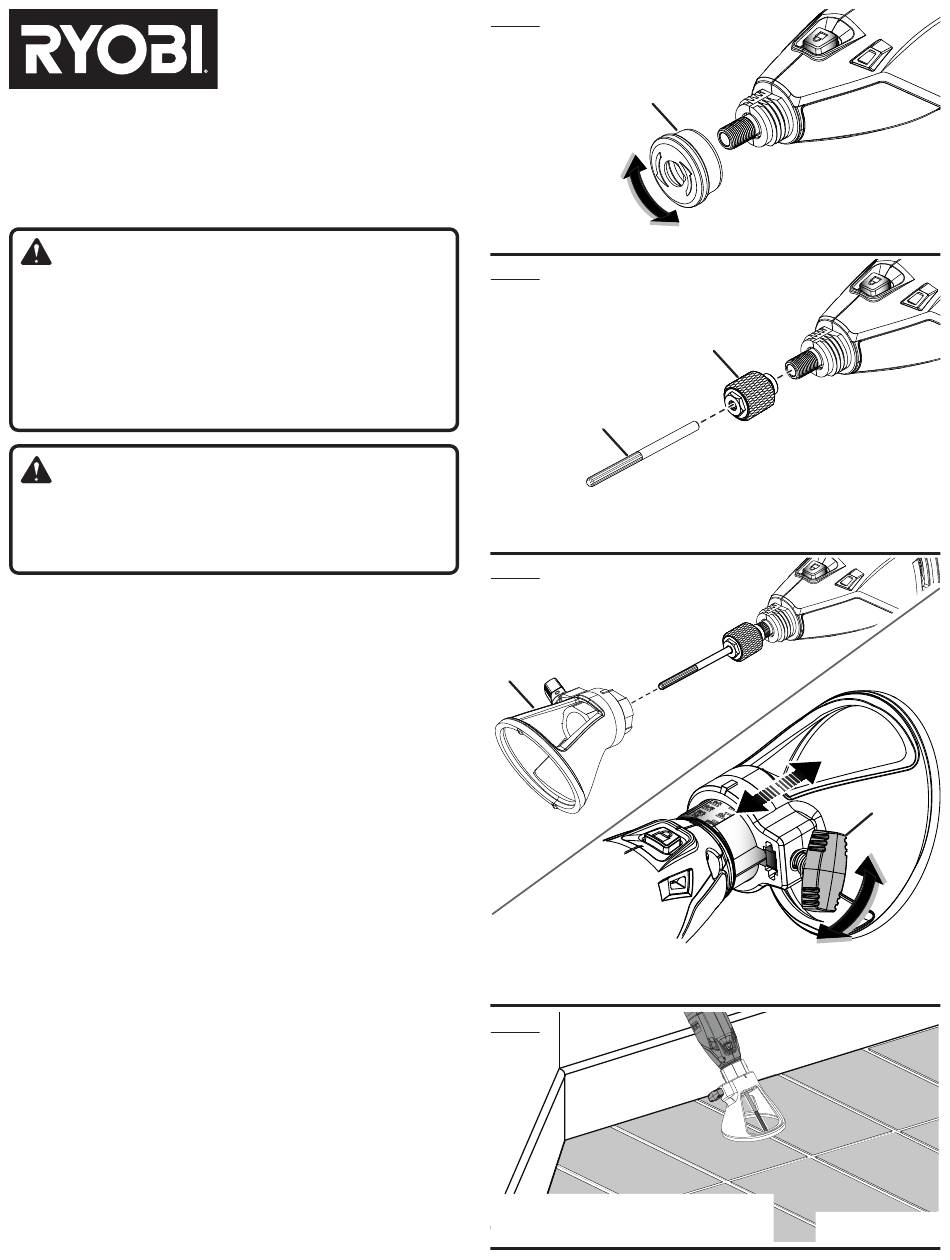

INSTALLING THE GROUT REMOVAL GUIDE
See Figures 1 - 3.
 Verify the rotary tool switch is in the OFF (O) position and
unplug the rotary tool or remove the battery pack, if applicable.
 Engage the spindle lock and remove accessories and quick-
change collet according to the rotary tool operator's manual.
 Hold the collar firmly, then turn it counterclockwise to loosen
and remove.
 Engage the spindle lock and install the quick-change collet
and accessory according to the rotary tool operator's manual.
Ensure collet and accessory are secure.
 Slide the attachment head over the accessory and quick-change
collet and onto the threaded end of the tool.
 Hold the attachment head firmly, then turn it clockwise to tighten
and secure.
 If desired, adjust the depth of the guide by loosening the depth
stop knob and sliding the guide forward or backwards. Tighten
knob to secure.
USING THE GROUT REMOVAL GUIDE
See Figure 4.
 Verify the rotary tool switch is in the OFF (O) position and plug
in the rotary tool or install the battery pack, if applicable.
 Select the appropriate speed according to the rotary tool
operator's manual and start the tool.
 Position the face of the guide against a tiled surface with the
bit inside the space between two tiles.
 Slowly guide the bit inside the space to remove grout.
 W hen finished, turn off the rotary tool.
Fig. 1
A
A - Collar (collier, collar)
Fig. 2
B
A - Quick-change collet (collet à changement rapide, portabroca de cambio
rápido)
B - Accessory (accessoire, accesorio)
Fig. 3
A
A - Attachment head (tête de l'accessoire, cabezal del accesorio)
B - Depth stop knob (boulon de butée de profondeur, perno de tope de
profundidad)
Fig. 4
ONE WORLD TECHNOLOGIES, INC.
P.O. Box 1288, Anderson, SC 29622
Phone 1-800-525-2579 - www.ryobitools.com
A
B
998000809
11-4-21 (REV:01)
