Roof / Wall / Ground Mount Assembly Instructions

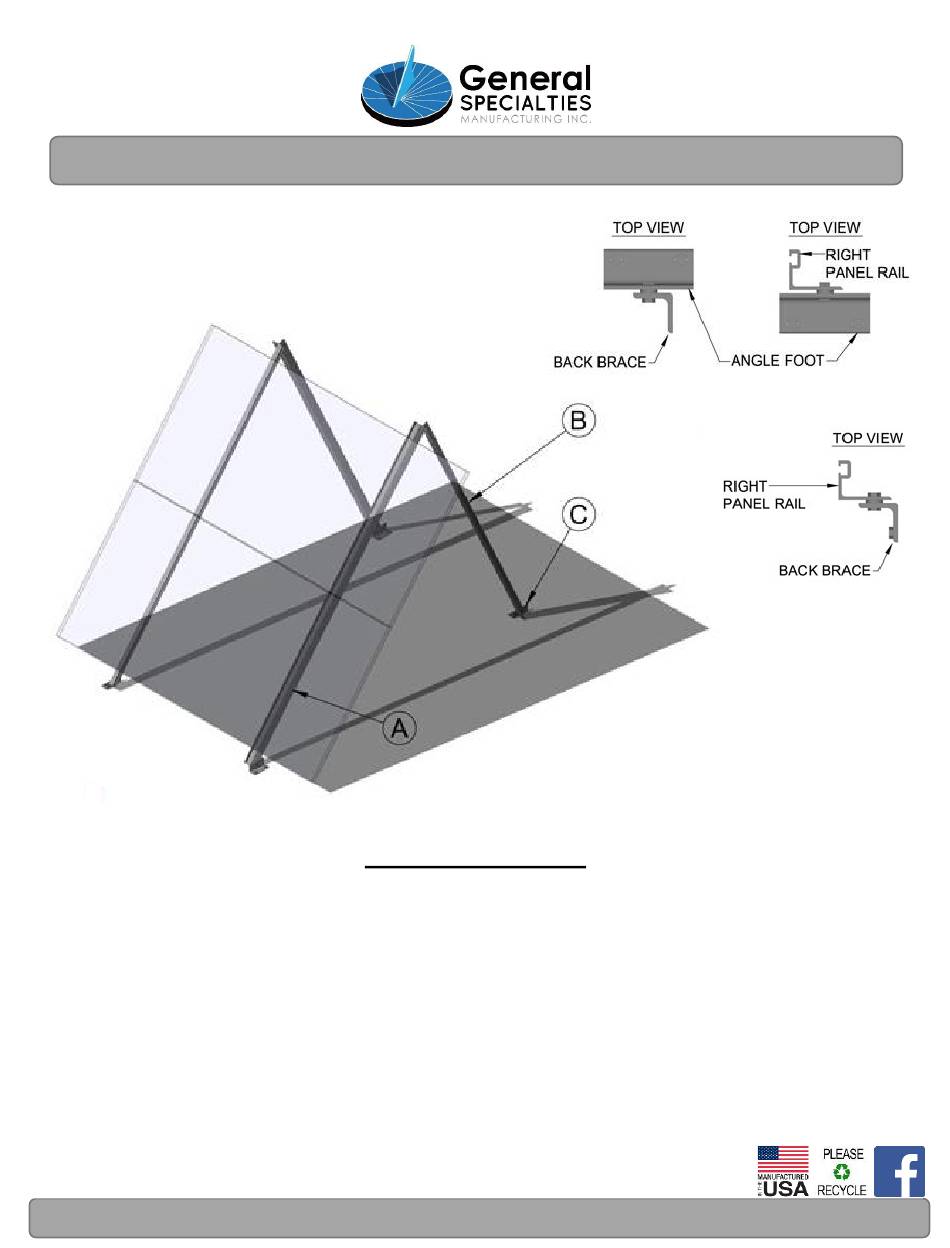

A. ALUMINUM RAILS: UNIVERSAL T-SLOT ANGLE EXTRUSION 2" X 1½" X 1/8" or 3" X 1
½" X 3/16" (SIZE DEPENDENT ON MODULES USED) OR PUNCHED ALUMINUM ANGLE –
2 PLACES
B. BACK BRACES: 6061 – T6 ALUMINUM ANGLE – 2 PLACES
C. MOUNTING FEET: 6061 – T6 ALUMINUM ANGLE BRACKET – 4 PLACES
Note: By changing the position of the back braces and rails you can move your array more vertical or
horizontal.
Rev. 12/17
www.generalspecialtiesmfg.com
Universal S-Rail
Page 1 of 4
208-265-5244
Advertisement
Related Manuals for General Specialities S-RAILS-LRG-72
Summary of Contents for General Specialities S-RAILS-LRG-72
- Page 1 Page 1 of 4 Roof / Wall / Ground Mount Assembly Instructions Universal S-Rail A. ALUMINUM RAILS: UNIVERSAL T-SLOT ANGLE EXTRUSION 2” X 1½” X 1/8” or 3” X 1 ½” X 3/16” (SIZE DEPENDENT ON MODULES USED) OR PUNCHED ALUMINUM ANGLE – 2 PLACES B.
- Page 2 Page 2 of 4 COMPONENTS FOR THIS MOUNT (2) Aluminum Rails (2) Aluminum Braces (4) Mounting Feet Hardware Per each two panel mount: 15 – ¼” x 5/8” Stainless Bolts 15 – ¼” Stainless Flange Nuts 2 for feet to rail bottom 2 for brace to rail 2 for feet to brace bottom 8 for two panels to rails...
- Page 3 Page 3 of 4 INSTALLATION NOTES In the northern hemisphere, this mount should be oriented so the panels face as close to due south as possible. In the southern hemisphere, facing north. This mount is made to attach to a roof, side wall, or flat horizontal surface. If the mount is to be attached to a roof, lag bolts may be used if at least 4”...
- Page 4 Page 4 of 4 When all the panels are on the rails there may or may not be some excess rail left, depending on the brand of PV you are using. This excess may be trimmed off, or can be left at the bottom of the array to create more distance between it and the mounting surface to allow for snow build.
