USER AND INSTALLATION MANUAL
ENGLISH

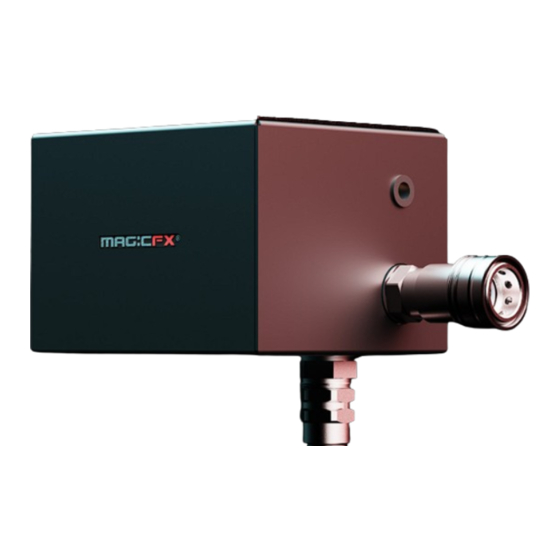

CO2 FX
CO2 SWITCH
PART02472
REV 01-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CO2 SWITCH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Magicfx CO2 SWITCH

Summary of Contents for Magicfx CO2 SWITCH

  • Page 1 USER AND INSTALLATION MANUAL ENGLISH CO2 SWITCH PART02472 CO2 FX REV 01-01...
  • Page 2 Should you detect any errors or inaccuracies in the manual, we would be grateful if you would inform us. This helps us to further improve our documentation. MAGICFX CO2 SWITCH — User and installation manual...

  • Page 3: Table Of Contents

    (Re)fill the fuel 3.4. Mount on a truss 3.5. Connect the machine 3.6. Fire with DMX 3.7. Fire with pyro 3.8. Use the emergency stop Troubleshooting Maintenance Correct disposal EC Declaration of Conformity MAGICFX CO2 SWITCH — User and installation manual...

  • Page 4: Introduction

    This document contains the original instructions in English. In case you require other languages please contact MAGIC FX. REVISION TABLE Doc nr Revision Date Description Author Approved PART02472 01-00 04-09-2023 Initial release PvdW PART02472 01-01 02-01-2024 Preparing for CMS SvdS Added notice installation MAGICFX CO2 SWITCH — User and installation manual...

  • Page 5: Description

    The CO2 SWITCH is equipped with several holes for mounting of the unit to a stage or to a truss with a truss clamp and for attaching safety cables. Furthermore, the CO2 SWITCH is suited for simultaneous activation of multiple units by creating a power link.

  • Page 6: Technical Data

    50 - 60 Hz Power Consumption 12 W Power Connector Neutrik® powerCON TRUE1 (in&out) Controlling Control Options Direct output Usage Propellant Liquid CO2 Propellant Connector CO2 Quick Connector 3/8” Propellant Consumption 0.5 L/s Technical data MAGICFX CO2 SWITCH — User and installation manual...

  • Page 7: Product Identification

    CO2 Bottle to Hose Connector 90 Degrees MFX3103 Twenty Clamp (20 kg) M10 SPR00119 Safety Steel MFX0313 Schuko to Neutrik® powerCON TRUE1 cable - 1.5 m Accessories Please contact MAGIC FX for additional possibilities. MAGICFX CO2 SWITCH — User and installation manual...

  • Page 8: Safety

    • Only authorised persons may work with the CO2 SWITCH; • Do not use the CO2 SWITCH if there are people or animals in the direct output; • Make sure that children, unauthorised people and animals do not obtain access to the CO2 SWITCH;...

  • Page 9: Rigging

    2.3. INDOOR USE The CO2 SWITCH is designed for outdoor use and use in well-ventilated indoor spaces. When used indoors, make sure you take the necessary preparations. These preparations could include, but are not limited to: • Consulting your CO2 supplier.

  • Page 10: Safety Warnings

    Missing or obscured safety symbols on the machine WARNING can lead to death or serious injury. Make sure all safety symbols are correctly in place, see section 2.6.. MAGICFX CO2 SWITCH — User and installation manual...

  • Page 11: Installation And Use

    INSTALLATION AND USE 3.1. MOUNT ON A SUPERBLASTER II Loosen the starknob by turning it counter-clockwise. Mount the CO2 SWITCH on the desired position on the SUPERBLASTER II. MAGICFX CO2 SWITCH — User and installation manual...
  • Page 12 Tighten the starknob to secure the CO2 SWITCH. 3.2. CONNECT POWER Connect the PowerCon TRUE1 power cable to the power input of the CO2 SWITCH. Connect the other end to a 100-250 Vac (50-60 Hz) power source. Do not connect more units to a single electrical circuit CAUTION than the installed fuse is able to handle.
  • Page 13 Connect the CO2 hose to the CO2 connector on the SUPERBLASTER II and the other end to the CO2 SWITCH. Do not connect more than one CO2 SWITCH and NOTICE always make sure the system is open from the output side of the CO2 SWITCH onward.
  • Page 14 Connect the CO2 hose to the CO2 bottle-to-hose connector on the CO2 cylinder. Connect the other end of the CO2 hose to the CO2 SWITCH. In case of multiple machines: Repeat steps 1 – 5 for each machine. MAGICFX CO2 SWITCH — User and installation manual...
  • Page 15 When it’s time to shoot, switch the power on. Do not use the machine if the CO2 valve is not opening CAUTION and closing correctly. Enjoy the view! Switch off the power. MAGICFX CO2 SWITCH — User and installation manual...
  • Page 16 CLEAN UP Close the CO2 cylinder. Switch the power on to release the remaining pressure. Switch the power off and disconnect the power cable(s). Disconnect the CO2 hose from the CO2 SWITCH. MAGICFX CO2 SWITCH — User and installation manual...
  • Page 17 Disconnect the CO2 hose from the CO2 bottle-to-hose connector on the CO2 cylinder. Remove the CO2 bottle-to-hose connector from the cylinder. Dismount the machine. MAGICFX CO2 SWITCH — User and installation manual...

  • Page 18: Troubleshooting

    MAINTENANCE To achieve the maximum service life of the CO2 SWITCH you must regularly clean the CO2 SWITCH and test if it is functioning correctly. Contact MAGIC FX if the CO2 SWITCH is not functioning correctly.

  • Page 19: Ec Declaration Of Conformity

    : 6-2-2020 Address : Schouwrooij 27, 5281 RE BOXTEL : B. Veroude Date : 6-2-2020 Country : The Netherlands Date : 28-08-2023 : B. Veroude Date : 6-2-2020 Signature Signature Signature Signature MAGICFX CO2 SWITCH — User and installation manual...
  • Page 20 www.magicfx.eu...
