Summary of Contents for REM POWER LYNX GSEm 7000 TDE

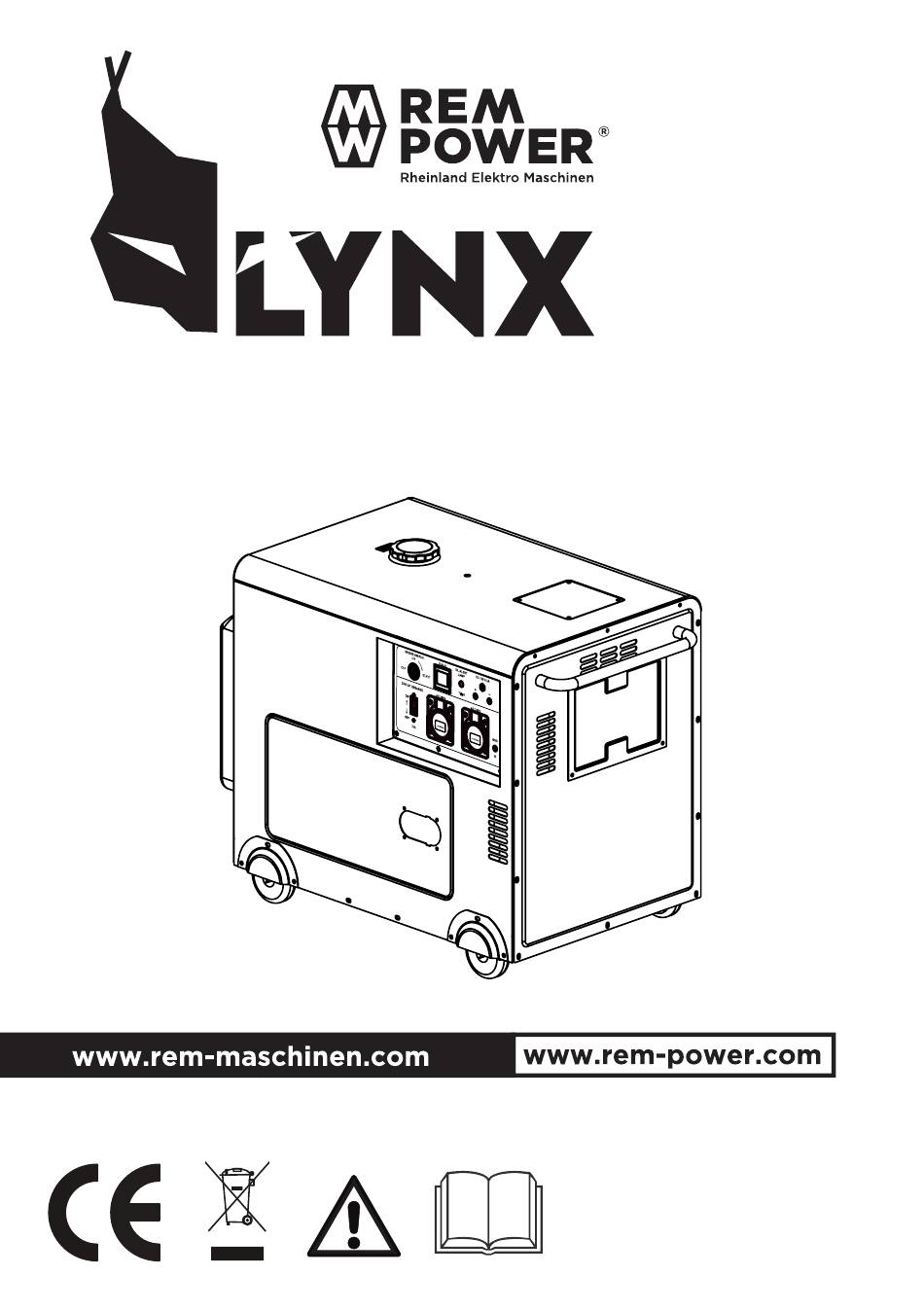

  • Page 1 GSEm 7000 TDE DIESEL GENERATOR OPERATION MANUAL...
  • Page 2: Chapter 1 Parameter Table

    Chapter 1 Parameter Table GSEm 7000 TDE Model Single/Three/Equal power Phase Frequency/Hz Max. power/KW Rated power/KW 230/400 AC voltage/V 192FE Engine model 3000 Rotating speed/rpm 92×75 Bore×stroke/mm Displacement/CC Pressure and splash compound type Lubrication method 1.65 Oil volume/L Diesel (summer 0#/winter -10#) Fuel type 12.5 Fuel tank volume/L...
  • Page 3: Chapter 2 Main Operating Parts And Location

    Chapter 2 Main Operating Parts and Location Fuel tank port Cylinder head access door Air filter access door control panel Access door Muffler guard Speed control handle combination switch Add oil port dipstick...
  • Page 4: Oil Filter

    6.1.1 Change the oil regularly Change the oil after the first 20 hours or the first month, then every 50 hours, and after three times, every 100 hours or three months. 20 hours 50 hours 100 hours or 3 replacement replacement months replacement Oil change time...
  • Page 5: Replacement Time

    6.1.3 Clean and replace the air filter element Do not use detergent to clean the element of the air cleaner. Use a soft brush or air gun to remove dust on the outer surface of the filter element. Every 3 months or 100 hours Replacement time Note: Do not start the diesel engine when there is no filter element or the filter element is damaged.
  • Page 6 Normal battery voltage 6.2 Maintenance for long-term storage If your generator needs to be stored for a long time, you must do the following: 6.2.1 Run the generator set for about 15 minutes and then shut down. 6.2.2 After stopping, when the diesel engine is still hot, discharge the old diesel engine oil, and then add new engine oil to the specified height.
  • Page 7 Attachment: electrical schematic diagram (Single three equal Three-phase Single phase power unit socket wiring circuit breaker circuit breaker Voltage switch schematic diagram) Display table Three-phase Single phase socket socket (Schematic diagram of three-camera socket wiring) Three-phase Three-phase Single phase circuit breaker socket socket Display table...
  • Page 8 (Conventional electronic lock flameout-control circuit schematic diagram) (Circuit board schematic) Fuse resistance Engine switch status START resistance Fuse protector diode IN4007 Heating button DC 12V Charging regulator Heating resistance wire Start relay Oil Pressure Oil pump Sensor solenoid Battery valve Start the motor Flywheel motor (ATS-control circuit schematic diagram)
  • Page 9 (Remote control plus one-key start and stop-schematic diagram of control circuit) Engine switch status (Circuit board schematic) +DC12V Fuse resistance Start White Control Circuit board Gray module Black Grounded Orange Signal Green Signal resistance protector diode IN4007 Fuse DC 12V Charging regulator Oil Pressure...
