Innowater SMC10 User Manual

Salt water chlorinator
Hide thumbs Also See for SMC10:

Advertisement

Quick Links

Download this manual
salt water chlorinator
smc 10-50
user manual
10-2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the SMC10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Innowater SMC10

Summary of Contents for Innowater SMC10

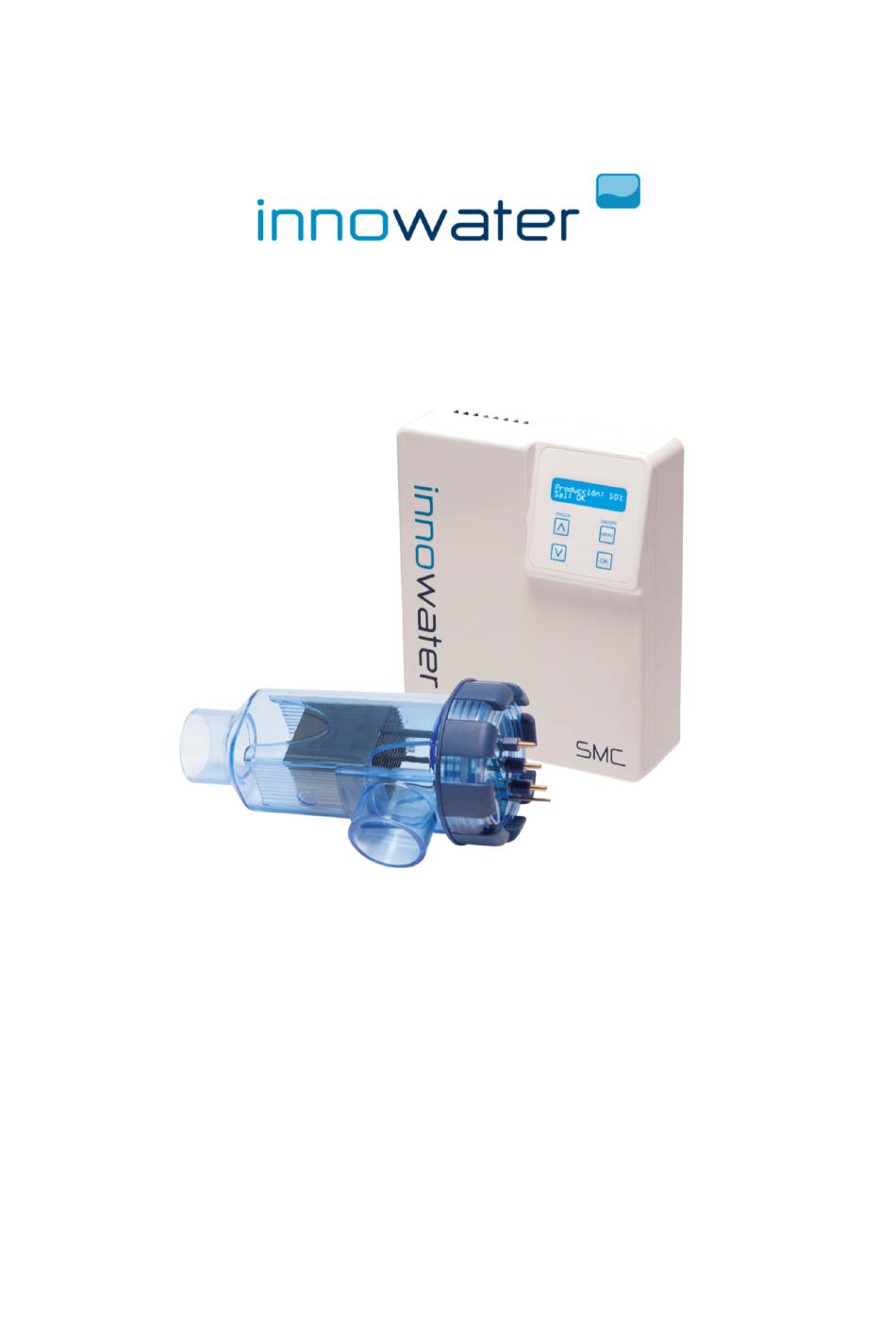

  • Page 1 salt water chlorinator smc 10-50 user manual 10-2020...

  • Page 2: Table Of Contents

    Page Safety warnings Introduction Chlorinator Installation Water Preparation Adding Salt Operation Recommendations and Warnings Manual Cell Cleaning Warranty, Technical Service and Spare Parts 10 Technical Characteristics All Rights Reserved...

  • Page 3: Safety Warnings

    0. SAFETY WARNINGS • Only qualified technical personnel should install or manipulate or the unit. The manufacturer declines any responsibility derived from the installation, the start up and from any manipulation or added component not factory installed. • Before attempting the installation or any manipulation on the unit must be disconnected from the power mains.

  • Page 4: Introduction

    1. INTRODUCTION We thank you for your purchase of an Innowater chlorinator. Innowater chlorinators are manufactured following the strictest quality controls using the most advanced technology of electrolysis resulting from our many years of swimming pool industry experience . With minimum maintenance and following elementary rules for installation and use, you will enjoy an extremely efficient device for many years.

  • Page 5: Chlorinator

    2. CHLORINATOR DESCRIPTION You will find the following items in your Innowater SMC box: 1 Control unit a LCD screen b Keyboard c DC cell cable and connector 2 Power supply cable 3 Electrolytic cell 4 Cell housing 5 Thread lock...

  • Page 6: Installation

    Once mounted you can connect your swimming pool pump power cable to the power socket located at the bottom of the chlorinator control unit. Your Innowater chlorinator is designed to automate your pool pump operation.
  • Page 7 If an automatic pH regulation system has been installed, the injection of the acid must take place unconditionally after the cell. Otherwise, the electrodes will corrode due to the acid contact and the warranty will be void. Do not place the acid tank near the chlorinator with insufficient ventilation as the gases will corrode the electronic components quickly.

  • Page 8: Water Preparation

    Cell Insert the cell in the cell housing making sure that its open window is on the water inlet side as per the diagram below. Make sure the o ring is fitted correctly & tighten the threaded nut. Then, connect the power cable to the cell terminals via the cell connector.

  • Page 9: Adding Salt

    Stabilizer 30-50 ppm 5. ADDING MINERALS/SALT Your Innowater chlorinator is compatible with the use of mineral additives or sodium salt, the choice is yours. The chlorinator must remain OFF during this operation and until the additive is completely dissolved. Operating the chlorinator with non dissolved mineral/salt could irreversibly damage the cell and the power supply, and lead to a void of the warranty.

  • Page 10: Operation

    6. OPERATION The chlorinator and its different menus are controlled with a four key keypad. Three of these keys, Λ , MENU and OK, also have a secondary function accessible by pressing and holding down the corresponding key for 2 seconds NOTE: At some points of activity or during a change of function the keyboard may seem as it is not responding immediately.
  • Page 11 6.1 TIMER MODE Press the AUTO function (OK button held for 2 seconds) to alternatively jump between manual and automatic timer modes. In manual mode, MAN will be displayed in the main screen. The pump will run constantly unless you switch the chlorinator OFF. If you want to halt the chlorine production but want the pump to keep running just set the production to 0%.
  • Page 12 6.3 MENUS 6.3.1 Timer Menu MAIN MENU 1 Timer This menu allows to you set the working periods for the AUTO mode. You can program a daily schedule in 1 hour periods. The 24 hours of a day are divided in two rows AM and PM and are represented with a rectangle.
  • Page 13 MAIN MENU 3 Polarity per. To change the polarity period, go to the Λ production screen and press MENU. Press the Polarity keys once or more until the screen on the Select period left will appear. Then press OK. Λ Use the buttons to select the period and Chang.
  • Page 14 LCD contrast Press OK to save and exit. - ■ ■ ■ ■ ■ ■ + 6.3.7 Cover menu This feature is deactivated on your model. Please contact your Innowater Deal- er for further information. 6.3.8. Motor protection menu MAIN MENU This menu allows you to activate (YES/NO) and 8 Motor protect.
  • Page 15 6.3.4 Fault messages LOW WATER LEVEL IN CELL This screen is displayed when the water does not contact the probe in the cell and the control system stops the production. Firstly verify that there is water in the cell and that its level reaches the top where the probe is located. A low water level in the cell may be due to a dirty filter, obstructed skimmer basket, obstructed pump basket or to a pump not powerful enough.

  • Page 17: Recommendations And Warnings

    7. RECOMMENDATIONS AND WARNINGS The bipolar cells of your Innowater chlorinator have been manufactured using an exclusive technique and rigorous quality controls conferring extraordinary duration and resistance. However, there are several factors that may irreversibly reduce the properties of any electrode that you should avoid in order to obtain the best performance and longest lifespan of your chlorinator.

  • Page 18: Manual Cell Cleaning

    8. MANUAL CELL CLEANING Your Innowater chlorinator is provided with a self-cleaning polarity change system that in normal conditions eliminates maintenance work. However, in exceptional cases, when the calcium concentration is very high (very hard water, old concrete pools), polarity change may not be enough to completely eliminate the calcium build up.

  • Page 19: Spare Parts

    Spare parts Innowater have spare parts available at your disposal via a network of pool shops around Australia. The use of non-original parts or the manipulation of the equipment by personnel not authorised by Innowater may cause serious problems to your chlorinator and will void the warranty.

  • Page 20: Technical Characteristics

    10. TECHNICAL CHARACTERISTICS SMC10 SMC15 SMC20 SMC30 Min flow l/min Max. pressure bar Pressure drop kpa Chlorine production g/h Output voltage (max) V Output current A Cell type Bipolar Bipolar Bipolar Bipolar Recommended salt concentration 5-35 5-35 5-35 5-35 Cell cassette material Estimated cell life span h 10.000...

This manual is also suitable for:

Smc15Smc20Smc30Smc40Smc50
