Summary of Contents for Rovin ZM9183

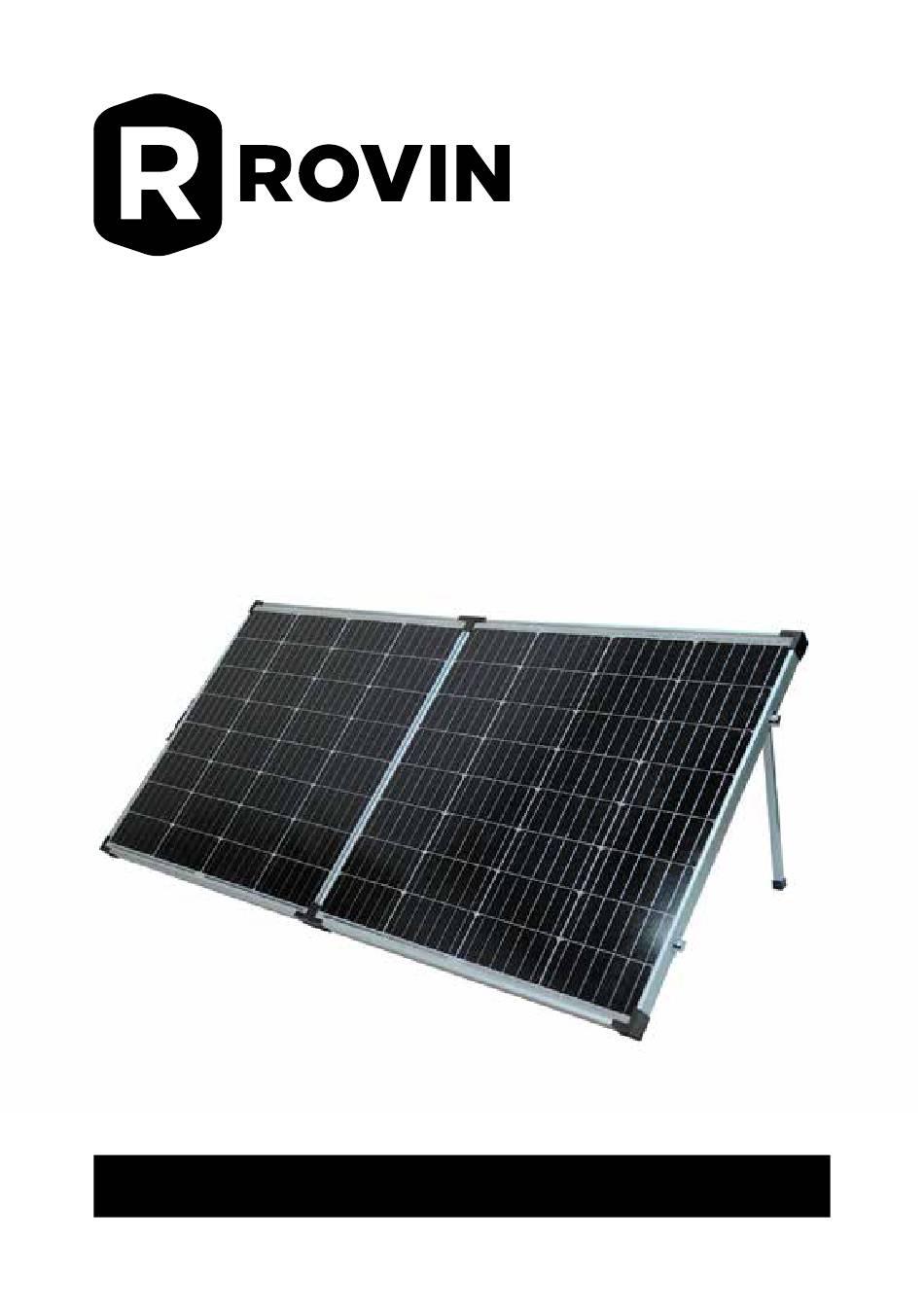

- Page 1 ZM9183 160W 12V Folding Solar Panel INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
CONTENTS Warnings & Safety Information ..............3 Box Contents ......................4 Product Diagram ....................4 Before First Use....................5 Choosing A Suitable Regulator ..............5 Operating Instructions ................... 6 Troubleshooting ....................7 Cleaning, Care, Storage & Maintenance ..........7 Specifications ..................... 8 Warranty Information .................. -
Page 3: Warnings & Safety Information
WARNINGS & SAFETY INFORMATION • Make sure to keep your solar panel away from any liquids at all times. • Keep the solar panel clean at all times (always check connectors to ensure they’re free of grit before plugging them in). To clean the panels, use a soft cloth or soft brush. -
Page 4: Box Contents
BOX CONTENTS 1x Folding Solar Panel 1x High current 1x Protective Bag with Adjustable Legs connector 1x 90cm cable PRODUCT DIAGRAM Solar Panel Adjustable Legs... -
Page 5: Before First Use
BEFORE FIRST USE Prior to using your product, please read all the safety and operating instructions thoroughly. Please ensure you follow the steps below before using the product. We recommend you keep the original packaging for storing the product when not in use. Please pay close attention to the section entitled Warnings &... -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS ADJUSTABLE SUPPORT LEGS Pull the support leg away from the Solar Panel from the foot of the leg. The support legs allow the angle of the solar panel to be adjusted for optimal performance. When the desired angle is reached, pull the latch towards the leg to lock it in position. -
Page 7: Troubleshooting
TROUBLESHOOTING FAULT POSSIBLE CAUSE SUGGESTED REMEDY Solar not Inadequate sunlight Position panel in full sun charging Plug terminals Inspect the quick connect plug terminals, incorrect polarity ensuring the polarity (+ and -) are correct. Change if incorrect. Plug terminals are Ensure the terminals in the quick connect plug not correctly seated are firmly connected. -
Page 8: Specifications
SPECIFICATIONS Rated Maximum Power (PM) 160W Power Tolerance +/-3% Voltage at Pmax (VMP) 18.2V Current at Pmax (IMP) 8.79A Open-Circuit Voltage (VOC) 23.37V Short-Circuit Current (ISC) 9.27A Normal Operating Cell Temp (NOCT) 47+/-2ºC Maximum System Voltage 1000VDC Maximum Series Fuse Rating Operating Temperature -40ºC to +85ºC Application Class... -
Page 9: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose.
