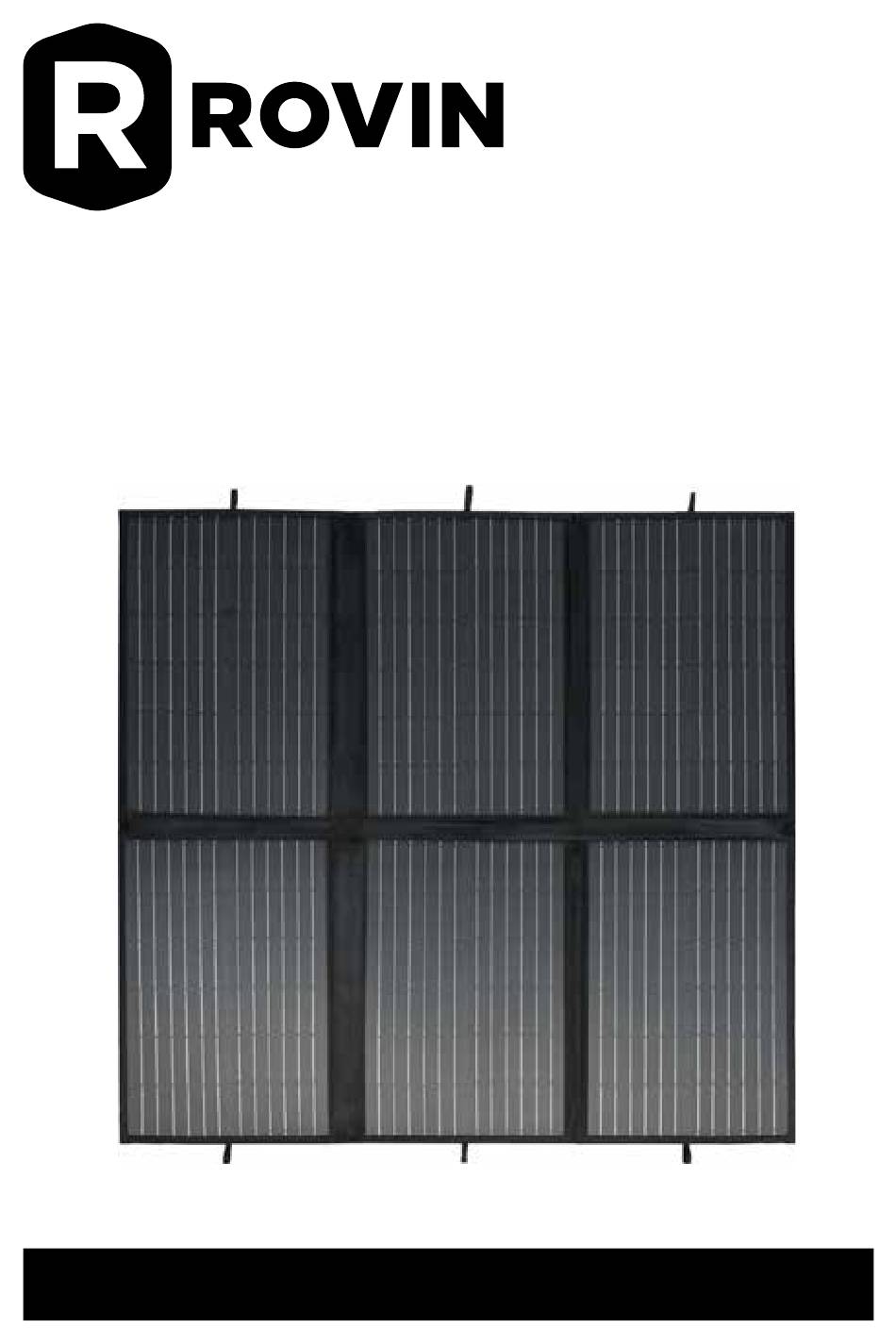

- Page 1 ZM9180 200W 12V Blanket Solar Panel INSTRUCTION MANUAL...
- Page 2 CONTENTS Warnings and Safety Information ............3 Box Contents ......................4 Product Diagram ....................4 Before First Use....................5 Choosing A Suitable Regulator ..............5 Instructions ......................5 Troubleshooting ....................6 Cleaning, Care, Storage & Maintenance ..........6 Specifications ..................... 7 Warranty Information ..................8...
- Page 3 WARNINGS AND SAFETY INFORMATION • Make sure to keep your solar blanket away from any liquids at all times. • Keep the solar blanket clean at all times (always check connectors to ensure they’re free of grit before plugging them in). To clean the panels, use a soft cloth or soft brush.
- Page 4 BOX CONTENTS 1x Blanket Solar Panel 1 x High current flylead PRODUCT DIAGRAM Solar Panel...
- Page 5 BEFORE FIRST USE Prior to using your product, please read all the safety and operating instructions thoroughly. Please ensure you follow the steps below before using the product. We recommend you keep the original packaging for storing the product when not in use. Please pay close attention to the section entitled Warnings &...
- Page 6 TROUBLESHOOTING FAULT POSSIBLE CAUSE SUGGESTED REMEDY Solar not Inadequate sunlight Position panel in full sun charging Plug terminals Inspect the quick connect plug terminals, incorrect polarity ensuring the polarity (+ and -) are correct. Change if incorrect. Plug terminals are Ensure the terminals in the quick connect plug not correctly seated are firmly connected.
- Page 7 SPECIFICATIONS Rated Maximum Power (PM) 200W Power Tolerance +/-5% Voltage at Pmax (VMP) 19.1V Current at Pmax (IMP) 10.47A Open-Circuit Voltage (VOC) 23.82V Short-Circuit Current (ISC) 11.29A Normal Operating Cell Temp (NOCT) 47+/-2ºC Maximum System Voltage 1000VDC Maximum Series Fuse Rating Operating Temperature -40ºC to +85ºC Application Class...
- Page 8 WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose.
