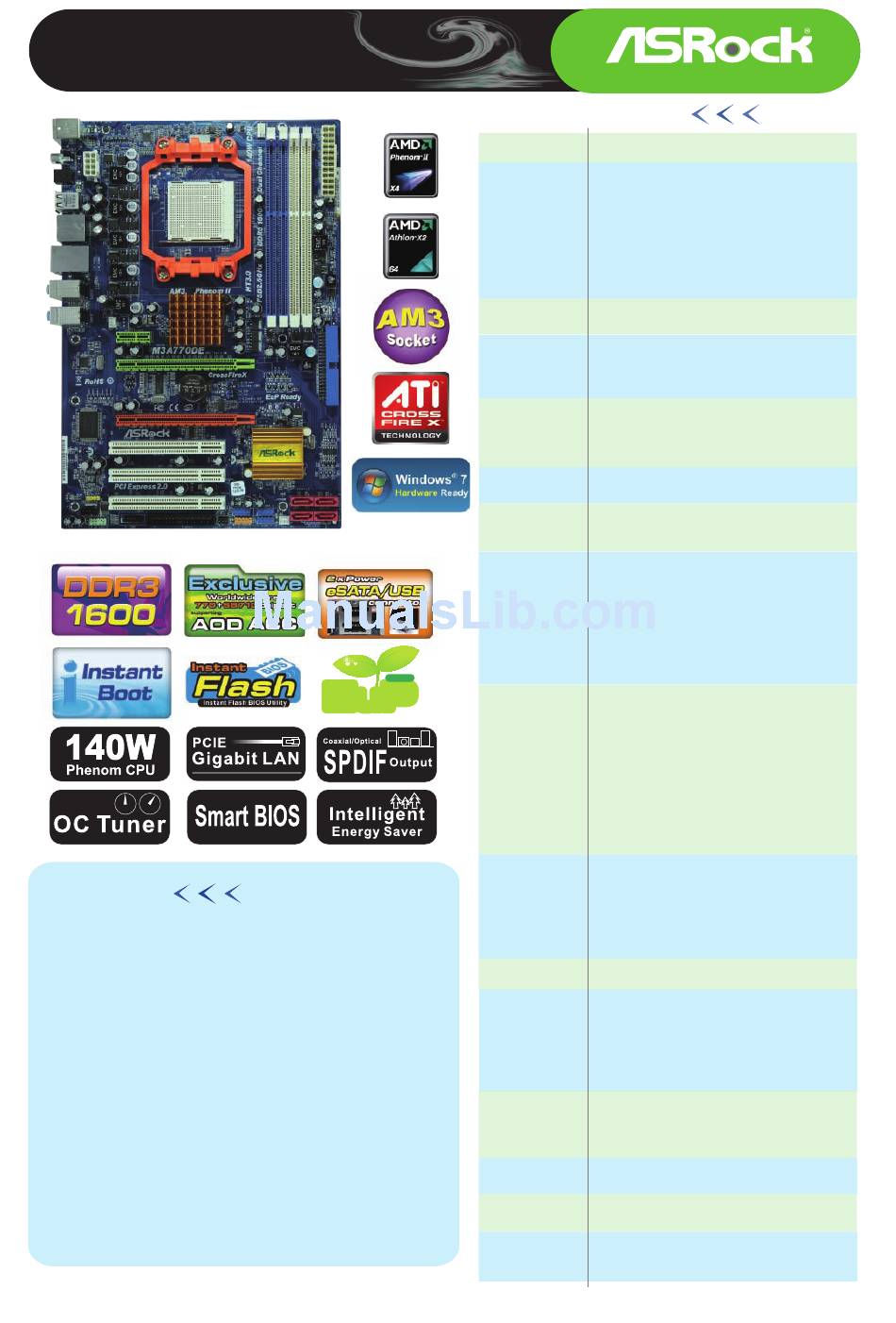

ASROCK M3A770DE Brochure

M3A770DE
AMD 770 + SB710 Chipsets
Product Brief
- AM3 Socket
- Supports CPU up to 140W
- Supports AMD OverDrive™ with ACC feature
(Advanced Clock Calibration)
- Dual Channel DDR3 1600
- Supports ATI™ CrossFireX™
- 2 x Powered eSATAII/USB Connectors

- EuP Ready

- Supports ASRock Instant Boot, Instant Flash,
Smart BIOS, ASRock OC Tuner,
Intelligent Energy Saver
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.

Detail Specification

Platform
CPU
Chipset
Memory
Expansion Slot
Audio
LAN
Rear Panel I/O
EuP EuP
Ready
Connector
BIOS Feature
Support CD
Unique Feature
Hardware Monitor
OS
Certifications
Accessories
w ww.as rock.com
- ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm
- Support for Socket AM3 processors: AMD Phenom
X4 / X3 / X2 (except 920 / 940) and Athlon II X4 / X3 / X2
processors
- Supports CPU up to 140W
- Supports AMD OverDrive™ with ACC feature
(Advanced Clock Calibration)
- AMD LIVE! Ready
TM
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology
- Northbridge: AMD 770
- Southbridge: AMD SB710
- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 1600/1333/1066/800 non-ECC,
un-buffered memory
- Max. capacity of system memory: 16GB
- 2 x PCI Express 2.0 x16 slots (green @ x16 mode,
orange @ x4 mode)
- 1 x PCI Express 2.0 x1 slot
- 3 x PCI slots
- Supports ATI CrossFireX
TM TM
- 7.1 CH Windows Vista™ Premium Level HD Audio
®
(VIA VT1708S Audio Codec)
®
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 2 x Powered eSATAII/USB Connectors
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and
SPEED LED)
- HD Audio Jack: Side Speaker / Rear Speaker / Central /
Bass / Line in / Front Speaker / Microphone
- 4 x Serial ATAII 3.0 Gb/s connectors, support RAID
(RAID 0, RAID 1, RAID 10, and JBOD), NCQ, AHCI and
"Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 8Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM Voltage Multi-adjustment
- Supports Smart BIOS
- Drivers, Utilities, AntiVirus Software (Trial Version), AMD
OverDrive Utility
TM
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
- Microsoft Windows XP / XP Media Center / XP 64-bit /
® ®
Vista / Vista 64-bit compliant
TM TM
- FCC, CE, WHQL
- EuP Ready (EuP ready power supply is required)
- Quick Installation Guide, Support CD, I/O Shield
- ATA 133 cable
- 2 x SATA data cables (optional)
II
