DI BLASI R32 Pedal Operation & Maintenance Manual

Hide thumbs Also See for R32 Pedal:

Advertisement

Table of Contents

Di Blasi Tricycle Operation & Maintenance Manual
Models R32 Pedal & R34 Electric

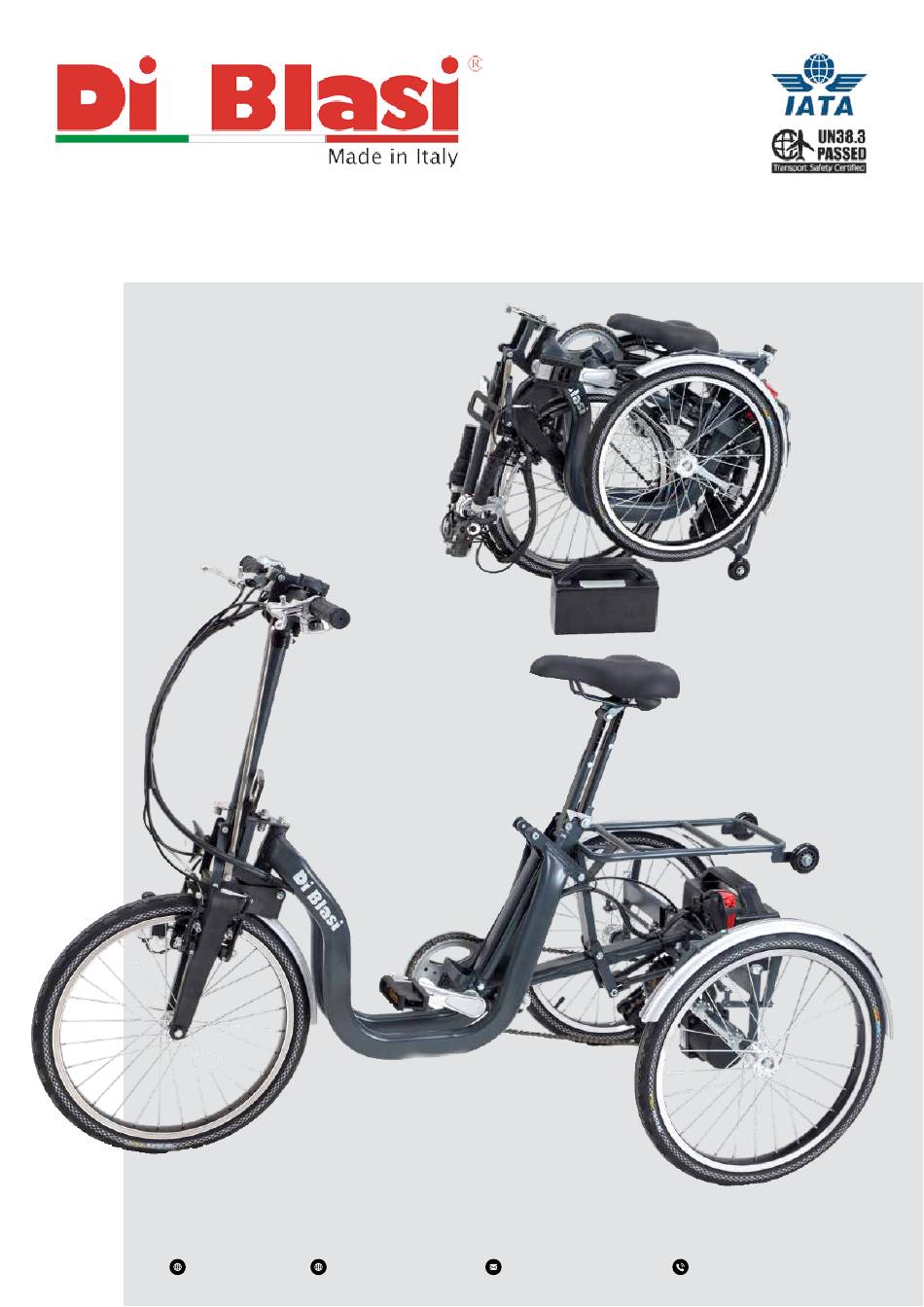

Folded Di Blasi
R34 Electric Tricycle
Assembled Di Blasi
R34 Electric Tricycle
Original manual of Di Blasi Industriale s.r.l.
Rewritten for the Australian market by Trike Bike Australia
www.di-blasi.com
www.trike-bike.com.au
bigm@trike-bike.com.au
07 5522 0583

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R32 Pedal and is the answer not in the manual?

Questions and answers

Related Manuals for DI BLASI R32 Pedal

Summary of Contents for DI BLASI R32 Pedal

  • Page 1 Di Blasi Tricycle Operation & Maintenance Manual Models R32 Pedal & R34 Electric Folded Di Blasi R34 Electric Tricycle Assembled Di Blasi R34 Electric Tricycle Original manual of Di Blasi Industriale s.r.l. Rewritten for the Australian market by Trike Bike Australia www.di-blasi.com...

  • Page 2: Riding Rules

    Important Information Before you ride on your new Di Blasi folding tricycle, please make sure to go through the safety checks outlined in this manual. This Di Blasi tricycle isn’t designed for off-roading, racing, or hauling heavy cargo around. It’s strictly manufactured and designed for normal riding, cruising, and leisure.
  • Page 3 STANDARD JUNIOR CADET...
  • Page 4 How to unfold the tricycle While lifting the handlebar, the bars When the tricycle is Open the tricycle by lifting the handlebar automatically rotate into in the riding folded, it stands up by one of its grips Fig. 2 and Fig.3. Push position.
  • Page 5 How to fold the tricycle Release the battery box from the hook Fig. 15 Release the hook located on the left side of the and remove it from its support on the tricycle. seat posts Fig. 16 and push the seat forward Fig. Turn the left crank backwards in horizontal 17 and downward Fig.

  • Page 6: Safety Checks

    Di Blasi series of tricycle under all conditions. The use of this tricycle carries inherent risks that may be unpredictable or unavoidable, and it is the sole responsibility of the owner or rider to assume those risks.
  • Page 7 Brakes operation This tricycle is equipped with two independent hand brakes, both acting on the front wheel. Each brake is activated by one of two levers placed on the handlebar. Except in case of an emergency, never squeeze the brakes abruptly, especially in sharp turns, wet pavement, or on gravel or other loose surfaces.

  • Page 8: Battery And Charger

    Using the electric motor The R34 Di Blasi tricycle model is equipped with two different systems for controlling the electric motor: control by pedals (PAS), or control by twist grip. Electric assistance by pedalling (PAS) A device allows the assistance of the motor by...

  • Page 9: Charging The Battery

    Charging the battery • Remove the protection plug (B) from the battery connector (A). • Connect the charger plug (G) to a mains power socket: the indicator (H) lights up green. • Connect the charger socket (F) to the plug (A) of the battery and the indicator light (H) lights up red if the battery requires charging.
  • Page 10 Lighting The tricycle should only be ridden after dark if necessary, and then with extreme care and awareness. The tricycle is equipped with front and rear LED lights . It is also equipped with front white reflector (incorporated in the front light), rear red reflector (incorporated in the tail light), spoke reflectors and pedal reflectors.
  • Page 11 Adjustments Handlebar hook adjustment: The handlebar stem is locked in the vertical, riding position by the hook located on the top of the front fork. Before riding: • Check that the hook is properly positioned: it should adhere completely and without slack to the handlebar stem, as shown in Fig.
  • Page 12 Hook seat posts adjustments When the tricycle is unfolded, the correct position of the hook (A) is shown in Fig. 38. Never ride the tricycle if the hook (A) is not completely hooked to the post (L). If the hook is a little bit raised as shown in Fig.

  • Page 13: Tyre Pressure

    Tyre pressure Tyre inflating pressure is: 58 PSI (400 KPA) While inflating be sure that the bead of the tyre is at an even distance from the rim all the way around on both sides so the tyre seats properly. Make sure that the valve stem is straight up through the hole in the wheel rim.

  • Page 14: Brakes Adjustment

    Brakes adjustment As soon as brakes begin to lose efficiency, it is necessary to recover the wear of the brake shoes. Adjustment can be effected by means of the adjusters on the brake levers Fig. 24: • Unlock the lock nut (A); •...
  • Page 15 Download this information for the airline from this link: www.tinyurl.com/2accp5f9 Copyright notice for this manual This Di Blasi folding tricycle manual is the exclusive property of Trike Bike Australia and is protected by the Copyright Act 1968 (Commonwealth of Australia) and international copyright laws.
  • Page 16 Find us on Facebook, talk to other owners and stay updated on everything Trike Bike https://www.facebook.com/TrikeBike Trike Bike Australia Australian Distributor for Trike Bike, Sobowo & Di Blasi Unit 2, No. 481 Scottsdale Drive Varsity Lakes, QLD 4227 Australia. www.di-blasi.com www.trike-bike.com.au...
