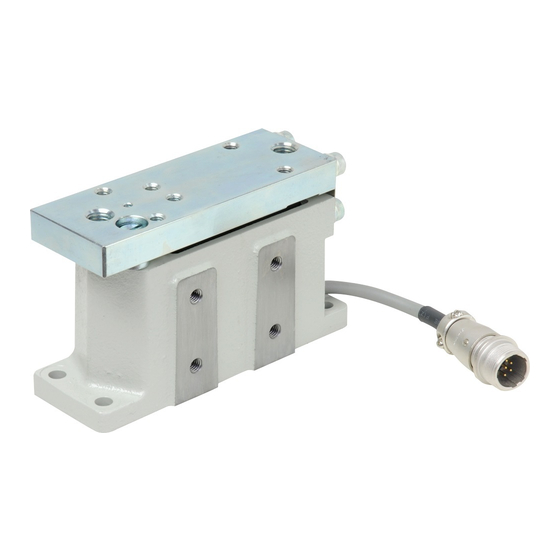

Tension Detectors
MODEL
LX-005TD, LX-015TD, LX-030TD, LX-050TD, LX-100TD, LX-200TD,
LX-005TD-928, LX-015TD-928, LX-030TD-928, LX-050TD-928,
LX-100TD-928, LX-200TD-928
INSTRUCTION MANUAL
Read through this manual, and use the unit correctly.
Make sure to understand "Cautions on safety" completely.
Store this manual carefully, and make sure to send it to the end user.
This manual confers no industrial property rights or any rights of any other kind, nor does it confer
any patent licenses.
Mitsubishi Electric Corporation cannot be held responsible for any problems involving industrial
property rights which may occur as a result of using the contents noted in this manual.
2010 MITSUBISHI ELECTRIC CORPORATION
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mitsubishi Electric LX-005TD-928
Summary of Contents for Mitsubishi Electric LX-005TD-928
- Page 1 This manual confers no industrial property rights or any rights of any other kind, nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be held responsible for any problems involving industrial property rights which may occur as a result of using the contents noted in this manual.
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION 1 : Caution on Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 SECTION 2 : Summary of Tension Detector - - - - - - - - - - - - - - - - - - - - - - - 2 SECTION 3 : Installation of tension detector 3.1 Installing cautions - - - - - - - - - - - - - - - - - - - - - - - - - 3... -
Page 3: Section 1 : Caution On Safety
Caution We shall not be responsible for the damages caused by repair, disassembly, modification or others per- formed by any third party other than the MITSUBISHI ELECTRIC personnel or the personnel specified by MITSUBISHI ELECTRIC. The specifications mentioned in this “Cautions on Safety” and other sections in this instruction manual are sub-... -
Page 4: Section 2 : Summary Of Tension Detector
2. Summary of Tension Detector This detector is capable of detecting either load of the compression direction and tension direction. You are free to install it to match your own machine. The tension detector is installed basically through the pillow block to the roller which, of the guide rollers as shown in Fig.1, will become the vertex, and converts the material tension into load for detection. -
Page 5: Section 3 : Installation Of Tension Detector
3. Installation of tension detector This product is a high sensitivity detector manufactured by precision processing and assembling technolo- gy, and should be installed and handled with greatest care. 3.1 Installing cautions WARNING Do not use the standard product in flammable or explosive atmosphere. It may lead to an explosion if operated without using explosion-proof type and safety barrier. - Page 6 (1) Make sure to use a self-aligned type bearing so that imbalances in the tension detecting roller, defective unevenness in the sensor mounting surface, other machining errors, length change of the roller due to temperature change, etc. will not be detected as tension. To minimize the tension detecting error at the same time, keep machining error to a minimum.
-
Page 7: Mounting
(7) In the case of low tension operation, minimize the mechanical loss to keep the tension control error to a minimum. (8) The tension detecting roller cannot be supported at one side. (9) Install guide rollers before and after the tension detector so that material angles 1, 2 may not differ. Guide roller Guide roller 2... - Page 8 (2) Detail of mounting of tension detector ( when using LX-PLT of LX-TD type option ). When the optional LX-PLT is purchased, LX-PLT fitting bolts are furnished. However, the pillow block, hexagon socket head bolts and others are to be prepared by user. Pillow block Hexagon nut Optional plate fitting bolt...
-
Page 9: Section 4 : Wiring Procedure
4. Wiring procedure 4.1 Caution for wiring WARNING Do not drop sawdust or wire chips into product. Or it may lead to product damage, smoking, firing, or other danger. 4.2 Connection between tension detector and controller. (1) The drawing shows the connection in the case of tension vector direction applied in the compressive direction. -
Page 10: Section 6 : Specifications
LX-015TD LX-030TD LX-050TD LX-100TD LX-200TD Type Explosion-proof name LX-005TD-928 LX-015TD-928 LX-030TD-928 LX-050TD-928 LX-100TD-928 LX-200TD-928 type Rated load ( N ) 1000 2000 Applicable load direction • Compression and tension directions. Mounting • Floor mount, wall mount, ceiling mount Cable specification •... -
Page 11: Section 7 : Outside Dimensions
However, other specifications such as cable specifications are different. 7.1 Figure 1 - - - - - - LX-005TD, LX-015TD, LX-030TD, LX-050TD LX-005TD-928, LX-015TD-928, LX-030TD-928, LX-050TD-928 2-M10 (depth 13) For pillow block fitting screw 4-7 fitting hole... -
Page 12: 电器电子产品有害物质限制使用标识要求」的表示方式
「 电器电子产品有害物质限制使用标识要求」的表示方式 Note: This symbol mark is for China only. 含有有害 6 物质的名称，含有量，含有部品 本产品中所含有的有害 6 物质的名称，含有量，含有部品如下表所示。 产品中有害物质的名称及含量 有害物质 部件名称 多溴联苯 多溴 铅(Pb) 汞(Hg) 镉(Cd) 六价铬(Cr(VI)) (PBB) 二苯醚(PBDE) 外壳 × ○ ○ ○ ○ ○ 张力检测器 差动变压器 × ○ ○ ○ ○... - Page 13 MEMO...
- Page 14 HEAD OFFICE: TOKYO BUILDING, 2-7-3 MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN Effective June 2018 JZ990D50401D Specifications are subject to change without notice. (MEE)
