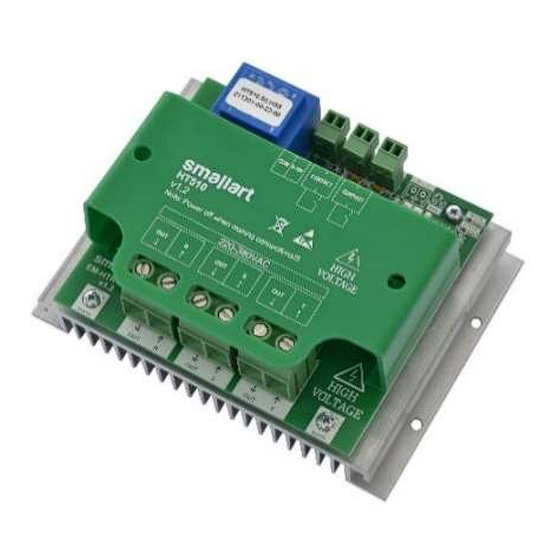

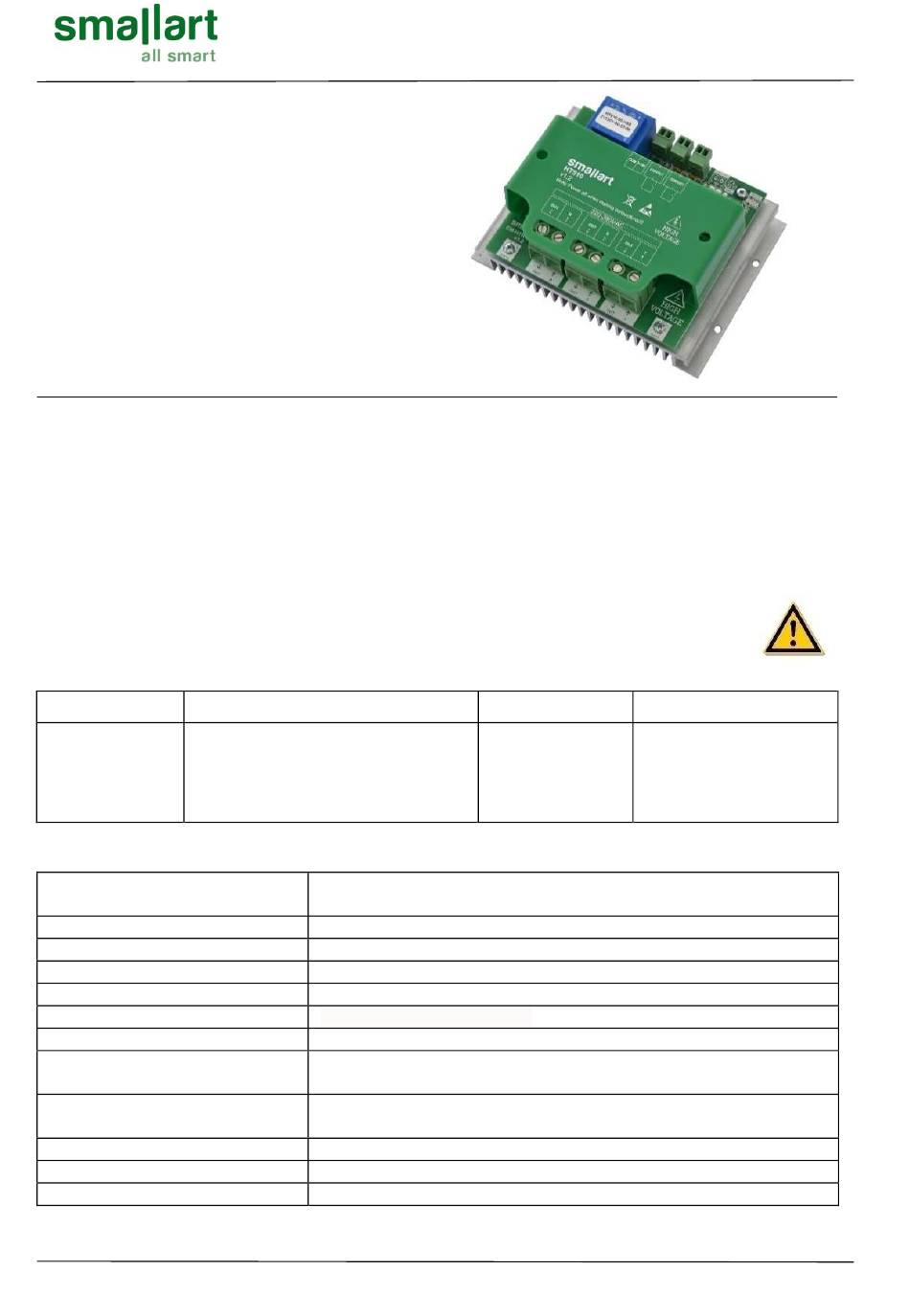

Smallart HT510.50.HS3 Quick Start Manual

Features

Up to 6.4 kW (220 VAC) electrical heater control

Maximum 29 A Current Single Phase at 220VAC

Up to 10kW (380 V AC) electrical heater control

Maximum 15 A Current Three-phase at 380 VAC

220 VAC or 380 VAC supply

0-10 V input signal

2 electrical heater safety contacts

High current resistant screw terminal block
 Surface montage
Usage
HT5xx series is used as electrical heater controller in HVAC applications and building automation.
Notes on Usage
Please read the manual carefully. HT510 has been designed and manufactured in accordance with the latest
technological developments and safety rules. Safety warnings must be observed to prevent injury and property
damage.
Safety Advice - Caution
The installation, maintenance and repair of the device should be done by authorized personnel. The power
of the device is provided from R and S phases.
About Product
Product Code
1 Analog 0-10V (Active) Input
1 x monophase or 1 x Three-phase (R-S-T)
HT510.50.HS3 Out (Heater)
1 Three-phase (R-S-T) Output (Heater)
2 Safety Contacts
Technical Features
Operating Voltage
Pulse Period
Operating Temperature
Storage Temperature
Operating Humidity
Cable Connections
Input Signal
Flow
Load Type
Inputs
Outputs
Dimensions
Doc: 00-22-00, v1.2, 20230905
www.smallart.com.tr
Definition
220VAC ± %10, 50/60Hz
380 VAC ± %10, 50/60Hz
60 sec
0-40 °C
-20+70℃
Max. %90 rh, Non-condensing
Screw Type PCB Terminal Blocks
0-10V
Resistive load, maximum 29 A Current Single Phase at 220VAC,
Maximum 15 A Current Three-phase up to 380 VAC
Up to 6.4 kW (220 VAC) electrical heater control
Up to 10kW (380 V AC) electrical heater control
2 pcs Safety Contacts1 pcs 0 - 10V Active Analog Input
1 x monophase or 1 x Three-phase (Heater)
147,5 x 65 x 105 mm (W x H x L)
HT510.50.HS3 Technical Catalog
Power
0-6.4 kW
(Monophase)
0-10 KW
Communication
--
