Smallart SM2008FFS Series Manual

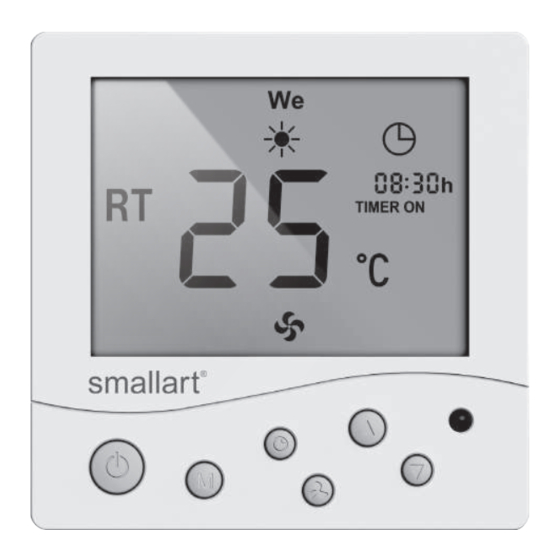

SM2008FFS Series Fan Coil Controller

Technical Data

Temperature Range
Sw tch ng D erent al
Operat ng Temperature
Operat n Hum d ty
Storage Temperature
Operat ng Voltage
Sw tch current rat ng
W r ng D ameter
D mens on
Hole p tch

Model

2 Pipe
SM2008FFS-L
SM2008FFS-TRL
SM2008FFS-T4RL
5 ~ 35˚ adjustable
Approx ± 1˚C
0~ 45˚C
5~ 90%RH
-10~ 60˚C
AC220V±10% , 50/60 Hz
1A
0.5 ~1.5 mm²
86 ᵡ 86 ᵡ13 mm(HᵡWᵡD)
60 mm
4 Pipe
PRODUCT DATA AND INSTALLATION GUIDE
SM2008FFS ser es controllers are stand alone
m croprocessor based controllers w th LCD
d splay. It can manage on/o control of the
fans, and 2 or 4 fcu. It has models w th opt ons,
backl ght, remote controller, and t mer.

Package Content

Controller
Back Light
Remote Control
Climate Control and Building Automation Systems
Screw set
Timer Timer(5+2)
- - -
-
