- Page 1 Xerox® EX-i 280 Print Server Powered by Fiery®, version 3.0 Product Security Guide...
- Page 2 © 2024 Fiery, LLC. The information in this publication is covered under Legal Notices for this product. 45243719 *45243719* 22 January 2024...
-
Page 3: Table Of Contents
Product Security Guide Contents Contents Product Security Guide overview ............5 Product Name . - Page 4 Product Security Guide Contents...
-
Page 5: Product Security Guide Overview
This document describes design, functions, and features of Xerox products relative to Information Assurance (IA). Product Name Company IoT Names Fiery Marketing Names Xerox Xerox ® Versant ® 280 Press Xerox® EX-i 280 Print Server Powered by Fiery® version 3.0... -
Page 6: Digital Front End (Dfe) Description

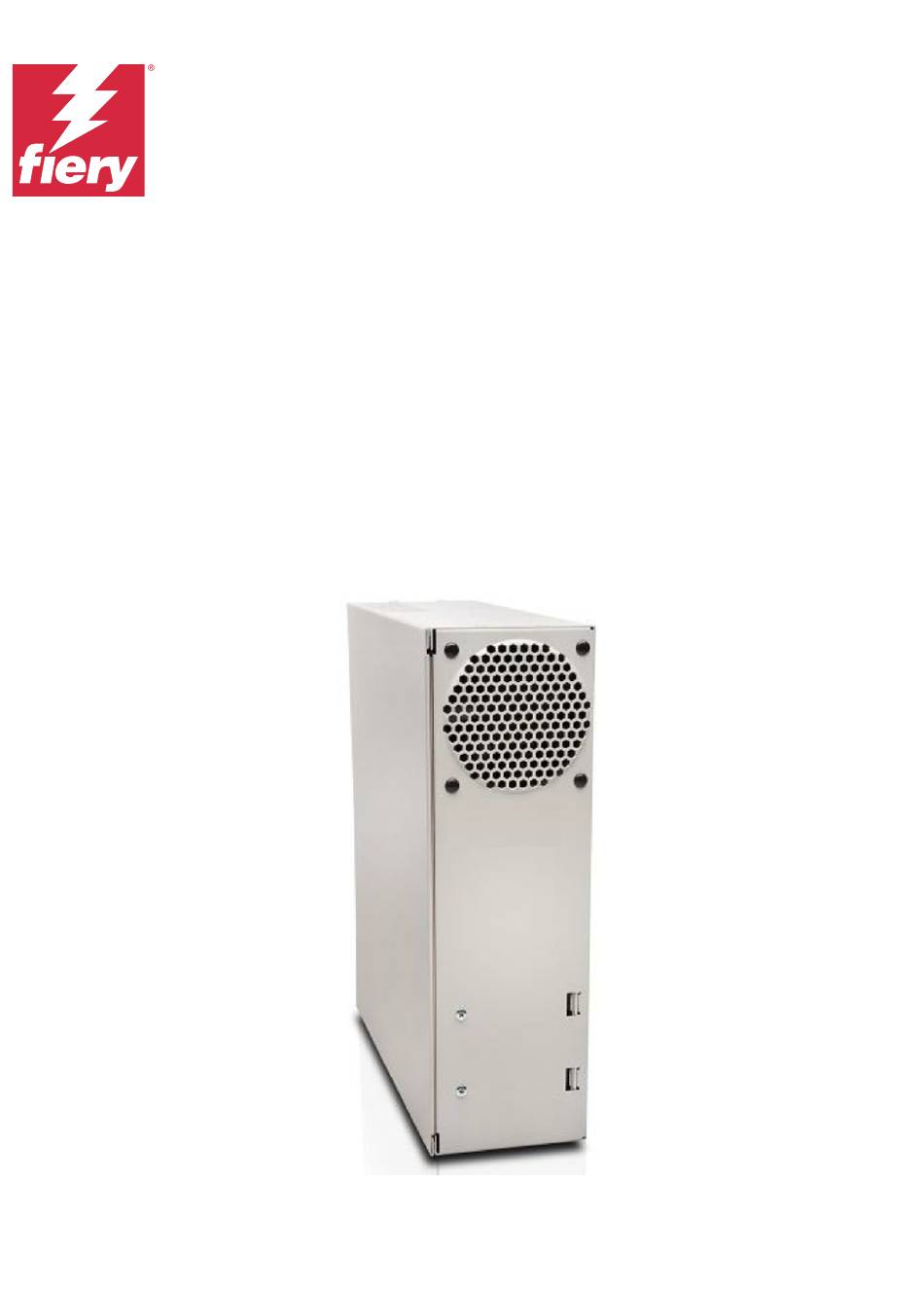

Product Security Guide Digital Front End (DFE) Description Digital Front End (DFE) Description When a customer prints, the motherboard and printer interface board process image data. The printer interface board is a custom board that allows the EX-i Print Server to communicate with the printer. The CPU controls the transfer of image data to and from the motherboard and runs the PostScript interpreter. - Page 7 Product Security Guide Digital Front End (DFE) Description Figure 2: EX-i Print Server front panel...
-
Page 8: Ex-I Print Server - Print Engine System Interface Diagram
Product Security Guide Digital Front End (DFE) Description EX-i Print Server – Print Engine System Interface Diagram... -
Page 9: Dfe Functions
Product Security Guide DFE Functions DFE Functions Memory information Table 1: Volatile Memory Type (SRAM, Size User Modifiable Function or Use Process to Sanitize DRAM, etc) (Y/N) DRAM 8 GB Main System Memory Power Off Server (receives jobs sent to Direct queue) SDRAM (on video 1 GB... -
Page 10: External Connections
Fiery System erased when Software reinstalling the system software. • Print jobs, scan jobs, and other user Third party and Fiery data. partner sanitation tools can be used to • Backup image for complete wipe data on factory default these devices. -
Page 11: Usb Ports
USB backup media that was made bootable in the Fiery System Restore utility. Graphical user interface Fiery DFE provides the following user interfaces for the operator or administrator: • Command WorkStation on the monitor lets the administrator manage jobs and the DFE. The operator can... -
Page 12: Logical Ports And Filtering Information
802.1x is an IEEE standard protocol for port-based network access control. This protocol provides an authentication mechanism before the device gets access to the LAN and its resources. When enabled, the Fiery server can be configured to use EAP MD5-Challenge or PEAP-MSCHAPv2 to authenticate to an 802.1x authentication server. - Page 13 Product Security Guide Logical ports and filtering information Port Name 161-162 SNMP HTTPS SMB/IP ISAKMP 4500 IPsec NAT traversal 5353 Multicase DNS (mDNS) 3702 3702 WS-Discovery Fiery ports • • 6310 9906 • 8010 • 8021-8022 • 8090 • 9906 • 21030 •...
-
Page 14: Device Software Update Control
Fiery Updates The Fiery Updates feature provided in Command WorkStation allows users to install and download the available updates and patches from the network. Fiery Updates also allows users to view the history of completed update and patch installation. •...
