Download
Share
Print this page
  1. Manuals
  2. Brands
  3. B&G Manuals
  4. Touchscreen
  5. Vulcan Series
  6. Quick manual

B&G Vulcan Series Quick Manual

Hide thumbs Also See for Vulcan Series:
1
2
3
4
5

Advertisement

Quick Links

Download this manual

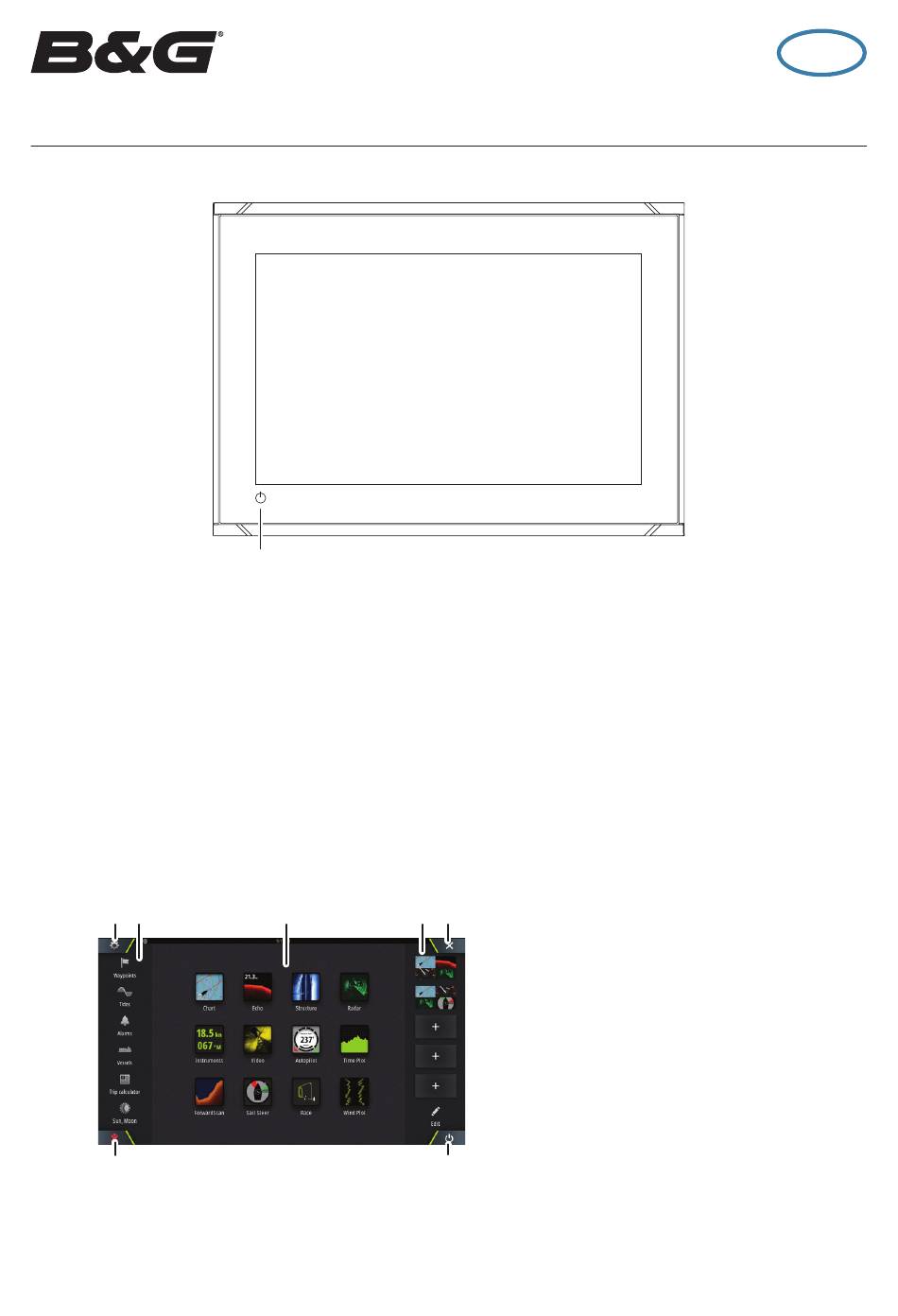

Front panel
1
Touch Screen
2
Power key
•
Press and hold: turns the unit ON/OFF.
•
Short press once: displays the System Controls dialog.
•
Repeat short presses: toggles through preset dimming levels.
Home page
B C
F
01_EN_988-11560-003
Vulcan™ Series
Quick Guide
1
2
A
D E
A.
Application buttons
B.
Settings button
C.
Tools
D.
Favorites
E.
Close button
F.
Man Over Board (MOB)
button
G.
System Controls button
G
Vulcan™ Series |
EN
Quick Guide - EN
|
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vulcan Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for B&G Vulcan Series

Summary of Contents for B&G Vulcan Series

  • Page 1 Vulcan™ Series Quick Guide Front panel Touch Screen Power key • Press and hold: turns the unit ON/OFF. • Short press once: displays the System Controls dialog. • Repeat short presses: toggles through preset dimming levels. Home page Application buttons Settings button Tools Favorites...
  • Page 2 The MOB mark To create a MOB mark: press the MOB button. To stop displaying navigational information to the MOB waypoint: cancel the navigation from the menu. Edit a favorite page Enter the Favorites edit mode: • Tap the Edit icon. •...

  • Page 3: System Controls Dialog

    Adjust panel size You can adjust the panel sizes in a split page. Tap the adjust split button in the System Controls dialog to show the resize icon Drag the resize icon to set preferred panel size Save the changes by tapping the screen System Controls dialog Used for quick access to system settings.

  • Page 4: Sailsteer Panel

    Charts • Zoom the chart by using spread or pinch gestures, or by using the zoom buttons. • Move the view in any direction by panning the chart. • Display information about a chart item by tapping the item. Waypoints To create a waypoint: select the new waypoint option in the menu.

  • Page 5: Product Manuals

    TimePlot panels Two predefined layouts. Tap left/right panel arrow to switch between layouts. Autopilot • Activate the autopilot controller from the Control bar. • Select an autopilot mode by pressing the mode button on the Control bar. • Switch to standby mode from the autopilot controller or by using physical Standby key.
