Xencelabs Pen Display 16 Bundle Quick Start Manual page 6

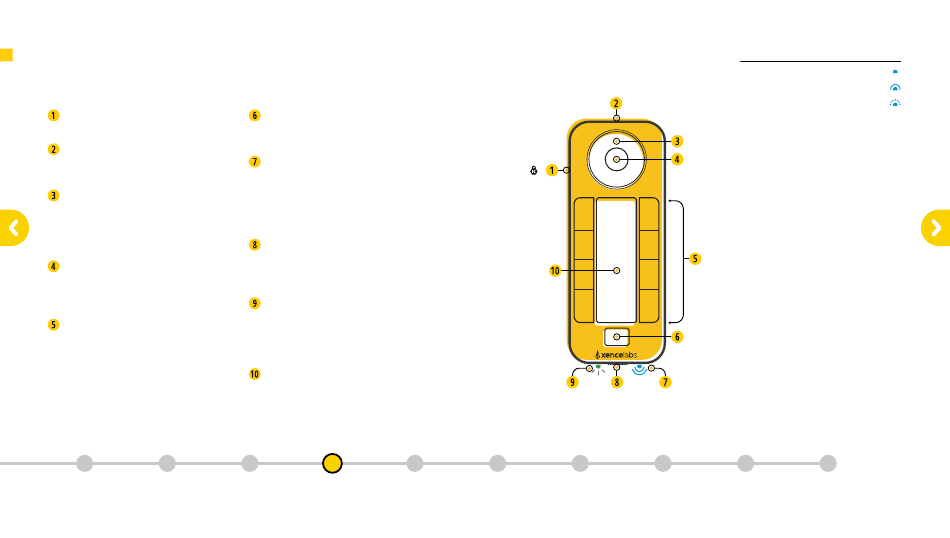

Key Features of the Quick Keys
Xencelabs Pen Display 16 Bundle
Security
Kensington NANO Security Slot™.
USB-C Port
Charge the battery and/or connect to
the computer.
Dial
Physical dial that is precise, easy to use
and can be used to increment certain
functions (eg. zoom, brush size, etc.) as
set by the Dial Mode Button.
Dial Mode Button
Switch between up to 4 different modes
per application. Each mode can be
assigned a different color.
Eight Shortcut Keys
5 customizable sets of 8 keys per
application for a total of 40 shortcuts per
application. You can disable sets if they
are not needed. For example, group your
workflow activities into sets.
(eg. sketching, coloring, editing).
1 2
What is in Getting Key Features of the
the Box Started Pen Display 16
Set Button
Allows you to switch between up to
5 shortcut sets.
Connection Indicator
Blinking blue light indicates searching
for connection, solid blue light indicates
successful wireless connection and
breathing blue light when connected via
USB cable.
Power Slide Switch
Slide and release to turn on/off.
Adjustable sleep times are in the settings
panel.
Charging Indicator
Solid green light indicates full charge,
breathing green light indicates charging,
solid amber light indicates the device has
a low charge.
OLED Display
Displays shortcut key assignments.
3 4 5
Key Features of Connecting the
the Quick Keys Pen Display 16
6 7
Download Connecting Charging the
the Driver Quick Keys Quick Keys
Wirelessly
Connection Indicator
Solid Blue – Connected
Breathing Blue – Wired Connection
Blinking Blue – Trying to Connect
Connection
Indicator
8 9 10
Key Features of Register Your
the Driver New Product
Solid Blue - Con
Solid Blue - Con
Solid Blue - Con
Breathing Blue
Breathing Blue
Breathing Blue
Blinking Blue -
Blinking Blue -
Blinking Blue -
4
