    IntelliRupter PulseCloser Fault Interrupter ® ® Outdoor Distribution (15.5 kV, 27 kV, and 38 kV) Docking Station Setup Table of Contents Introduction Serial Connection With A Docking Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

  • Page 2: Introduction

    Introduction Qualified Persons WARNING Only qualified persons knowledgeable in the installation, operation, and maintenance of overhead and underground electric distribution and transmission equipment, along with all associated hazards, may install, operate, and maintain the equipment covered by this publication . A qualified person is someone trained and competent in: ●...

  • Page 3: Warranty Qualifications

    Introduction will be free of defects of workmanship and material. Should any failure to conform to this warranty appear under proper and normal use within 10 years after the date of shipment, the seller agrees, upon prompt notification thereof and confirmation the equipment has been stored, installed, operated, and maintained in accordance with recommendations of the seller and standard industry practice, to correct the noncon- formity either by repairing any damaged or defective parts of the equipment or (at...

  • Page 4: Safety Information

    Safety Information Understanding Several types of safety-alert messages may appear throughout this instruction sheet and on labels and tags attached to the product. Become familiar with these types of messages and Safety-Alert the importance of these various signal words: Messages DANGER “DANGER”...

  • Page 5: Overview

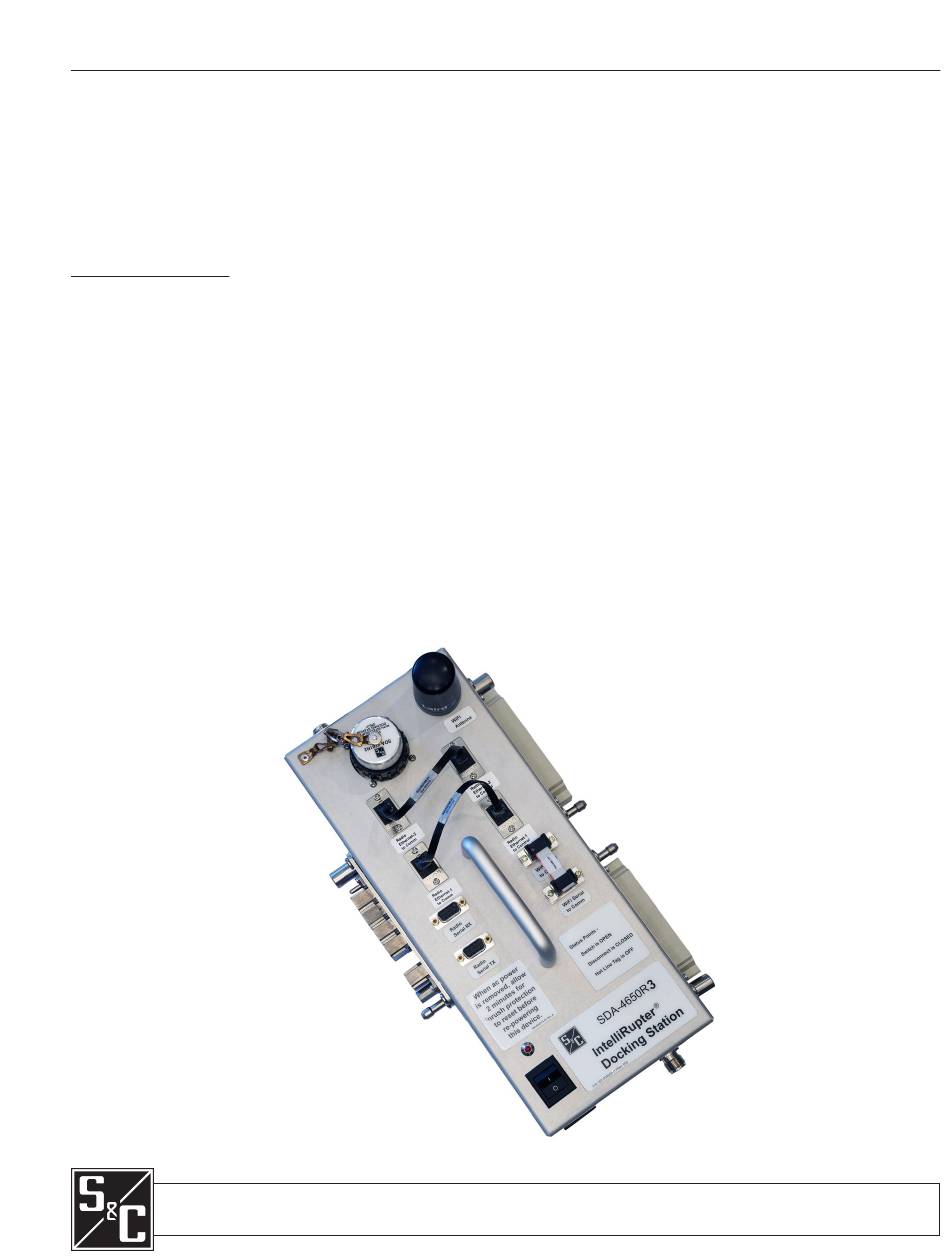

    Overview Overview These instructions cover the procedure for operating the IntelliRupter PulseCloser Fault Interrupter docking station. This device powers the protection and control module when it is removed from the IntelliRupter fault interrupter. It also permits uploading and down- loading configuration settings by using a dedicated base memory module. The docking station can also be used with a communication module when it is removed from the IntelliRupter fault interrupter and installed in the docking station with a protection and control module.

  • Page 6: Setup

    Setup Setup Follow these steps to set up the docking station: Set the docking station on a sturdy work surface. If GPS operation is to be STEP 1 . checked, place the docking station near a window so satellite signals can be received by the user-furnished GPS antenna.
  • Page 7 Setup NOTICE The Global Positioning System requires up to 5 minutes to “lock on” and provide timing signals . If desired, the protection and control module clock can be set manually on the IntelliLink Setup Software Setup>General>Time screen . See Figure 1 . Follow the instructions on the screen .

  • Page 8: Establishing Wi-Fi Connection

    Establishing Wi-Fi Connection Establishing Wi-Fi Connection The Wi-Fi transceiver provides secure wireless point-to-point communication to a wireless-equipped personal computer operating under the IEEE 802.11b standard. Trans- mission range is typically 150 feet (46 m) or less. Click on the IntelliLink software or LinkStart icon or select Program STEP 1 .
  • Page 9 Establishing Wi-Fi Connection Figure 3 . Screen showing the Wi-Fi connection in progress . The secure connection device driver will begin transmitting an encrypted, invisibly addressed “wake-up” message to the communication module. Progress is noted on the horizontal indicator bars. In addition, the status indicator on the protection and control module pulsates, dim to bright, while the Wi-Fi connection is being established.
  • Page 10 Establishing Wi-Fi Connection Signal strength is continuously shown on the vertical indicator bars. See Figure 4. Click on the IntelliLink button. The IntelliLink Setup Software will open. STEP 3 . After logging in, the settings in the protection and control module can be reviewed and changed as appropriate.
  • Page 11 Establishing Wi-Fi Connection If new settings have been programmed in the protection and control module and they should be used when the module is installed in the IntelliRupter fault interrupter base, go to the Setup>General>Site-Related>Operation screen. In the On Next Power-up, Use Settings From field, select “Control.”...

  • Page 12: Serial Connection With A Docking Station

    Serial Connection With A Docking Station Serial Connection With A Docking Station If event communication with an IntelliRupter fault interrupter control module cannot be established over the Wi-Fi link, a direct serial connection can be made to the module when it is installed in the docking station.

  • Page 13: Serial Connection For Version 3 .4

    Serial Connection for Version 3.4.x and Earlier Serial Connection for Version 3.4.x and Earlier Connect with NOTICE IntelliLink® Setup The following procedure is used with IntelliRupter fault interrupter installer versions Software 3 .4 .x and earlier . For newer installer versions, go to the next section, starting on page 19 .
  • Page 14 Serial Connection for Version 3.4.x and Earlier Figure 9 . The IntelliLink Connect dialog box . Click on the Change Setup... button. This will open the Options dialog box. STEP 3 . Click on the Communications tab, shown in Figure 10. Change the connection from UDP/IP to Serial and select the correct COM port.

  • Page 15: Reloading Firmware With The Download Utility

    Serial Connection for Version 3.4.x and Earlier When the communications parameters have been set on the Options dialog box, STEP 4 . click on the Save & Exit button. When the Options dialog box closes, the Connect dialog box will appear. Click STEP 5 .
  • Page 16 Serial Connection for Version 3.4.x and Earlier The Download Utility application will try to automatically establish commu- nication with the control but will eventually time-out. The connection status for the DU is displayed in the lower left hand corner. See Figure 12. Figure 12 .

  • Page 17: Verification Of Correct Operation

    Serial Connection for Version 3.4.x and Earlier Figure 13 . The Communications Setup dialog box . The settings may not exactly match Figure 13, but the important parameters are STEP 4 . shown there. Set the Conn. Type to “Serial” and select the correct Comm Port. The Baud Rate should be set to “57600.”...
  • Page 18 Serial Connection for Version 3.4.x and Earlier Check the Setup>General>Revisions screen. See Figure 14. Determine whether STEP 3 . the correct firmware has been installed. After verification is complete, change the communication parameters of IntelliLink software back to the default settings. Figure 14 .

  • Page 19: Serial Connection For Version 3 .5

    Serial Connection for Version 3.5.x and Later Serial Connection for Version 3.5.x and Later Connect with NOTICE IntelliLink Setup The following procedure is used with IntelliRupter fault interrupter installer versions Software 3 .5 .x and later . For earlier installer versions, see the previous section, starting on page 13 .
  • Page 20 Serial Connection for Version 3.5.x and Later Click on the Cancel button. Then, select Tools>Options… on the main menu. STEP 3 . See Figure 17. Figure 17 . Location of the Tools>Options . . . button . This will launch the IntelliLink software Options dialog box. Click on the STEP 4 .

  • Page 21: Reloading Firmware With The Download Utility

    Serial Connection for Version 3.5.x and Later Select Connection>Connect to Device... from the main menu. See Figure 19. STEP 5 . Figure 19 . The menu selection Connect to Device ..Log in with a username and password. To obtain the default values, contact the STEP 6 .
  • Page 22 Serial Connection for Version 3.5.x and Later The Firmware Update dialog box opens. See Figure 22. STEP 3 . Figure 22 . The Firmware Update dialog box . If any of the software components installed in the control have the same or later STEP 4 .

  • Page 23: Verification Of Correct Operation

    Serial Connection for Version 3.5.x and Later Verification of After the control firmware has been successfully loaded, follow these steps to verify the control is operating correctly using the IntelliLink software: Correct Operation After closing the Update dialog box, the IntelliLink software will prompt for STEP 1 .
  • Page 24 Serial Connection for Version 3.5.x and Later Locate the Tools menu option at the top of the screen. The communication STEP 4 . parameters are on the Tools>Options menu. See Figure 18 on page 20. Change the Connection Type setting to “UDP/IP” and click on the Save & Exit button.

  • Page 25: Shutting Down

    Shutting Down Shutting Down NOTICE Always turn off the docking station power switch before disconnecting the modules . The docking station includes an inrush current limiter . It requires about 2 minutes to reset after the power switch is turned off, and power cannot be turned on during that time interval .

  • Page 26: Bmm Revisions For The Docking Station

    BMM Revisions for the Docking Station BMM Revisions for the Docking Station In 2010, a GROUND TRIP BLOCK lever was added to the IntelliRupter fault interrupter. Software revision 2.2.9 (and later versions) detects whether a GROUND TRIP BLOCK lever is installed. If a GROUND TRIP BLOCK lever is present, its configuration parameters are shown on the Setup>General>User Commands screen, and its On/Off state is shown on the Operation>Main screen.
