Room&Board Streeter Assembly Instructions

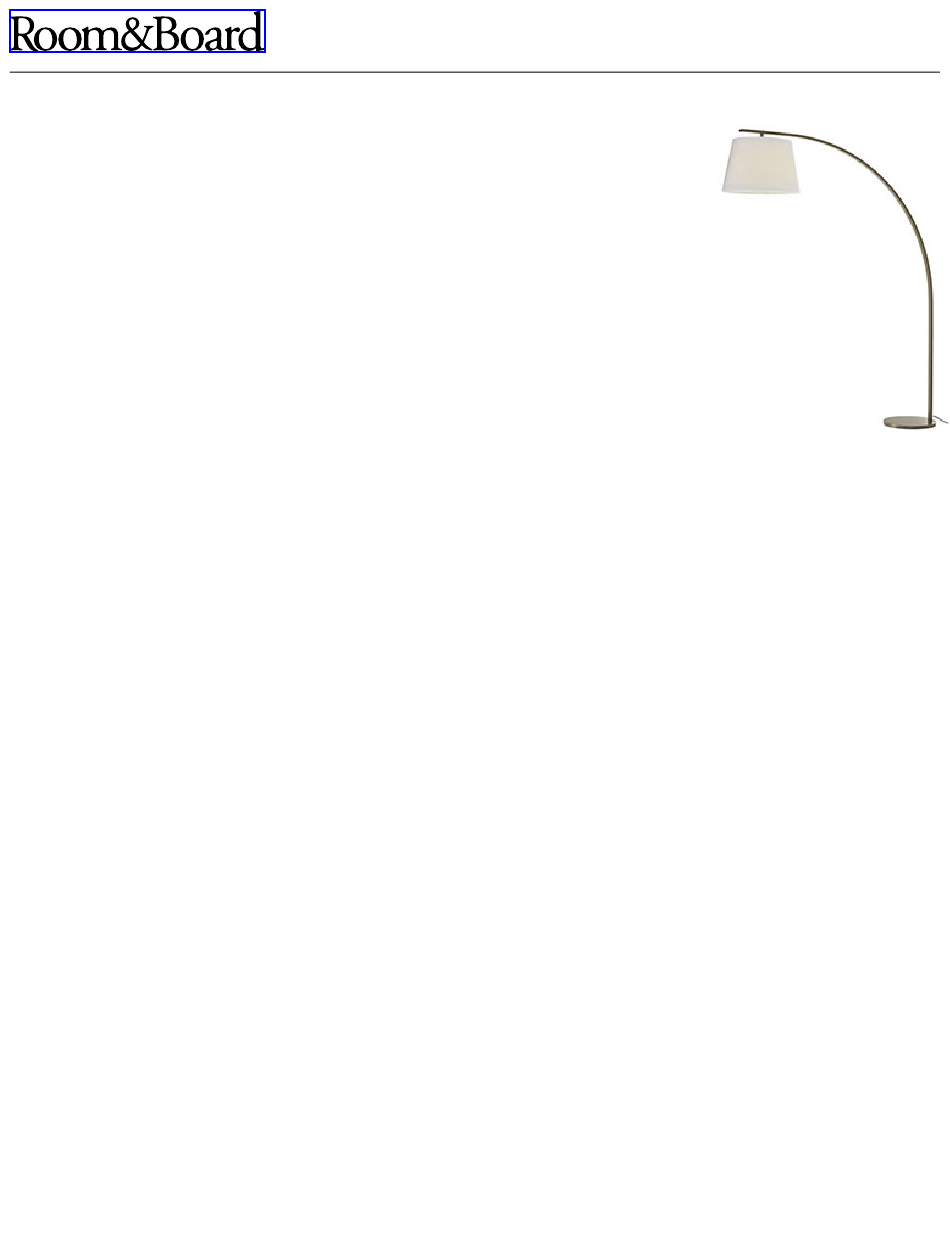

Streeter Floor Lamp Assembly
Instructions
List of parts:
Streeter lamp stem
lamp shade
weighted base
2 Allen head screws
3 cardboard assembly supports
150W halogen bulb
Tools needed:
Allen wrench (included)
Note: To avoid damage to this product, whenever possible, utilize the help of a second person when assembling,
adjusting or moving.
Directions:
1. In a large, open area, remove the lamp stem and weighted base from the packaging and place them on a flat,
protected surface to avoid damage.
2. Fold the three cardboard assembly supports and use them to prop up the lamp stem as shown in the image
below. This setup will allow you to attach the weighted base without risking damage to the lamp stem. (Figure 1)
3. Position the weighted base at the end of the lamp stem. With the assistance of a second person, align the holes
in the weighted base to the holes in the bottom of the lamp stem, insert the two Allen head screws into the
holes and use the provided Allen wrench to fasten the components together completely. Ensure each screw is
tightened fully before moving on to the next step. (Figure 2)
4. Once the stem and weighted base are securely attached, carefully tip the lamp up to a standing position. To
avoid bending the stem, grasp the stem as closely to the base as possible. Utilize the help of a second person
whenever possible. (Figure 3)
5. With the lamp positioned in its desired location, attach the lamp shade to the hanging socket. To do this, first
unscrew the metal threaded ring attached to the socket, then slide the shade frame up onto the socket while a
second person screws the threaded ring back into place. Finally, insert the light bulb into the socket and twist
into place. (Figure 4)
6. If your lamp is placed on uneven flooring, rotate the adjustable leveling foot under the weighted base to
properly position your lamp. (Figure 5)
WE'RE HERE TO HELP 800.301.9720
