Summary of Contents for Equator EHC 30422

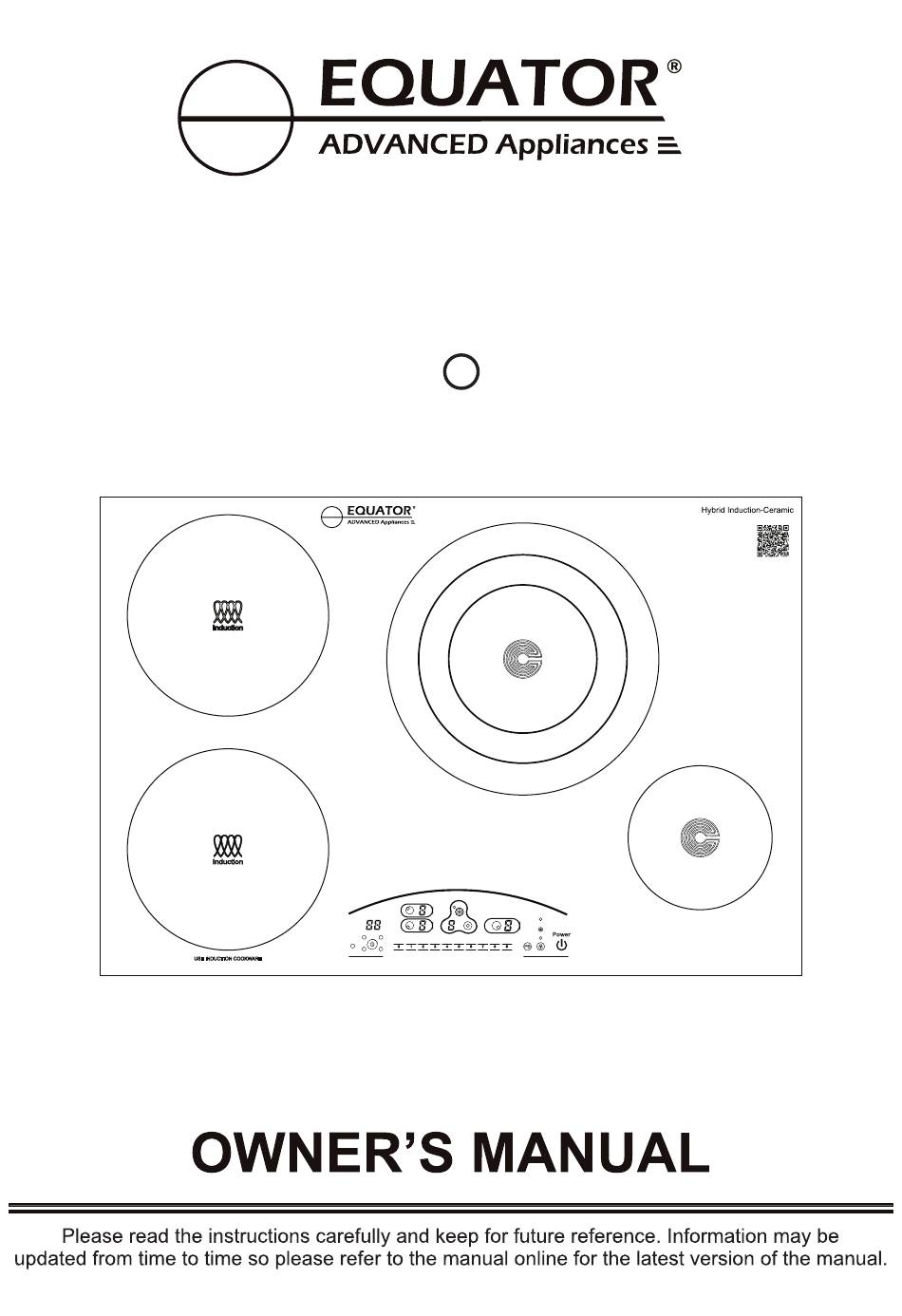

- Page 1 Electric Hybrid Cooktop 30” Built-In 2 Induction + 2 Ceramic EHC 30422 Keep Warm Pause...
- Page 3 Insufficient spacing around appliance Website: EquatorAppliances.com QR Code 1. Open Smart Phone 2. Open Camera 3. Scan QR Code 4. Click the Link...
- Page 4 Congratulations on your new Hybrid Induction-Ceramic Cooktop! In addition to its contemporary design, this is a highly sophisticated engineered product that will give you many years of satisfaction. Here are some of the best reasons for buying your appliance for the ultimate cooking experience: Optional use of Induction or Ceramic burners to allow use of any cookware 9 Power Levels for precision cooking...
-
Page 5: Installation
Installation Follow cutout dimensions of the countertop as indicated on the diagram. Before cutting out the countertop, check that the dimensions in the diagram correspond to the dimensions of the product. Ensure the work surface is heat-resistant and is at least 1.2 inches thick. Ensure the safety distance between the sides of the cooktop and the inner surfaces of the countertop is at least 0.12 inches. - Page 6 Ensure that the following conditions are met for adequate ventilation of the cooktop and that the supply and exhaust air is not blocked: The safety distance between the cooktop and the cabinet or the vent hood should be at least 30 inches. If the cooktop is installed above an oven, the oven must have its own fan.
-
Page 7: Electrical Connections
Electrical Connections The cooktop must connect to a separate, grounded wire, single phase, AC only electrical supply with its own circuit breaker. These appliances must be installed in accordance with National Electrical Codes, as well as all state, municipal and local codes. -
Page 8: Cooktop Features
Cooktop Features Keep Warm Pause 1. Glass Surface 6. Left Rear Burner Display 2. Left Rear Burner (Induction) 7. Left Front Burner Display 3. Left Front Burner (Induction) 8. Center Burner Display 4. Center Burner (Ceramic) 9. Right Front Burner Display 5. -
Page 9: Compatible Cookware
Compatible Cookware Ceramic Burner - Use any cookware for electric cooking. Induction Burner - Use only induction cookware or induction compatible cookware. NOTE: Follow all cookware manufacturers' recommendations when using any type of cookware on the cooktop. Since... -
Page 10: Operating The Cooktop
Operating the Cooktop Ensure the cooktop is plugged into an electrical outlet. Place suitable cookware onto the cooktop. Main Power Press the Power icon for three seconds. This powers on the whole cooktop. You will hear a beep and see flashing lines - on the display next to all the burners. Burners To select the burner to use and the power level, press the burner icon for the desired burner. - Page 11 Timer Press the Timer icon to activate the timer. Each time the timer icon is pressed, an indicator light around the icon illuminates, which indicates the position of the different burners. Once the burner is selected, press the numbers on the control panel to set the number of minutes to set the cooking time.
-
Page 12: Maintenance
Maintenance Wait for the cooktop to cool down completely before cleaning it. Do not use chemicals and abrasive materials to clean the cooktop. Never wash the cooktop with water. Use mild detergent and a damp cloth to wipe down the cooktop. Periodically, use a vacuum cleaner to remove dust from intake and exhaust vents. -
Page 13: Error Codes
Ensure voltage is below this range. 260-275V. Low voltage: Lower than Ensure voltage is above this range. 145-160V. Specifications Table Model EHC 30422 Electrical 240V / 60Hz / 37A Number of Burners Type of Burners 2 Induction and 2 Ceramic Total Power / Levels... - Page 14 Equator Advanced Appliances USA, founded in 1991, offers Efcient, High-Quality, and Innovative household appliances. Our Mission is to simplify domestic chores and save Time, Space, and Energy. Our Vision is to enhance our Customer’s Quality of Life!
