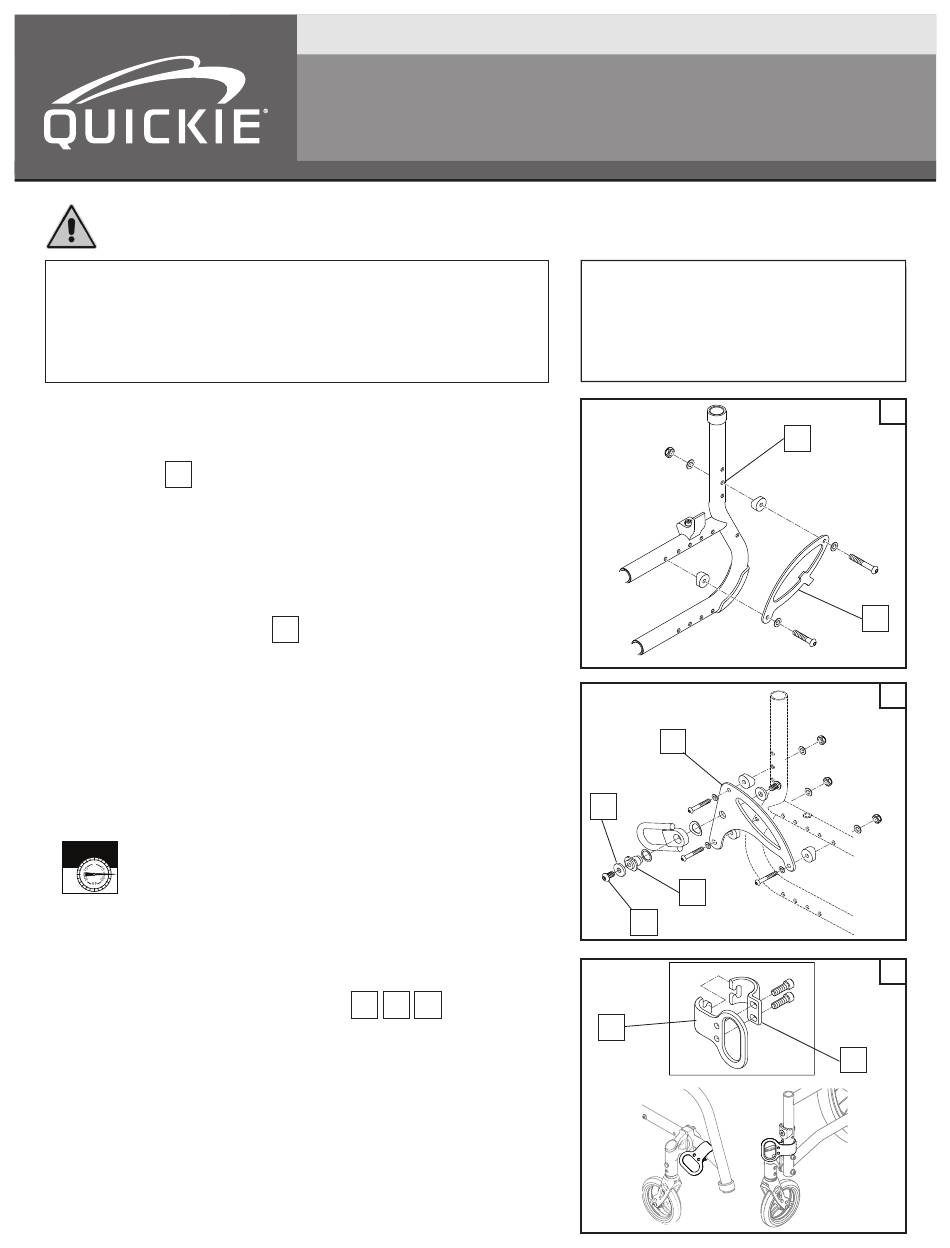

Sunrise Medical QUICKIE 2 LITE TRANSIT Installation

Please read these instructions carefully before beginning the installation. Failure to understand and follow installation instructions
may result in injury to installer and/or end user and may void the warranty. For more information on WC-19 Transit components,
or If you have any questions, call Sunrise Medical Technical support at 800-333-4000 or go to www.sunrisemedical.com.
Parts included in this Transit Kit:
1. 2x M8 1.25 x 14(rear)
2. 3x Back release saddle (rear)
3. 12x 1/4 AN flat washer (rear)
4. 6x Nylock nut 1/4-28 (rear)
5. 2x Rear Transit bracket
A. REAR TRANSIT BRACKET INSTALL
Works with serial numbers after: Q2L-152965.
1
1. Pre-installation:
a. Place your Q2 Lite Wheelchair on a Table or Flat work surface for best
installation results.
b. Remove the wheels, armrests, and any other obstruction to gain access to
the frame holes (A) that will secure the Rear Transit Bracket(B).
c. Using a 7/16" wrench and 5mm hex key reimove the Rear support bracket
and hardware as shown in (figure 1).
2. Install the Rear Transit Brackets
a. Assemble the brackets and hardware for both sides of the chair as shown in
figure 2.
b. DO NOT use the Button head screw (C) unless you intend to install a WC-
19 approved Lap Belt.
c. If you choose to install a Pelvic Belt, mount the belt between Screw/washer
(C)(E) and pivot (D).
d. The button head screw(C) includes a patch that is intended to be permanent
once installed.
d. Torque all hardware to 144 in-lb.
TORQUE ! TORQUE !
0
B. FRONT TRANSIT BRACKET INSTALLATION
1. Assemble and Place the Front Transit Bracket
a. Assemble the brackets and hardware for both sides of the chair as shown in
figure 3.
b. For an easy installation, Start by placing the smaller clamp half(G) on the frame
tube in the location shown. Attach the Loop half of the Transit Bracket(H) by
holding the two pieces in place and loosely threading the screws thru both
pieces.
c. Repeat this process for the other side of the wheelchair.
S E T I O N
Q U I C K I E 2 L I T E T R A N S I T I N S TA L L AT I O N
6. 2x Pelvic Belt Hardware (rear)
7. 2x Front Transit Bracket
(4 pieces: 2x Loop and 2x Clamp)
8. 4x SHCS 1/4-28 x 1/2 (front)
9. 4x M5 Socket Head Screw (front)
10. 2x Front Transit location decals.
2
3 4 5
E N G L I S H
Tools needed:
a. 5mm hex key
b. 5/32" hex key
c. 3/6" hex key
d. 7/16" open end wrench
e. Torque wrench and hex bits
F
E
D
C
H
FIXED FRONT
( W C - 1 9 )
1
A
B
2
3
G
SWING-AWAY
