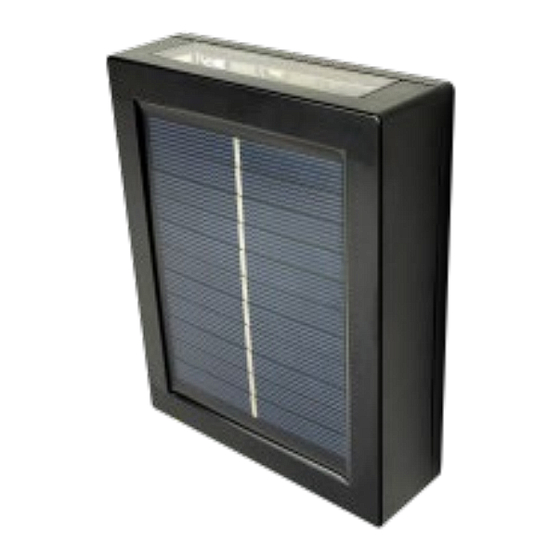

Essential SmartBright Solar Wall Light
BWC010
Mounting instruction/安装使用说明书/
Type Number
BWC010 LED1/730
Installation:
Punch 4 pre-installed
Signify(China)InvestmentCo.,Ltd.
BuildingNo.9,Lane888,TianlinRoad,MinhangDistrict,Shanghai,China
Postalcode:200233
昕诺飞（中国）投资有限公司
中国上海市闵行区田林路 888 弄 9 号楼
邮编：200233
Flux(lm)
100lm
Insert the plastic
holes of Φ7.8
expansion tube
在安装面打 4 个
插入塑料膨胀管
Φ7.8 的预装孔
วิ ธ ี ก ารติ ด ตั ้ ง/
Battery
Battery type
parameter
3.7V/1.2Ah
Ternary lithium
Turn the switch to ON and
hang the luminaire on the wall
将开关拨到 ON 位置,
把灯挂在墙上
Hướng dẫn sử dụng
PV voltage
CCT
5V/1.1W
3000K
TYPE
H
d1
Lamp body
125
100
The luminaire must be installed
in the direction shown
灯具必须按图示方向安装
Ta
0-45℃
Unit: mm
d2
31
4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Philips Essential SmartBright BWC010
Summary of Contents for Philips Essential SmartBright BWC010
- Page 1 Classified Essential SmartBright Solar Wall Light BWC010 วิ ธ ี ก ารติ ด ตั ้ ง/ Mounting instruction/安装使用说明书/ Hướng dẫn sử dụng Battery Type Number Flux(lm) Battery type PV voltage parameter BWC010 LED1/730 100lm 3.7V/1.2Ah 5V/1.1W 3000K 0-45℃ Ternary lithium Unit: mm TYPE Lamp body...
- Page 2 Classified Button Function: • ON: When the switch is "ON", the luminaire is on and charging during the day, and light on at night automatically. • OFF: When the switch is "OFF", the luminaire is powered off and will not light up at night and will not charge during the day. •...
