MOUNTING INSTRUCTIONS:
HELIOSHADE CLASSIC AND
SEMI-CASSETTE
ARTICULATED ARM AWNING
1. The following tools are required:
– Percussion drilling machine with
– Masonry drill bit, Ø 10 mm, for mounting on concrete
– Masonry drill bit, Ø 12 mm, for mounting on stone walls
– Masonry drill bit, Ø 16 mm, for mounting on masonry
– Wood and HSS drill bit, Ø 6 mm, for mounting on wood
– Ratchet with extension and 13 mm respectively 17 mm socket
– Allen key (4, 5 and 10 mm)
– Open-end wrench (13 mm)
– Slotted screwdriver
– Cross-tip screwdriver No. 2
– Spirit level and string for the alignment
– Blind rivet pliers
18
MOUNTING INSTRUCTIONS HELIOSHADE CLASSIC AND SEMI-CASSETTE ARTICULATED ARM AWNING

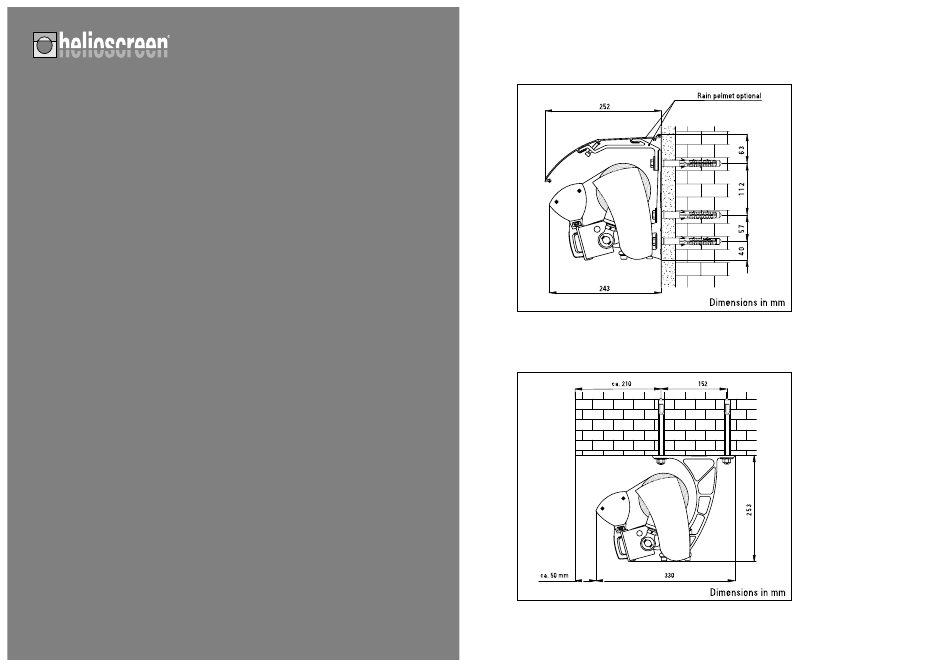

2. Mounting dimensions
Wall mounting with Classic rain covering
Ceiling mounting Classic
19
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Helioscreen HELIOSHADE CLASSIC
Summary of Contents for Helioscreen HELIOSHADE CLASSIC
- Page 1 MOUNTING INSTRUCTIONS HELIOSHADE CLASSIC AND SEMI-CASSETTE ARTICULATED ARM AWNING 2. Mounting dimensions MOUNTING INSTRUCTIONS: HELIOSHADE CLASSIC AND SEMI-CASSETTE ARTICULATED ARM AWNING Wall mounting with Classic rain covering 1. The following tools are required: – Percussion drilling machine with – Masonry drill bit, Ø 10 mm, for mounting on concrete –...
- Page 2 MOUNTING INSTRUCTIONS HELIOSHADE CLASSIC AND SEMI-CASSETTE ARTICULATED ARM AWNING Rafter mounting Classic Wall mounting Semi-Cassette Ceiling mounting Semi-Cassette If you plan to mount the awning on a ceiling or rafter, ensure that the front edge of the awning is located at least 50 mm behind the edge of the balcony or eaves gutter when you choose the position of the brackets (see drawing).
- Page 3 MOUNTING INSTRUCTIONS HELIOSHADE CLASSIC AND SEMI-CASSETTE ARTICULATED ARM AWNING 3. Determination of the mounting height for wall mounting applications 4. Bracket mounting position To determine the mounting height, consider the projection Determine the bracket positions according to the drawings below and mark them on the and the inclination of the awning ...
- Page 4 MOUNTING INSTRUCTIONS HELIOSHADE CLASSIC AND SEMI-CASSETTE ARTICULATED ARM AWNING Required number of brackets for Classic and Semi-Cassette 5. Drilling holes for the brackets Hold each bracket against the position determined for it and mark the bracket bore hole positions on the respective base material.
- Page 5 MOUNTING INSTRUCTIONS HELIOSHADE CLASSIC AND SEMI-CASSETTE ARTICULATED ARM AWNING 6. Attachment of the brackets 7. Fastening the awning Place the awning with the support tube in the brackets from the front (ensure your hands are clean!). – Loosely attach the two outer brackets and align any additional brackets exactly using a string.
- Page 6 MOUNTING INSTRUCTIONS HELIOSHADE CLASSIC AND SEMI-CASSETTE ARTICULATED ARM AWNING 8. Initial operation 9. Alignment of the arm inclination, adjustment of the angle of inclination 8.1 Hand crank 9.1 Hand crank – Extend the awning to check the parallel position of the arms.
- Page 7 MOUNTING INSTRUCTIONS HELIOSHADE CLASSIC AND SEMI-CASSETTE ARTICULATED ARM AWNING 10. Semi-Cassette – roof inclination 11. Mounting the rain covering In the event of a signifi cant change of the angle of inclination, it is necessary to adapt the inclination correspondingly so that the front cover element and the sleeve come together properly.
