V8 Vitrigraph Wall Mounted Stand
Assembly and Operating Manual
May 2024

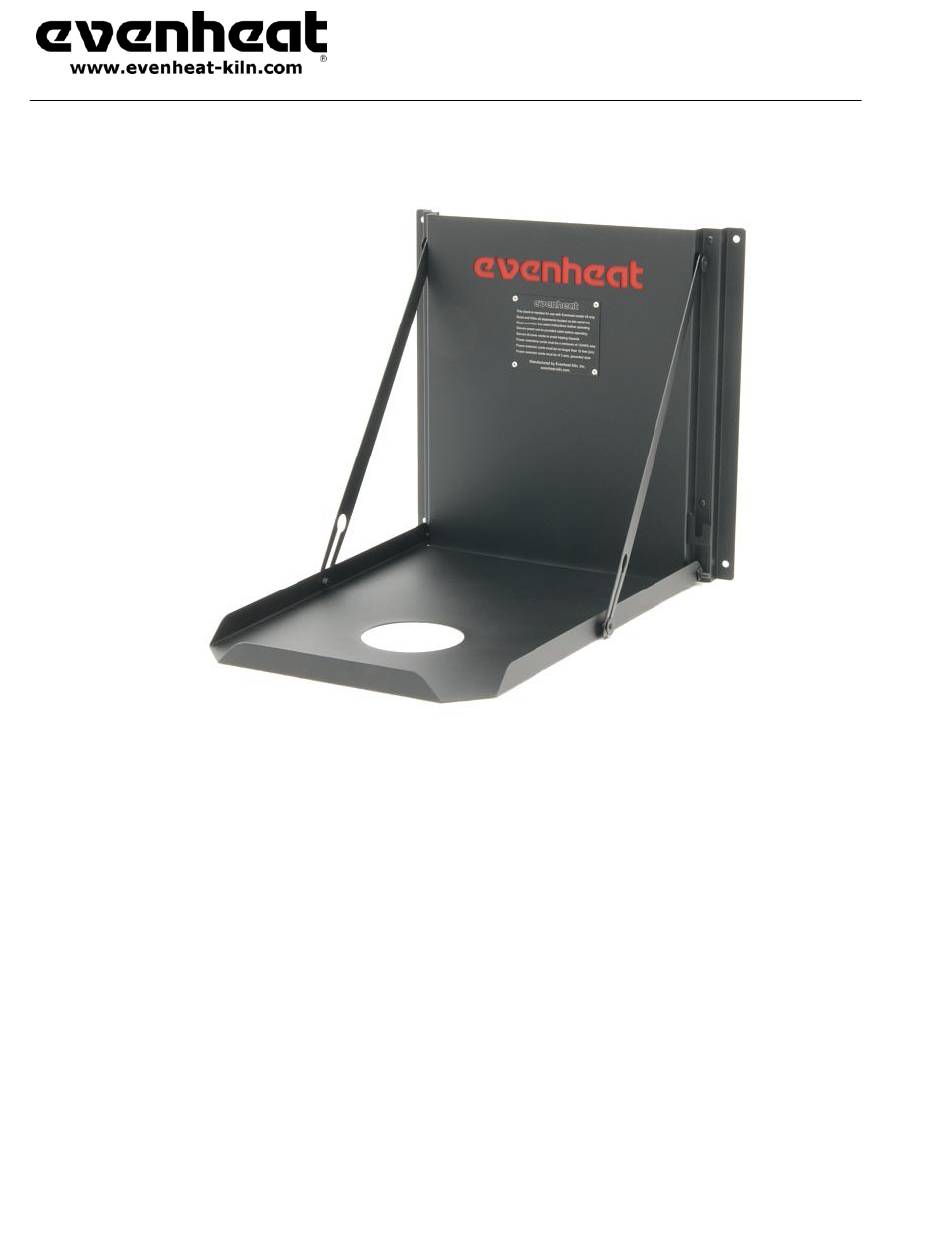

The V8 Vitrigraph wall mounted stand allows you to position your V8 Vitrigraph on a wall to provide the
working height you desire.
The V8 Vitrigraph wall mounted stand is secured to a wall surface using the included 1/4" x 2" lag screws.
Mounting holes are positioned 16" apart (left to right) to fit typical North American wall stud dimensions.
The V8 Vitrigraph wall mounted stand must be secured into wall studs using the ¼" x 2" lag screws provided.
Do not attempt to install the wall mounted stand in any manner that does not secure the wall stand directly
into the wall studs as mechanical failure may result.
Wall, floor and ceiling must be constructed of a non-combustible material.
The V8 Vitrigraph wall mounted stand may be positioned as high as 16" from the ceiling surface. This
measurement is taken from the top of the stand. Do not install closer than 16" to ceiling.
Page 1 of 11
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Evenheat Vitrigraph V8
Summary of Contents for Evenheat Vitrigraph V8
- Page 1 V8 Vitrigraph Wall Mounted Stand Assembly and Operating Manual May 2024 The V8 Vitrigraph wall mounted stand allows you to position your V8 Vitrigraph on a wall to provide the working height you desire. The V8 Vitrigraph wall mounted stand is secured to a wall surface using the included 1/4" x 2” lag screws. Mounting holes are positioned 16”...
- Page 2 V8 Vitrigraph Wall Mounted Stand Assembly and Operating Manual May 2024 Assembly Instructions Tools needed: Drill Drill Bit – 5/32” Stud Finder Measuring Tape Level 7/16” socket wrench T-20 Torx Wrench (included) Locate an area at your desired mounting location that includes 2 wall studs, 16” apart. A stud finder is a great tool to have for this purpose.
- Page 3 V8 Vitrigraph Wall Mounted Stand Assembly and Operating Manual May 2024 Place the mounting plate against the wall at the height you desire. The glass exit point will be roughly at the level of the bottom of the mounting plate Measure from the ceiling to the top of the mounting plate.
- Page 4 V8 Vitrigraph Wall Mounted Stand Assembly and Operating Manual May 2024 Mounting Plate attached firmly to your wall. Page 4 of 11...
- Page 5 V8 Vitrigraph Wall Mounted Stand Assembly and Operating Manual May 2024 Install the V8 kiln base to the mounting plate using the 1/4" hinge rod. To do so line up holes located in the V8 kiln base with holes in the mounting plate and insert rod. Push the rod all the way through the 4 holes until the bent portion of the hinge rod makes contact with the V8 kiln base and stops.
- Page 6 V8 Vitrigraph Wall Mounted Stand Assembly and Operating Manual May 2024 Page 6 of 11...
- Page 7 V8 Vitrigraph Wall Mounted Stand Assembly and Operating Manual May 2024 Install a speed-nut onto the un-bent end of the rod and push it on until it makes contact with the V8 kiln base. We have included an extra speed-nut in case you lose one. Page 7 of 11...
- Page 8 V8 Vitrigraph Wall Mounted Stand Assembly and Operating Manual May 2024 Rotate the V8 kiln base upwards and secure it in the horizontal position using the 2 support arms located on the mounting plate. Your V8 Vitrigraph wall mounted stand is now fully assembled, mounted and ready for use. Placing the V8 Kiln into the Stand Remove the firebrick kiln floor from the small metal base supplied with your kiln.
- Page 9 Place the V8 kiln lid onto the chamber. We prefer to have the handles positioned left and right. Your V8 Vitrigraph kiln is now installed properly in the stand. The V8 Vitrigraph wall mounted stand is intended for use with an Evenheat model V8 only. We do not guarantee fit, function or compatibility with other manufacturer models.
- Page 10 V8 Vitrigraph Wall Mounted Stand Assembly and Operating Manual May 2024 Stand Use When using the stand for vitrigraph work we highly recommend that you take advantage of the power cord catch. This catch, located on the mounting plate, positions the power cord to the rear which gets it out of the way of the molten glass and your physical movement.
- Page 11 V8 Vitrigraph Wall Mounted Stand Assembly and Operating Manual May 2024 The V8 Vitrigraph kiln may be powered using an extension cord with the following conditions: The extension cord must be #12AWG wire or larger. The extension cord may not be longer than 12’ (4m). The extension cord must be of the 3 wire, grounded style.
